PASCAL
®
Synthesis Ophthalmic Scanning Laser Systems Page 38 of 141
88292-EN, Rev D

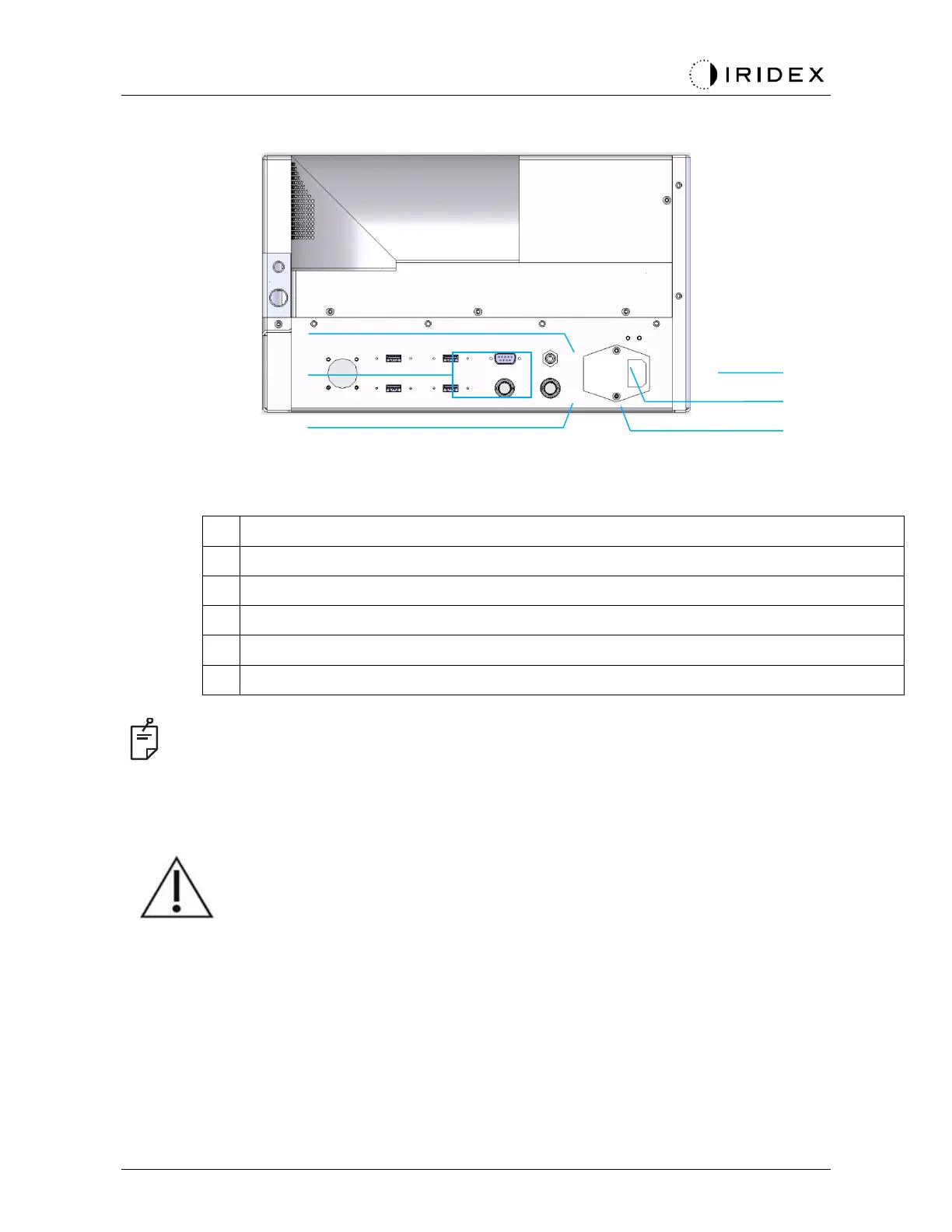

Rear Panel Connections
A
LCD control panel receptacle
B
USB ports—3D Controller, and touch screen monitor
C
Monitor power receptacle
D
Footswitch receptacle
E
Door interlock receptacle—must be inserted for laser to operate
F
Main power cable receptacle
NOTE
If using an external door interlock, a qualified electrical professional must install the external
switch, and the total length of the cable should not exceed 5 m (16 ft.).
CAUTION
USB Ports are not compatible with wireless devices. Use of the USB Ports with a wireless
device cannot guarantee the performance of the wireless device or the Pascal Synthesis
System.
B
D
C
A
F
E
