PASCAL
®
Synthesis Ophthalmic Scanning Laser Systems Page 72 of 141
88292-EN, Rev D
Array
Primary pattern
Secondary pattern
15ms EpM
Array
See the section “Posterior Pattern Description/Pattern Parameters” for the detailed
information on the Array pattern.

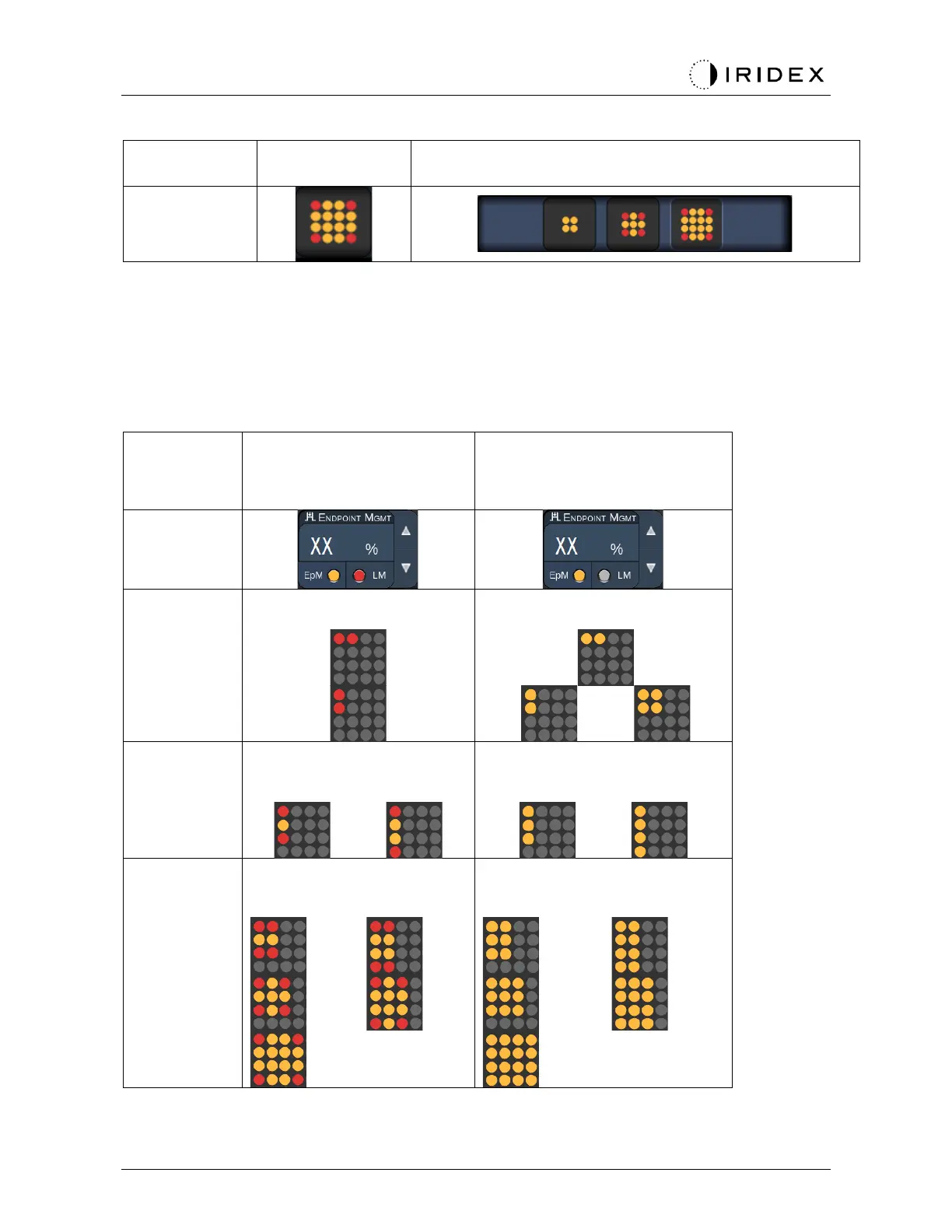

Endpoint Management Features
Pattern
Type
Endpoint Management
On/ Landmark On
Endpoint Management On/
Landmark Off
1x2,
All full-power spots (red-
100%)
All endpoint spots (orange-xx
%)
2x1,
2x2
Single-
column or
single row
arrays with at
least 3 spots
Two full-power spots (red-
100%); remaining endpoint
spots (orange-xx %)
All endpoint spots (orange-xx
%)
Four full-power spots (red-
100%); remaining endpoint
spots (orange-xx %)
All endpoint spots (orange-xx
%)
All other
arrays
