Product Manual Page 21 (76)
5 Installation, electrical connection and operation
5.1 Device design

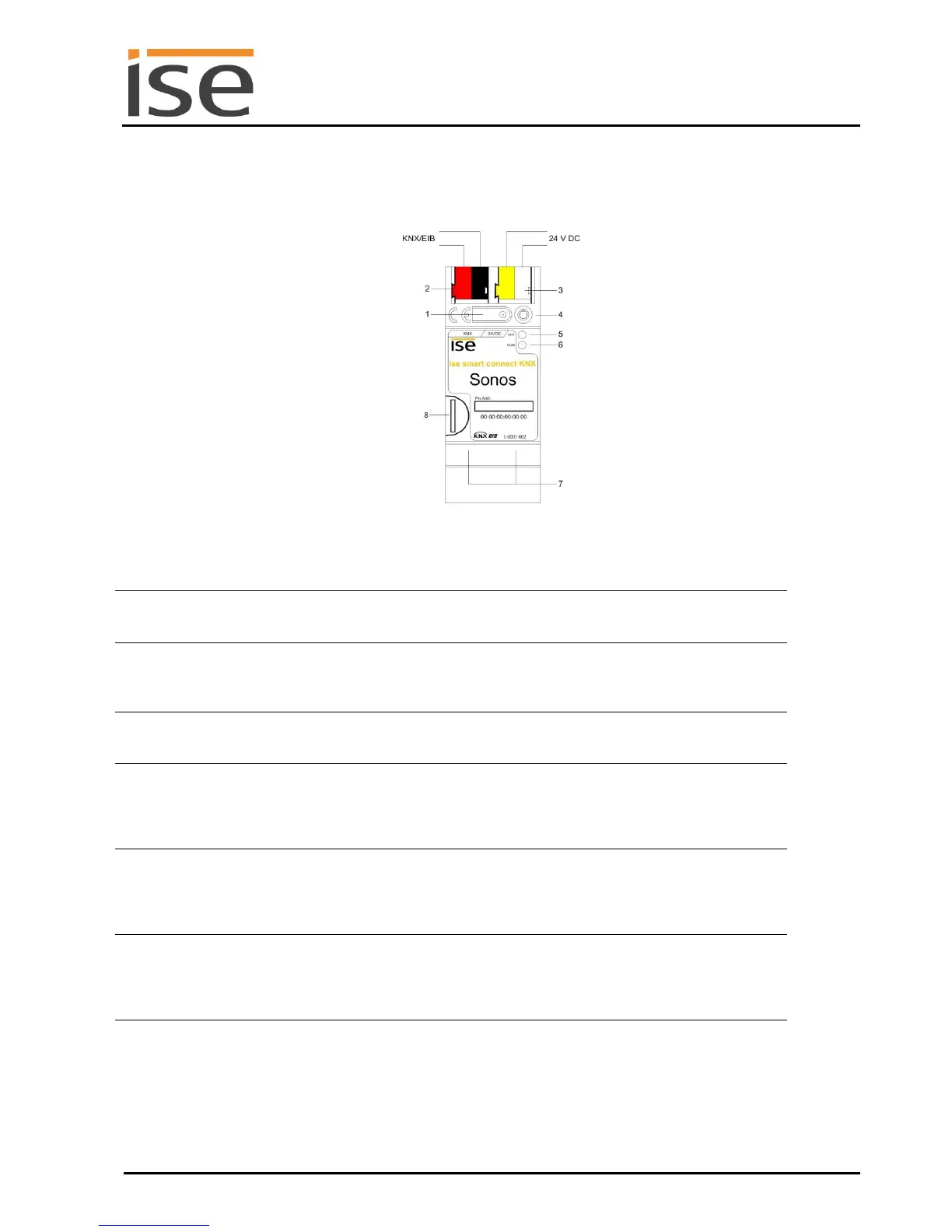

Figure 1: ise smart connect KNX Sonos.
1
Programming button
for KNX
Switches the device to the ETS programming mode or vice versa.
2
KNX connection
(twisted pair)
On left: (+ / red)
On right: (– / black)
3
Connection for
power supply
DC 24–30 V, 2 W (at 24 V)
On left: (+ / yellow)
On right: (– / white)
4
KNX programming
LED (red)
Red: Device is in ETS programming mode
Yellow: For start or diagnosis code, see 7.2.1 / 7.2.2
5
LED APP (green)
Green: Normal operation
Off/
Flashing: For start or diagnosis code, see 7.2.1 / 7.2.2
6
LED COM (yellow)
Yellow: Normal operation (brief dark phases indicate KNX tele-
gram traffic)
Off/
Flashing: For start or diagnosis codes, see 7.2.1 / 7.2.2
7
Ethernet connection
LED 10/100 speed (green)
On: 100 Mbit/s
Off: 10 Mbit/s
LED link/ACT (orange)
On: Connection to IP network
Off: No connection
Flashing: Data reception on IP
8
MicroSD card holder
As optional network authorisation (network drive) for audio files for
playback by Sonos components
Media size: Up to 32 GB microSDHC
Formatting: FAT32
Dimensions:
Width (W):
36 mm (2 HP)
Height (H):
90 mm
Depth (D):
74 mm
