4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 61
2) Fit the gasket rear lipped portion into the No.5 groove.
Be absolutely sure that the lipped portion is fitted
snugly into the groove.
3) Install the oil pan to the cylinder body.
• Tighten the oil pan bolts to the specified torque.
Oil Pan Bolts Torque N∙m (kg∙m/lb∙ft)
19 (1.9/14)
4) Install the space rubber and stiffener (right & left side)
then tighten bolts to the specified torque.
Engine Body Side Stiffener Bolts Torque N∙m (kg∙m/lb∙ft)
37 (3.8/27)
Clutch Housing Side Stiffener Bolts TorqueN∙m (kg∙m/lb∙ft)
78 (8.0/58)
5) Install the exhaust pipe bracket.
6) Install the support rubber and tighten nuts to the
specified torque.
Support Rubber Nut Torque N∙m (kg∙m/lb∙ft)
40 (4.1/30)
7) Install the vacuum pump oil hose
!
to oil pan.

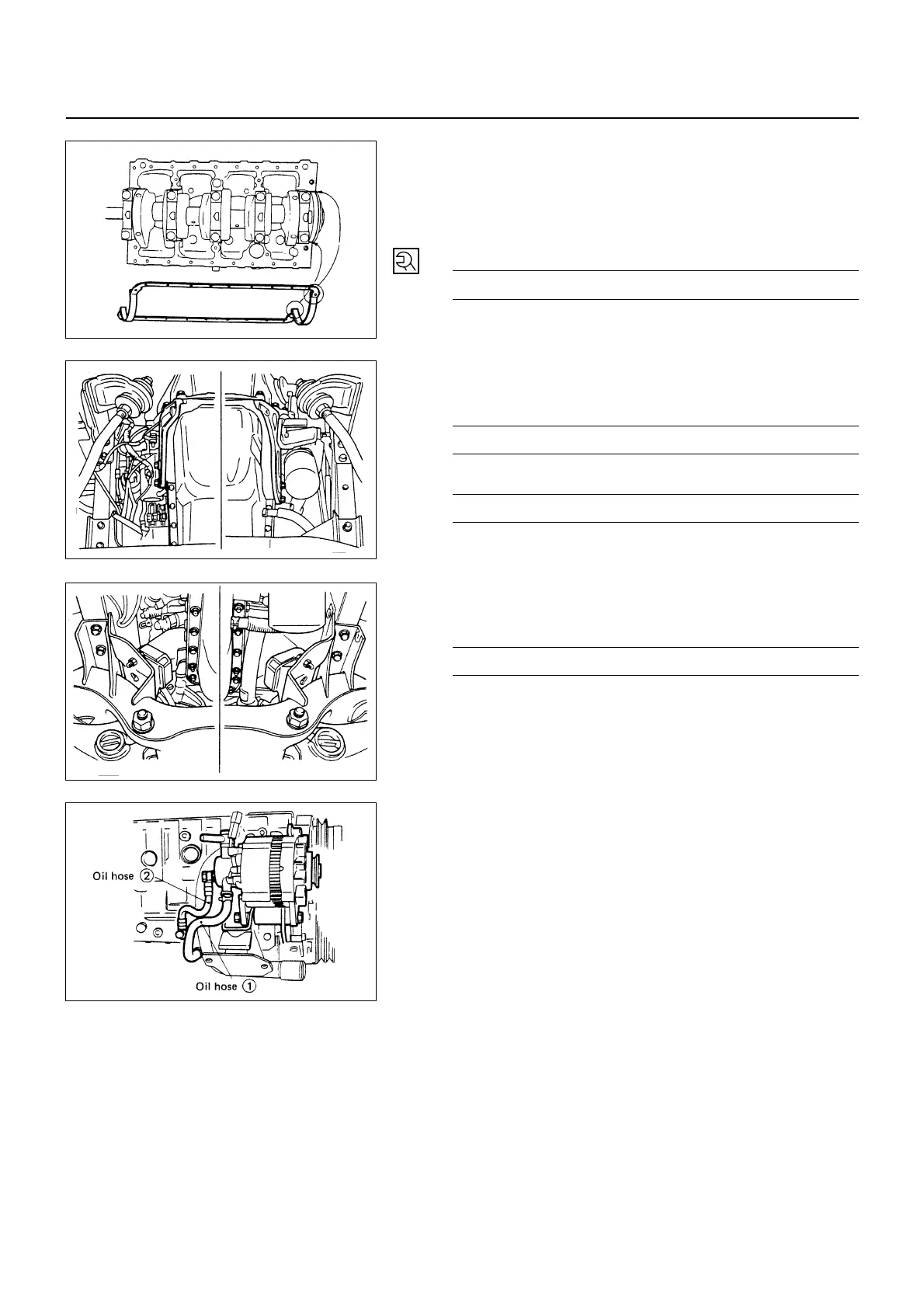

6A1-60-1.tif
