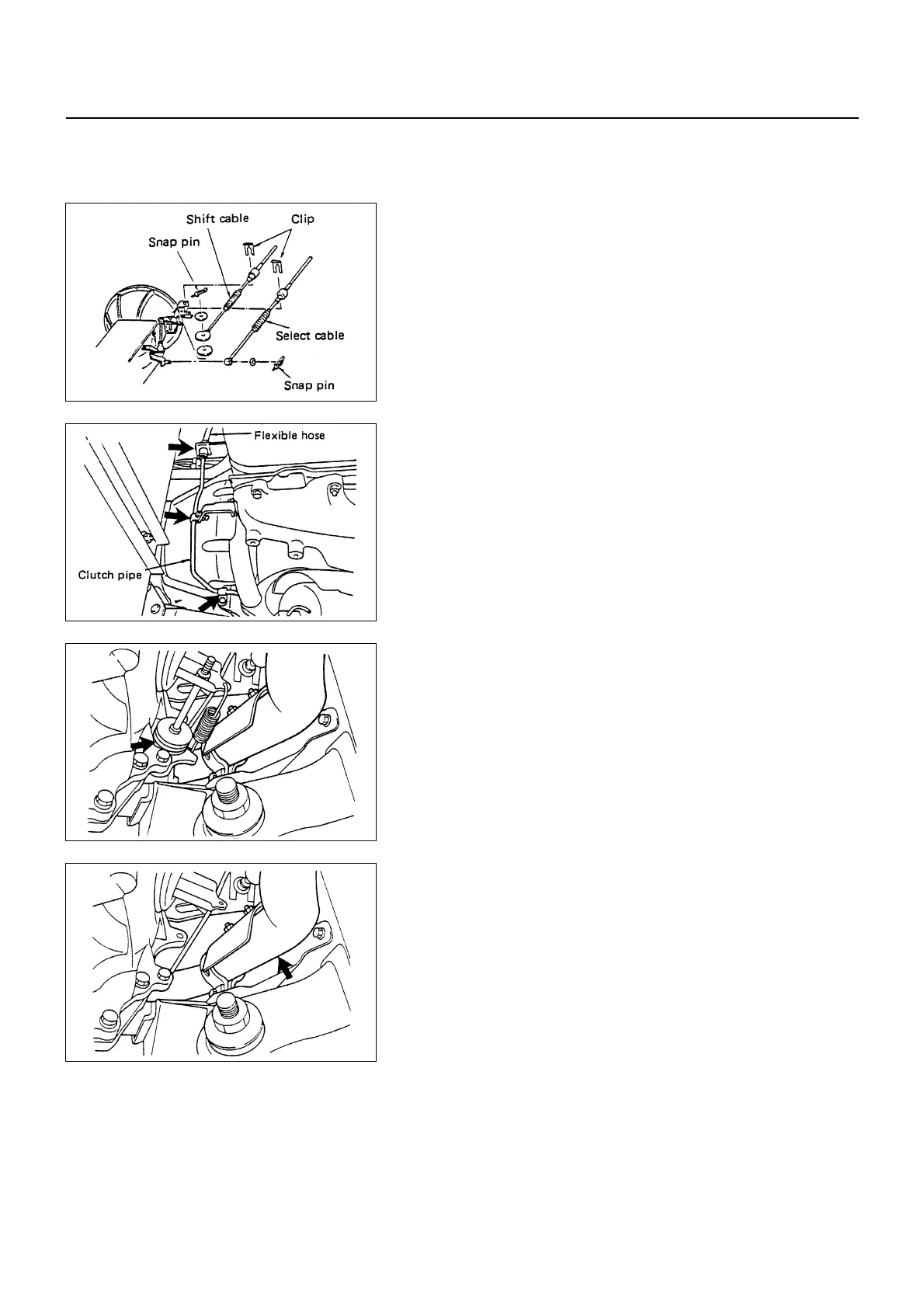

4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 77

Wiring Connector

• Disconnect the wiring connectors from the car speed

sensor, the neutral switch and the back-up light switch.

Shift Cable and Select Cable

• Disconnect the shift cable and select cable on the

transmission side.

Clutch Slave Cylinder

• Remove the clutch pipe fixing clips and the clip

bracket (Right hand drive models only).

• Remove the slave cylinder assembly with the flexible

hose attached, and then tie it to the frame so that it

does not interface with servicing work.

Exhaust Brake Assembly

Front Exhaust Pipe

6A1-77-1.tif

6A1-77-2.tif

6A1-77-3.tif

6A1-77-4.tif
