6A1 – 78 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE
(
Transmission Assembly
NOTE:
The exhaust pipe bracket, the gear control bracket
and the clips are sometimes installed in the wrong
position or direction confusedly. To prevent incorrect
installation of these parts, put a correct installation
mark on them.
• Support the transmission with mission jack.
CAUTION:
To prevent the falling of the transmission, tie it firmly
to the jack with a chain or belt.
Do not allow transmission to hang unsupported from
clutch. Damage to the clutch assembly will result.
• Remove the nuts of the transmission mounting bracket
on the crossmember side.
• Engine and transmission angles may need to be
adjusted for removal.
• Hold the rear section of the engine by the jack or hoist.
CAUTION:
When lifting the engine by the jack, use wood blockes
to prevent any possible damage to the oil pan.
• Remove transmission fastening bolts.
• Pull out the transmission assembly rearward.
)

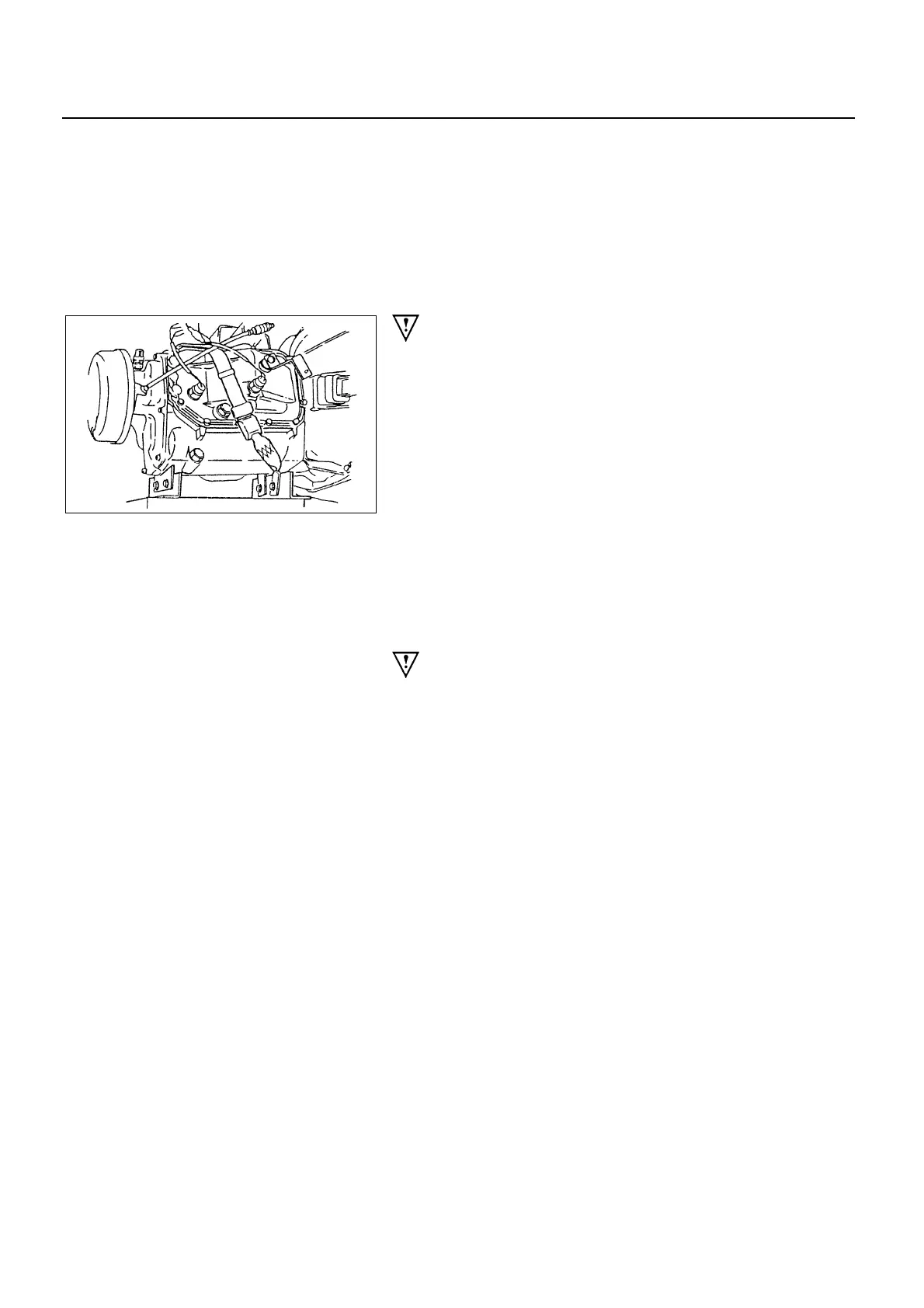

Mounting Bracket
6A1-78-1.tif
