4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 79
2) Clutch
• Raise vehicle and support with suitable safety stands.
CAUTION:
Do not let clutch fluid remain on a painted surface,
Wash it off immediately.
!
Pressure Plate Assembly
"
Driven Plate Assembly
• Use the pilot aligner to prevent the driven plate
assembly from falling free.
Pilot Aligner: 5-5825-3001-0
• Mark the flywheel and pressure plate lug for alignment
when installing.
• Loosen the pressure plate assembly fixing bolts.
2. Flywheel
3. Rear Oil Seal
• With the oil seal pushed in deep, install the special tool
as shown in the illustration to remove the oil seal.
• Rear oil seal Remove: 5-8840-2360-0
NOTE:
Take care not to damage the crankshaft or oil seal
retainer when removing oil seal.

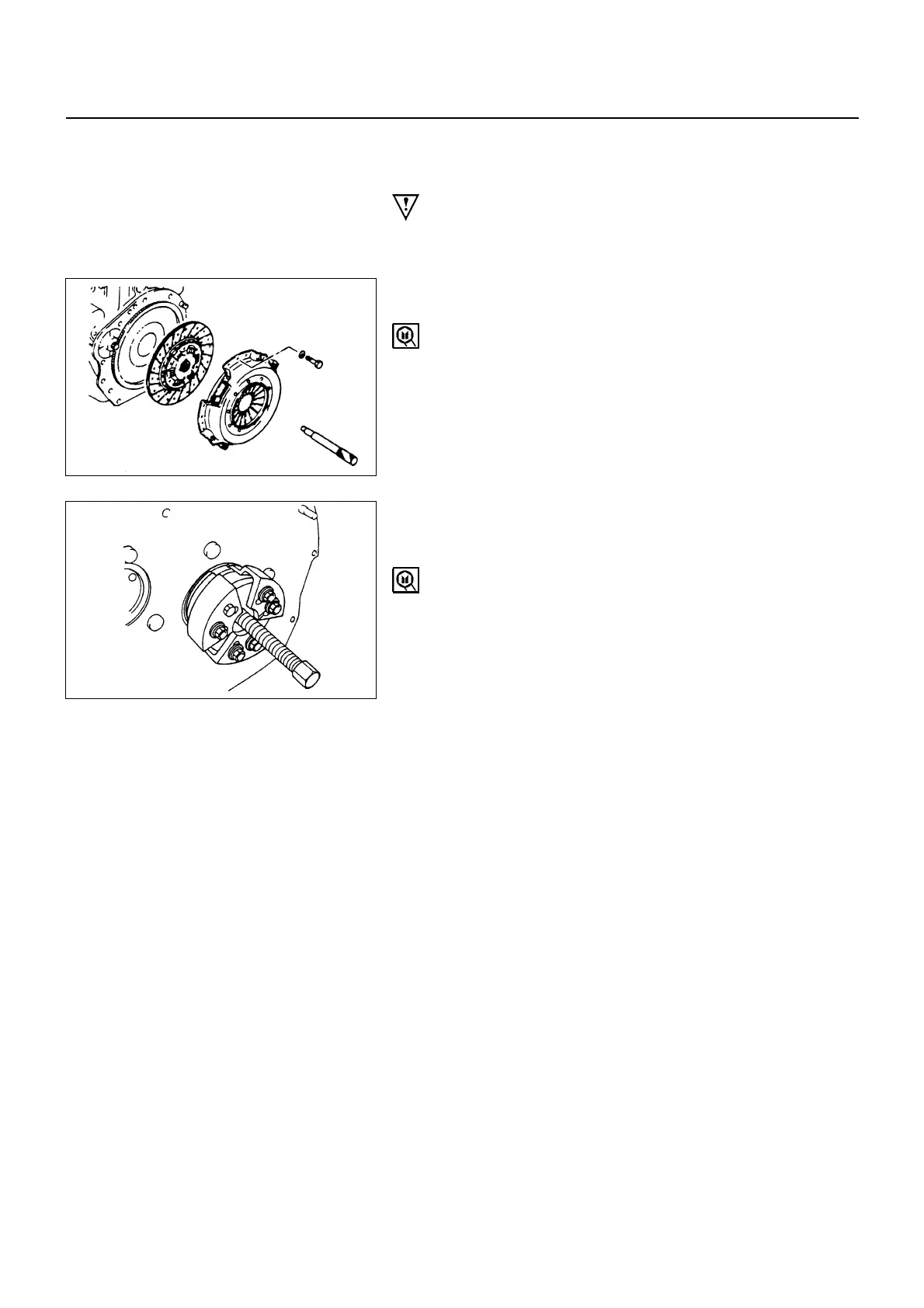

6A1-79-1.tif
6A1-79-2.tif
