ITW Alpine ALS 4.0 XE User Manual

7
ALS 4.0 XE
PRODUCT MANUAL
EN

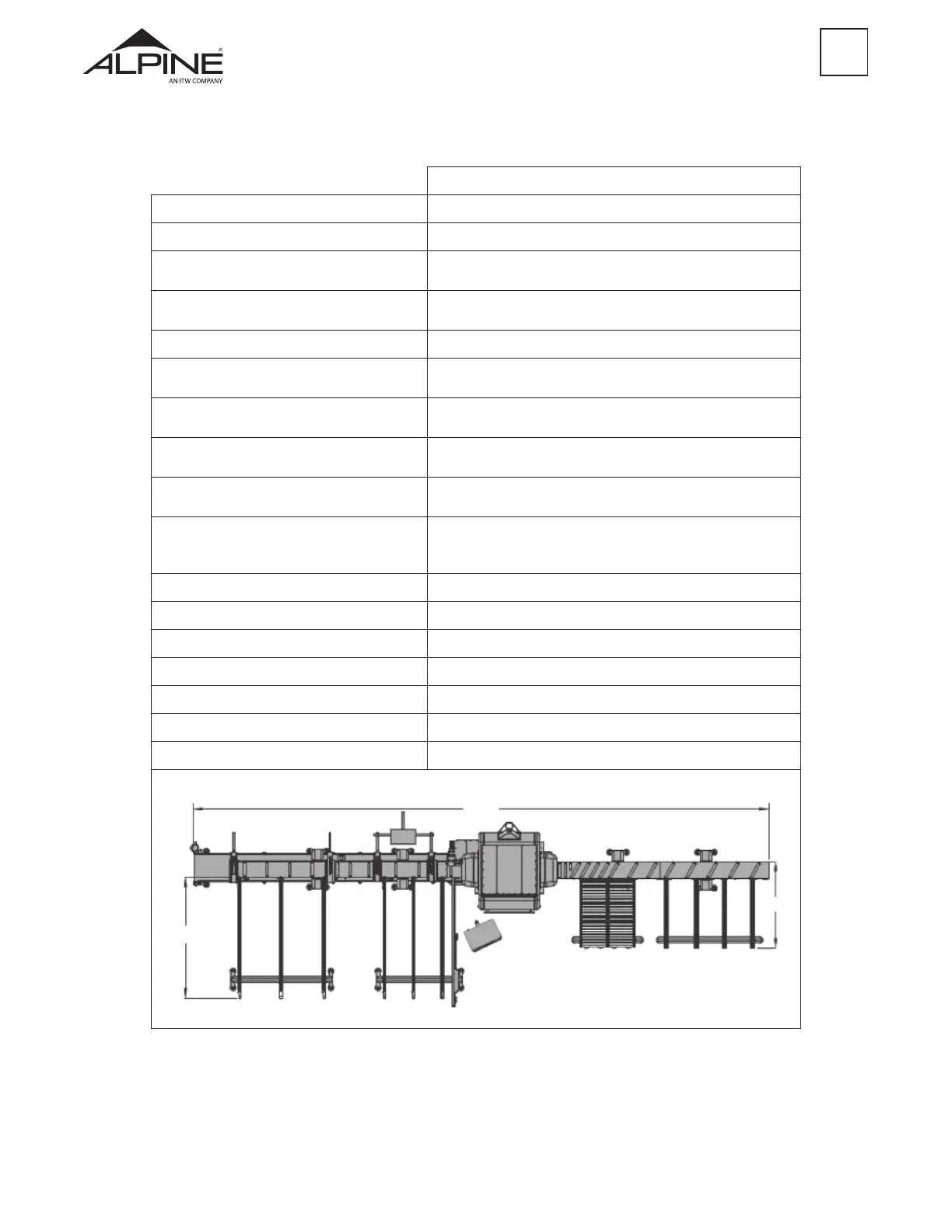

1.2.2 Equipment Specications
High Performance (H/HB)
Saw Blade Diameter Custom 20.5”
Spindle Motor (S-axis) Max RPM 2800 rpm
Infeed (L1-axis)
Accuracy
Max Speed
±1/16”
160 in/sec
Outfeed (L2-axis)
Accuracy
Max Speed
±1/16”
160 in/sec
Translation Cutting (L1-T1) Max Speed 28 in/sec
Angle (A-axis)
Travel
Accuracy
-0° to +270°
±0.05°
Bevel (optional) (B-axis)
Travel
Accuracy
5° (bevel) to 70° (very sharp bevel)
±0.05°
Traverse (T-axis)
Travel
Accuracy
-10” to +14”
0” references the fence
Vertical (Z-axis)
Travel
Max Speed
7 ½”
13 in/sec
Controller
PC
Monitor
Communications
Industrial PC w/ Windows 7 Professional Operating System
22” at panel
Ethernet
Operating Temperature 41 to 104°F
Humidity 10-95%, non-condensing
Max Altitude 6500 ft.
Shipping Weight 3500 lbs
Foundation Requirements ≥4” thick
Voltage Draw
480VAC 3PH 6
0A,WYE, 60 Hz/FLA 48A@460 VAC
Air Draw 25 CFM @100 Psi
Footprint
8’-11”
6’-4”
42’-7”
*ALS 4.0 HB Model shown with optional automated infeed
