Operation
Drive Controls, Switches and Instruments
73 73
9811/9950-1
Cab Interior Light
T2-020

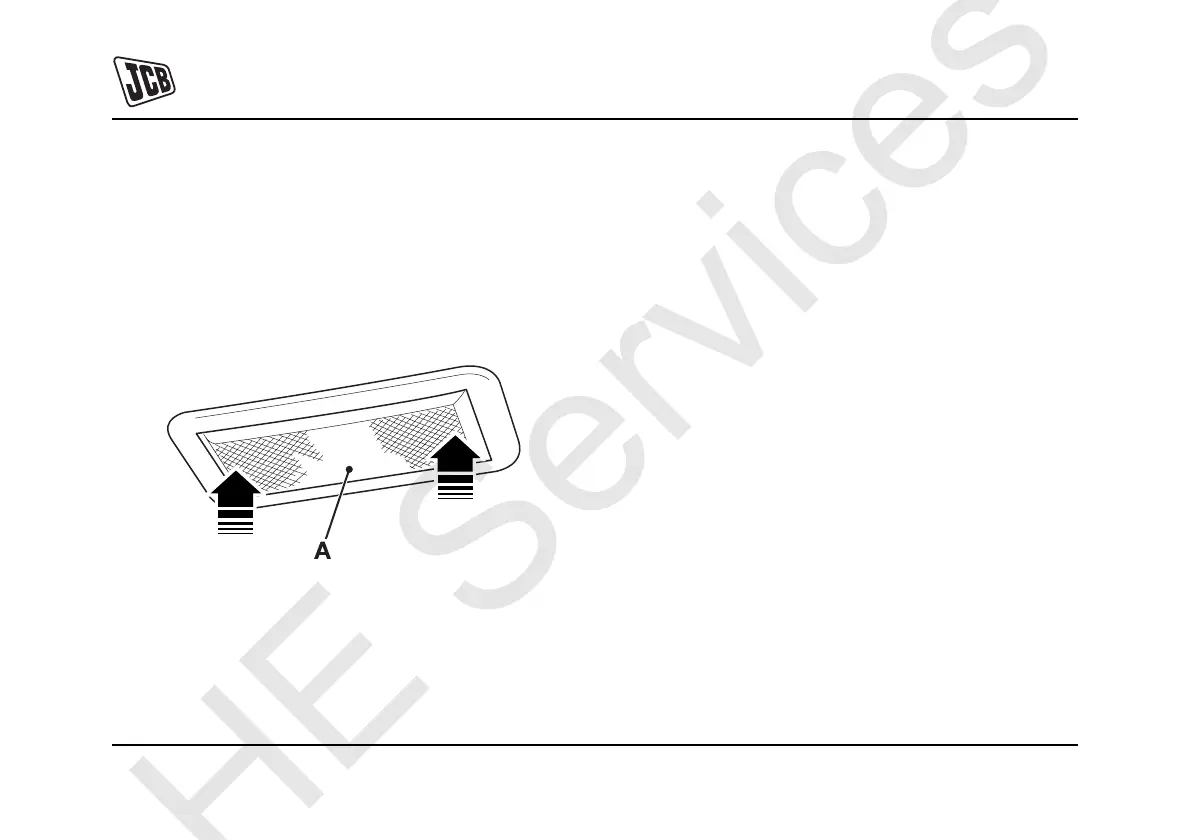

Press either end of the light unit A to switch on the cab
interior light. Pressing the other end will switch the light off.
Make sure the light is turned off when you intend to leave
the machine for a long period of time.
C007130-1
Fig 28.
Auxiliary Power Socket
The socket X supplies a 12 Volt DC power supply to
electrical accessories (from the battery). Only connect
items which are compatible with the power rating of the
socket (Refer to Electrical System, Fuses) and have the
correct plug.
Always operate the engine during prolonged use of
electrical accessories, otherwise the battery can
discharge.
Make sure that the socket cap is closed when the socket is
not in use.
