Section F - Transmission
Transaxle
Differential Lock Lever Arm
F-11 F-11
9803/9390-2
Transaxle
Differential Lock Lever Arm
Note: Also refer to Section ‘D’ Controls - ‘Differential
Lock’.
Dismantling
Note: If the transaxle has been removed from the vehicle,
place it in a suitable stand in the upright position as shown.
1 Remove the R-clip A, pivot pin B and the lever arm C.
2 Remove the two screws D and the bracket E.
3 If necessary, remove and discard the oil seal F, after
first draining the transaxle oil.
Assembly
Use new seals and washers as necessary.
1 Lubricate the new seal F with suitable grease and
install into its recess in the housing G.
2 Replacement is the reverse of removal.
Note: If the transaxle oil has been drained, remember to
re-fill, see Section 3 - Routine Maintenance.

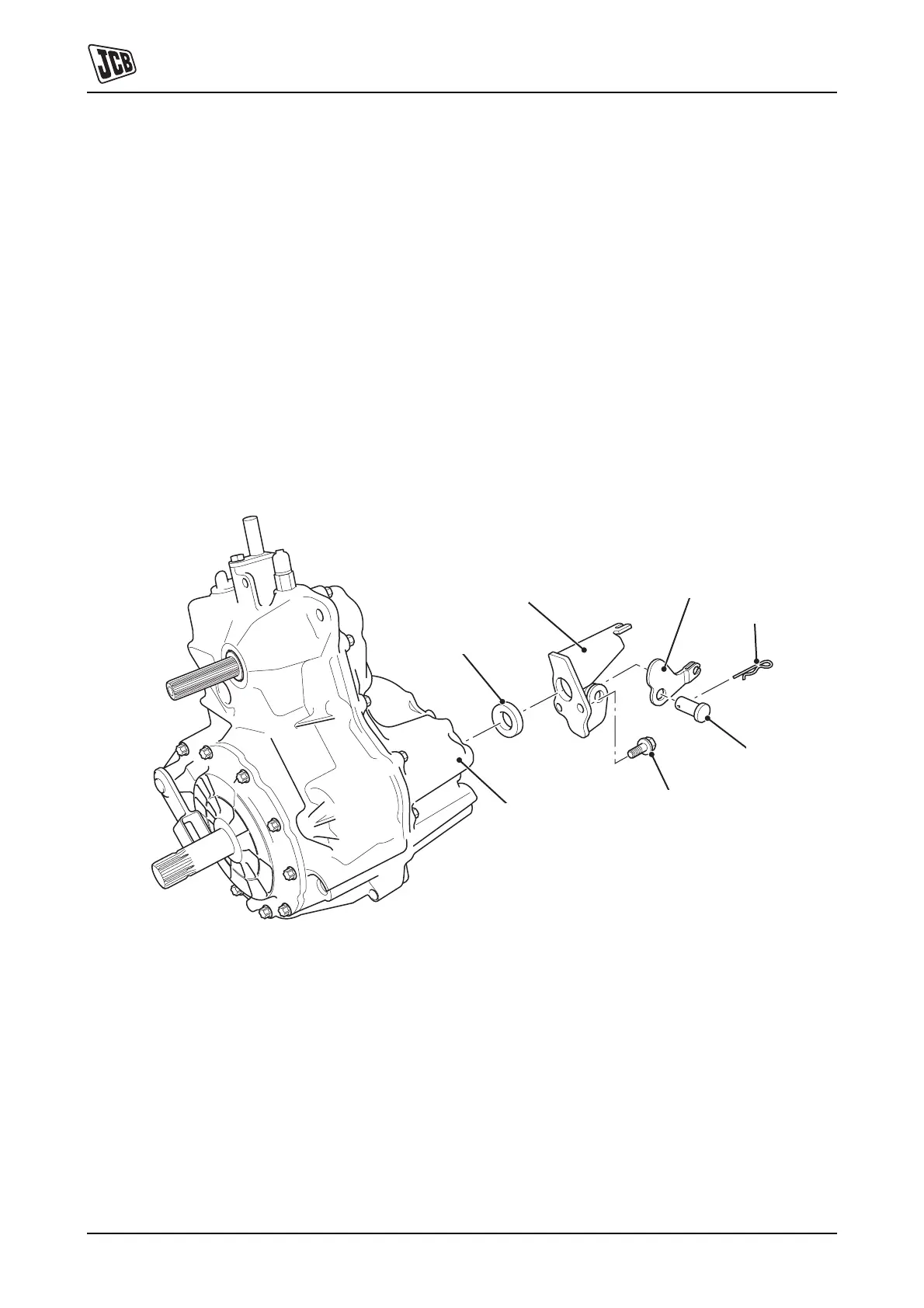

Fig 1.
C026250
A
C
B
D
E
F
G
