Section 3 - Maintenance
Routine Maintenance
Transmission
3-28 3-28
9803/9390-2
Transmission
Checking the Transaxle Oil Level
1 Park the machine on firm, level ground. Engage the
park brake. Stop the engine.
2 Raise the load bay.

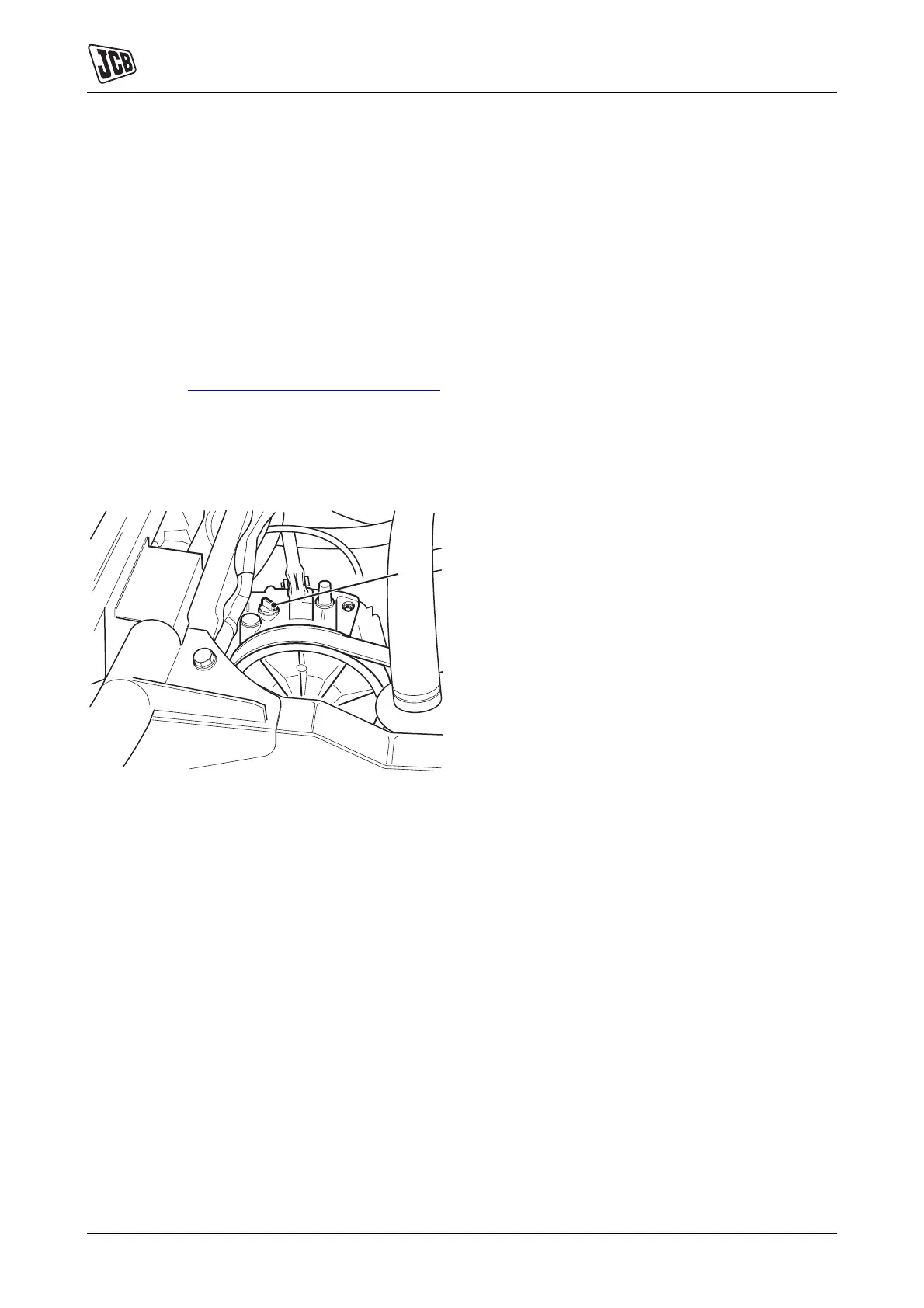

3 Remove dipstick 17-1, wipe it clean then screw it fully
back into the transaxle case. Remove the dipstick
again and check the level, which should be within the
hatched area. Top up if required through the dipstick
aperture, (K
Lubricants and Capacities ( T 3-8))
for recommended oil.
4 After topping up, run the engine for 1 minute, then
stop the engine and allow to stand for 2 minutes
before re-checking the level.
Fig 17.
1
