Section 3 - Maintenance
Routine Maintenance
Lubricating the Drive Chain
3-14 3-14
9803/9390-2
Lubricating the Drive Chain
1 Park the machine on firm, level ground and stop the
engine. If the vehicle has a manually operated load
bay, remove the starter key.
2 Raise the load bay. If your vehicle has an electric
tipper, ensure that the starter key is removed.
3 Apply lubricant K
Lubricants and
Capacities ( T 3-8) to the drive chain 4-A on each
side of the machine. Make sure that the complete
length of each chain is lubricated.

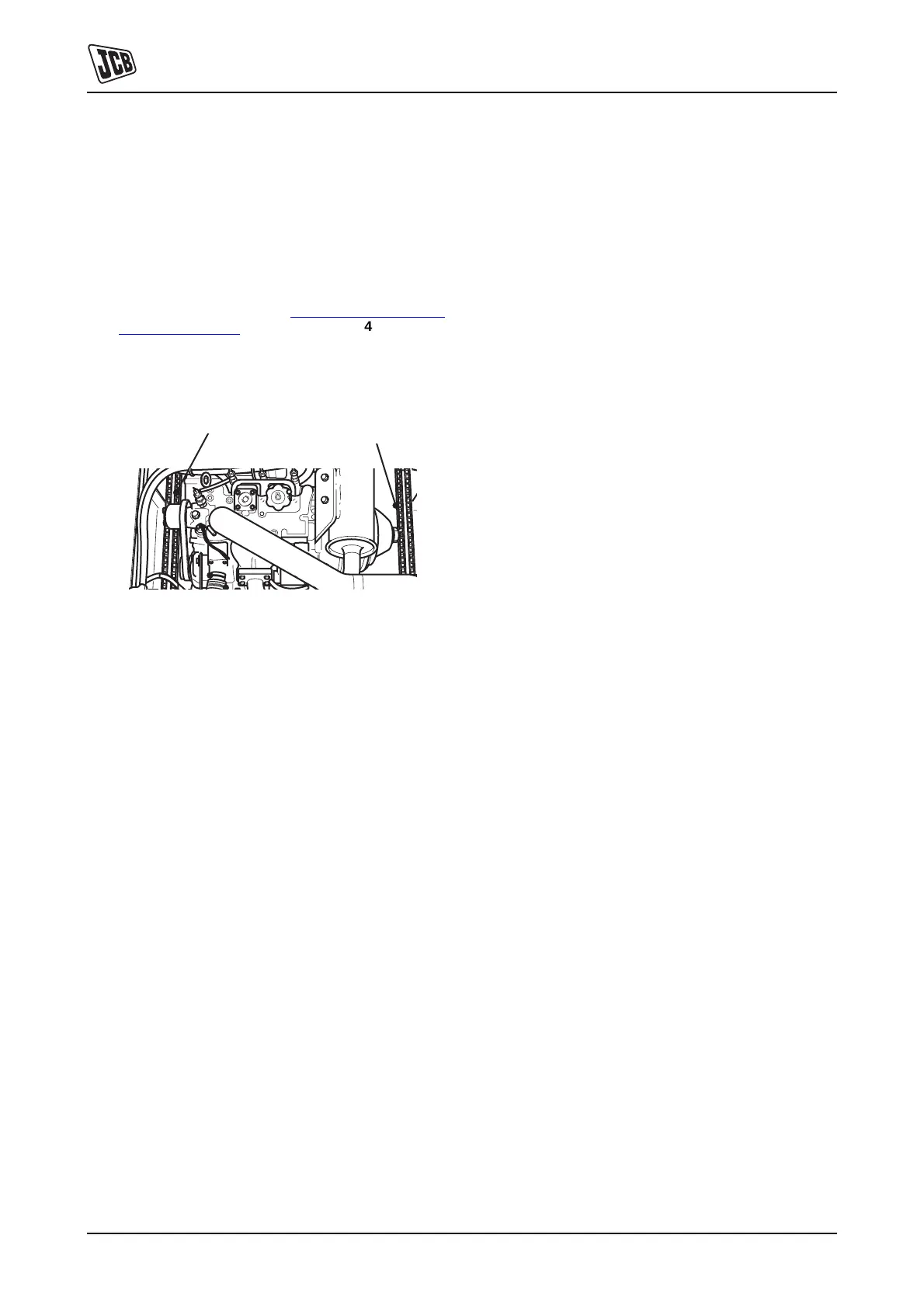

Fig 4.
A
