Section F - Transmission
Axles
Removal and Replacement
F-16 F-16
9803/9390-2

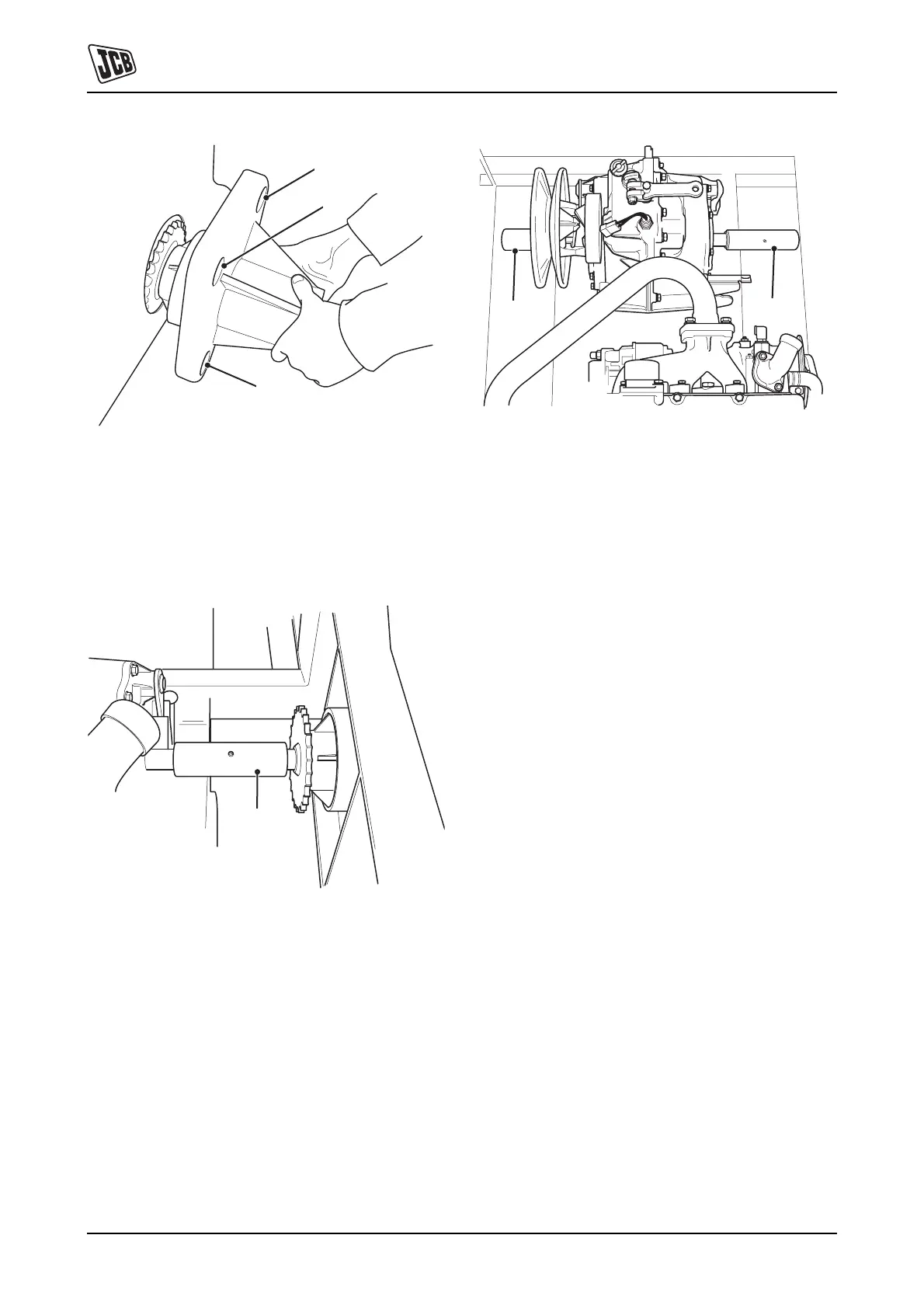

Fig 3.
Important: Ensure that there is end float in the couplings
after assembly. Transaxle and front axles must be in-line to
ensure this end float is available.
Note: Thoroughly grease the couplings after assembly,
see Section 3 - Routine Maintenance.
Fig 4.
Fig 5.
7 Fit the drive chains to the axle sprockets.
8 Adjust the chain tensioning bolts 2-F until the chain
tension is correct, see Section 3 - Routine
Maintenance.
9 The rear axle bolts 2-E can now be tightened to 74
Nm (55 lbf ft).
10 The wheels can now be fitted if required.
C006210
Y
Y
Y
C006200
G
C006220
H
G
To Next Page
