Section A - Option Equipment
Optional Equipment
Roll Over Protection Structure (ROPS)
A-2 A-2
9803/9390-2
Roll Over Protection Structure (ROPS)
Removal and Replacement
!MWARNING
You could be killed or seriously injured if you operate
a machine with a damaged or missing ROPS/FOPS. If
the Roll Over Protection Structure (ROPS)/Falling
Objects Protection Structure (FOPS) has been in an
accident, do not use the machine until the structure
has been renewed. Modifications and repairs that are
not approved by the manufacturer may be dangerous
and will invalidate the ROPS/FOPS certification.
INT-2-1-9_6

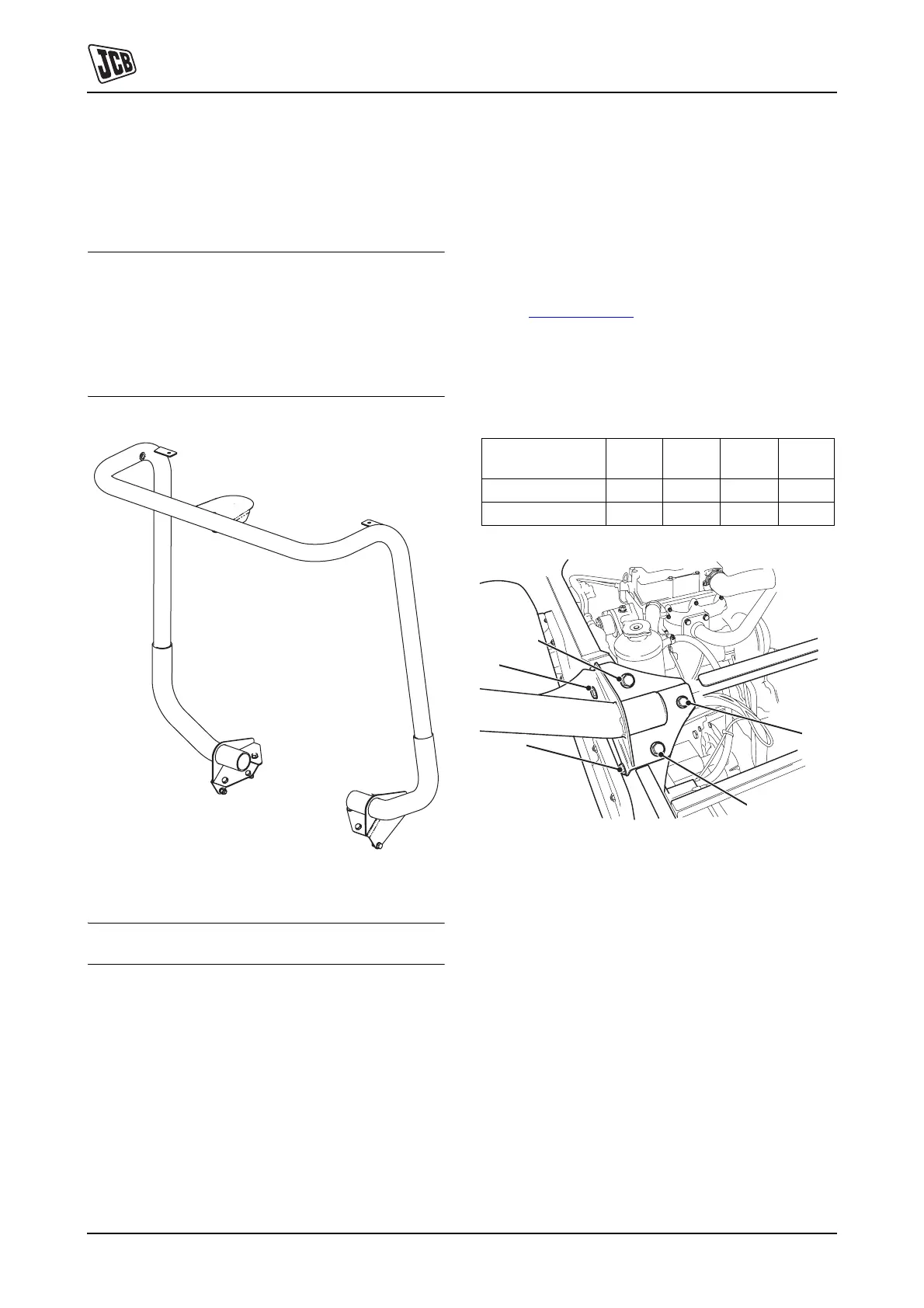

Fig 2.
!MWARNING
This component is heavy. It must only be removed or
handled using a suitable lifting method and device.
BF-4-1_1
Access to the ROPS mounting bolts is obtained by raising
the load bay. Ensure that the load bay is safely supported
while working beneath it - refer to the Handbook.
1 Support the weight of the ROPS.
2 Remove the eight M12 bolts A and the two M10 bolts
B, K
Fig 3. ( T A-2)
3 Installation is the reverse of removal.
Important: When replacing, correctly torque tighten the
bolts:
Table 1. Torque Settings
Fig 3.
C025460
Item Qty. Bolt
Grade
Nm lbf ft
A (Bolt, M12) 8 74 55
B (Bolt, M10) 2 43 32
A
A
A
A
