Section B - Body and Framework
B-3 B-3
9803/9390-2
Body Panels and Covers
Centre Console
Removal and Replacement
1 Park the machine on firm level ground.
2 Unscrew and remove the control lever knobs.
3 Rotate the seats forward to gain improved access to
the console fixing screws.
4 Remove the six screws 1-A and remove the centre
console.

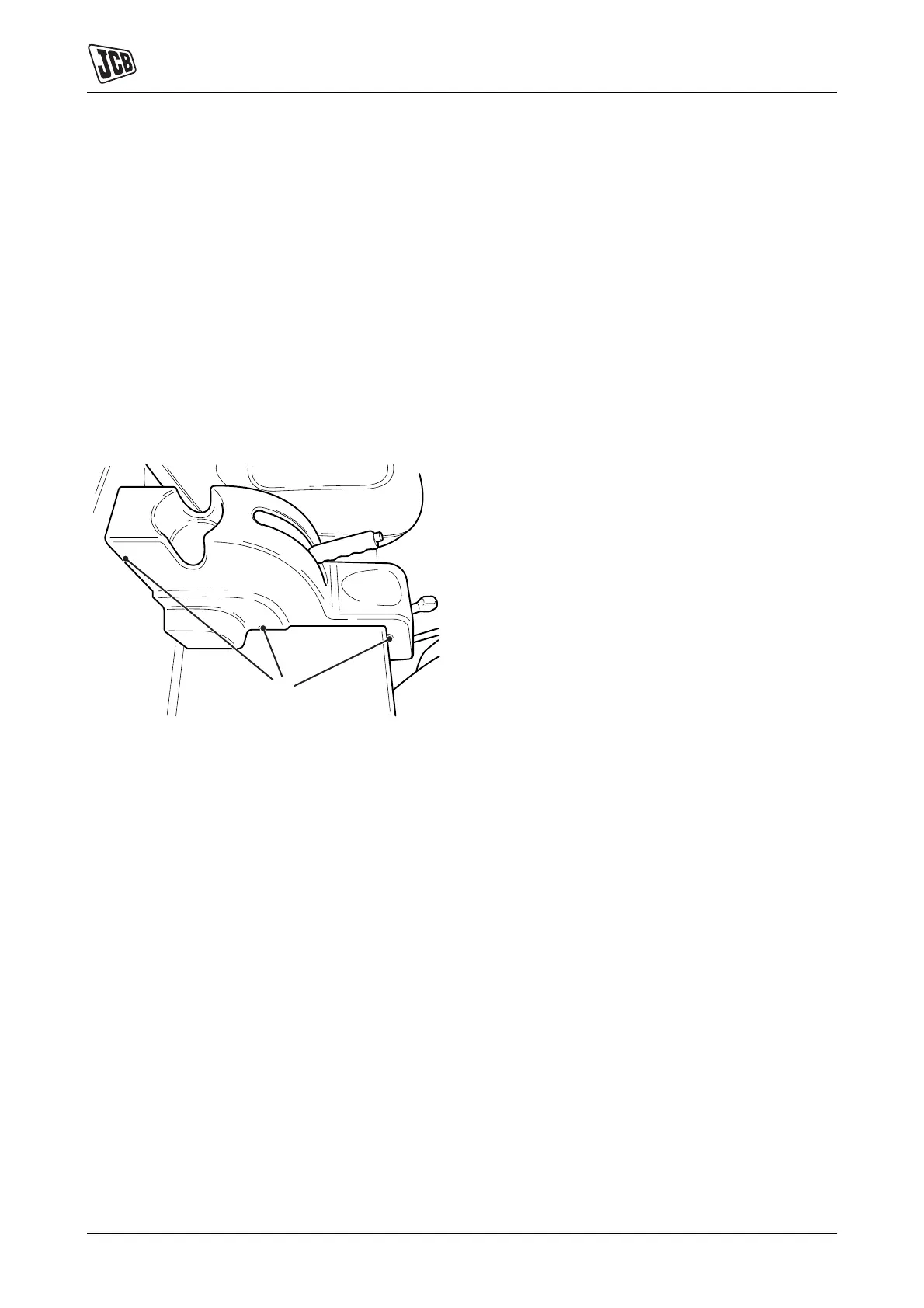

Fig 1.
A
