100 IFC-3030 Programming Manual — P/N 52025:C 08/05/2005
Releasing Applications Abort Switches
How to Program an Abort Switch
The following contains information needed to program an Abort Switch for a monitor module.
Description A monitor module, connected to a UL-listed abort station (such as the Notifier
NBG-12LRA), used to monitor an abort switch for a releasing zone. Multiple
monitor modules can be programmed with the
ABORT SWITCH Type Code. They
will work like multiple conventional abort switches on a conventional zone.
Program Select a monitor module for use as an Abort Switch. While programming this
module (refer to “Module Point” on page 43 for instructions),
1. Select the
ABORT SWITCH Type Code.
2. Enter the number of the desired releasing zone into the module’s zone map.
The releasing zone must be fully programmed, with the Abort Switch type
code included (refer to “Releasing Zone” on page 51).
Example
A programming example of a monitor module programmed as an Abort Switch for Releasing
Zone ZR05.

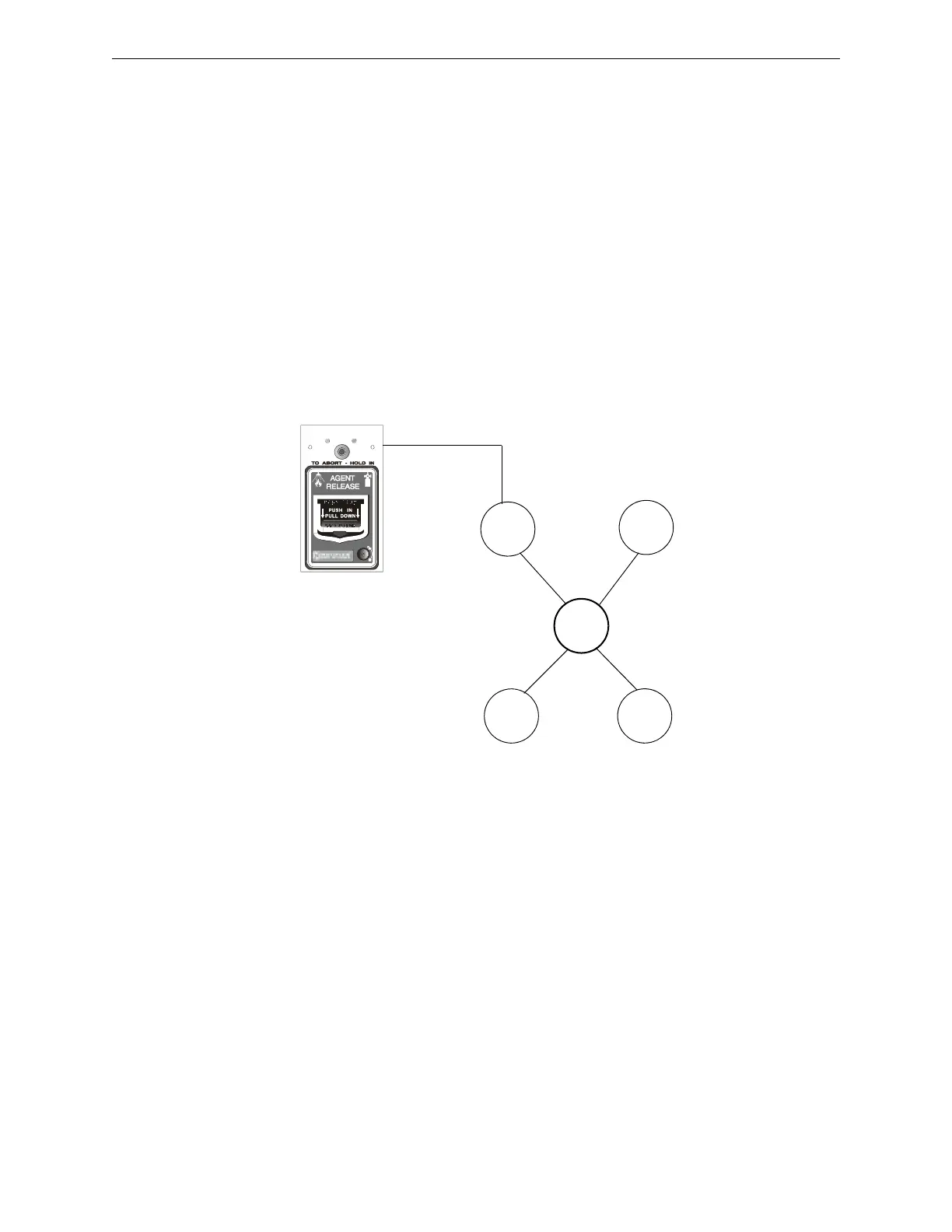

Figure B.9 Monitor Module Configured as an Abort Switch
SYSTEM
NORMAL
SYSTEM
ACTIVATED
Detector
R05
NBG-12LRA
station with
Abort Switch
Monitor
Module
Type Code
ABORT SWITCH
SLC
output
module
SLC
output
module
