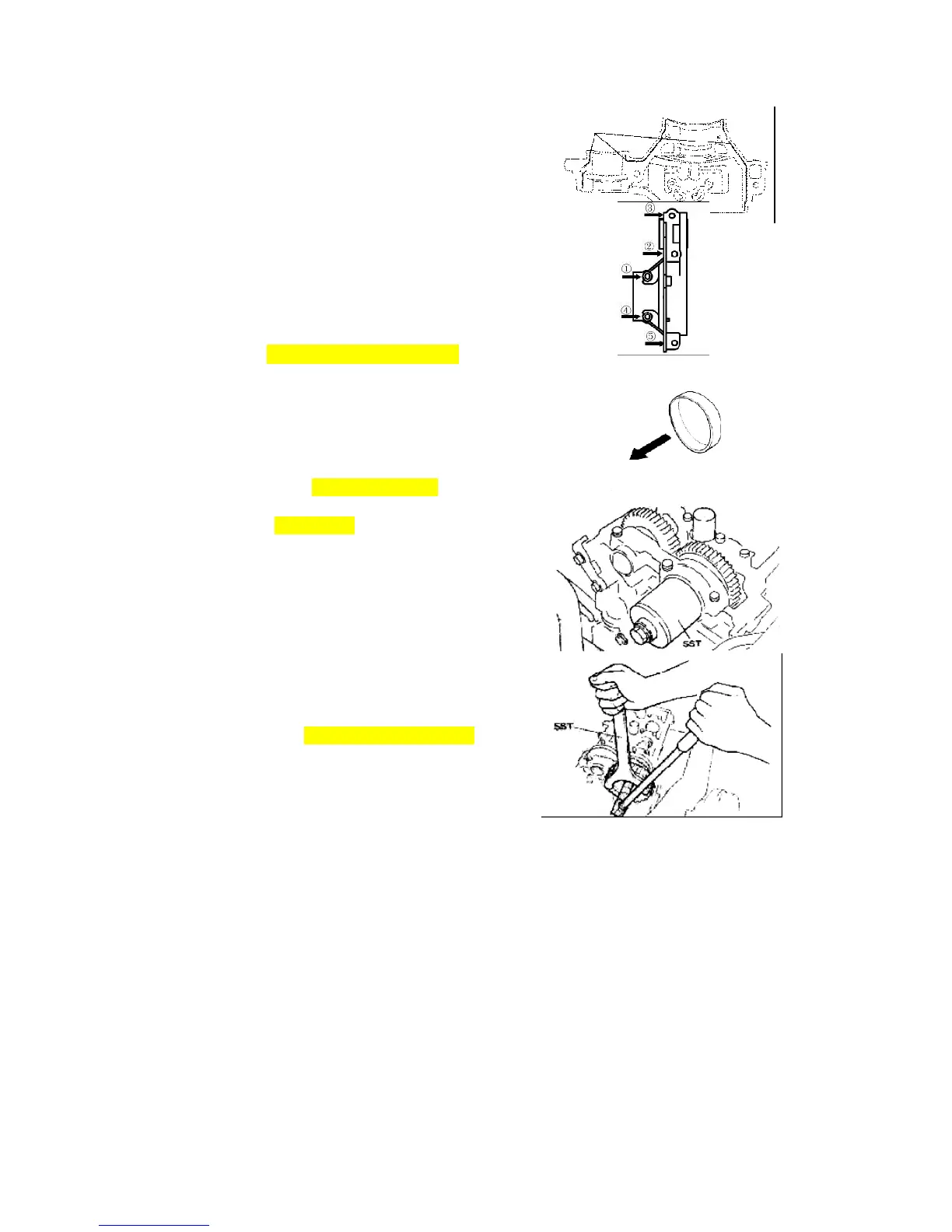

3.6. Installation of camshaft head cap
Smear the fluid sealant on the camshaft
head cap section (With oil groove) shown
as the right figure.
3.6.1. Tighten the bolts according to the
sequences shown as the right figure
with the specified torques.
3.6.2. After smearing oil in the plug cap
hole and assembling surface of the
plug, use SST to press the plug lid
Attention: Install the plug lid shown as the
right illustration. Keep unbiased with
cylinder head end surface after
pressing.1±1mm/0.0394±0.0394inch。
3.7. Smear engine oil on the oil seal
installation port of cylinder head,
camshaft oil seal edge of blade and
outside ring, use M10 bolt (length
50-60 mm/ 1.9685-2.3622inch) and
SST press the cylinder, lower
1mm/0.0394 inch than the end
surface of the cylinder4 head.
Attention ·Under the condition of use the
oil seal repeatedly, press here with engine
oil adhesive agent - The oil seal should not
be pressed inclining to one side.
3.8. Installation of the timing gear of
camshaft After smearing the fluid
sealant, use SST to prevent rotating,
tighten the timing gear bolt of
camshaft according to regulated
torque of 100±5N.M/73.7±3.6Ft_Lb.
Sealing line
Outside
