79

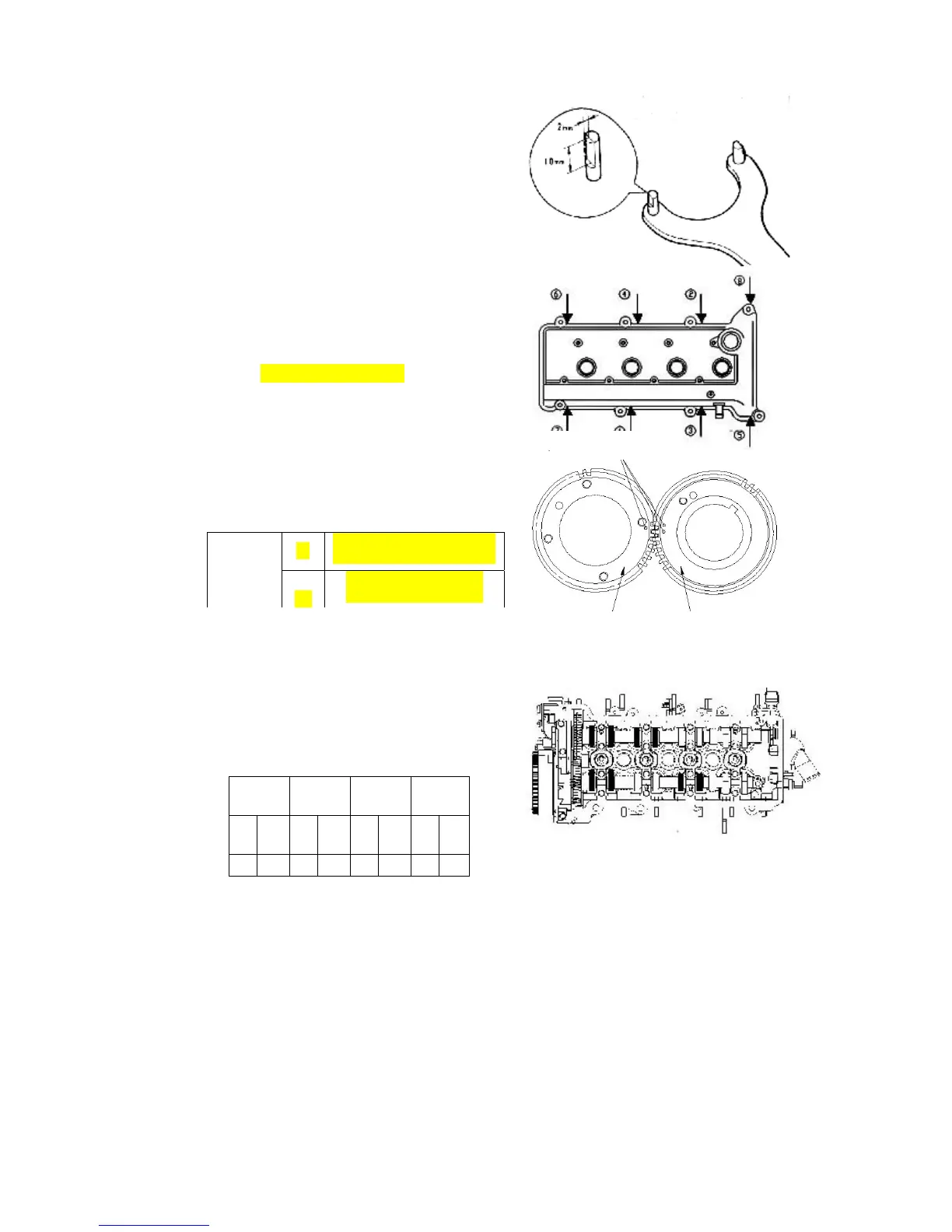

Attention: process the special tool
according the right figure.
3.9. Installation of cylinder head gasket
3.9.1. Clean the the used cylinder head
gasket
3.9.2. Put new one into the groove on the
timing-belt cover accurately
3.9.3. Cover the cylinder head with
cylinder head cover; tighten the
bolts according the right figure.
Torque: 6±1N.m /6±0.7Ft_Lb.
4. Routine check
4.1. Standard of valve clearance:
4.2. Align the timing marks on the
drive-gear and driven-gear.
4.3. Use a plug gauge to measure the
clearance according the right figure
First
cylinder
Second
cylinder
Third
cylinder
Fourth
cylinder
I
N
EX
I
N
EX
I
N
EX
I
N
E
X
O O O — — O — —
valve
clearance
IN
0.18±0.05mm/0.007±0.002
EX
0.25±0.05mm/0.0098±
Timing mark
Air outlet camshaft gear Air inlet camshaft gear
