4.3.1.3. Use a feeler to measure the
clearance between the rotator and
the pump body
[Benchmark]
0.10-0.181mm/0.004-0.0071
[Limit] 0.25mm/0.0098inch
4.3.2. Routine checks on the pressure
relief valve
4.3.2.1. Remove the pressure relief valve,
there should be no visible tears,
wears and scrapes on the
pressure relief valve
4.4. Installation

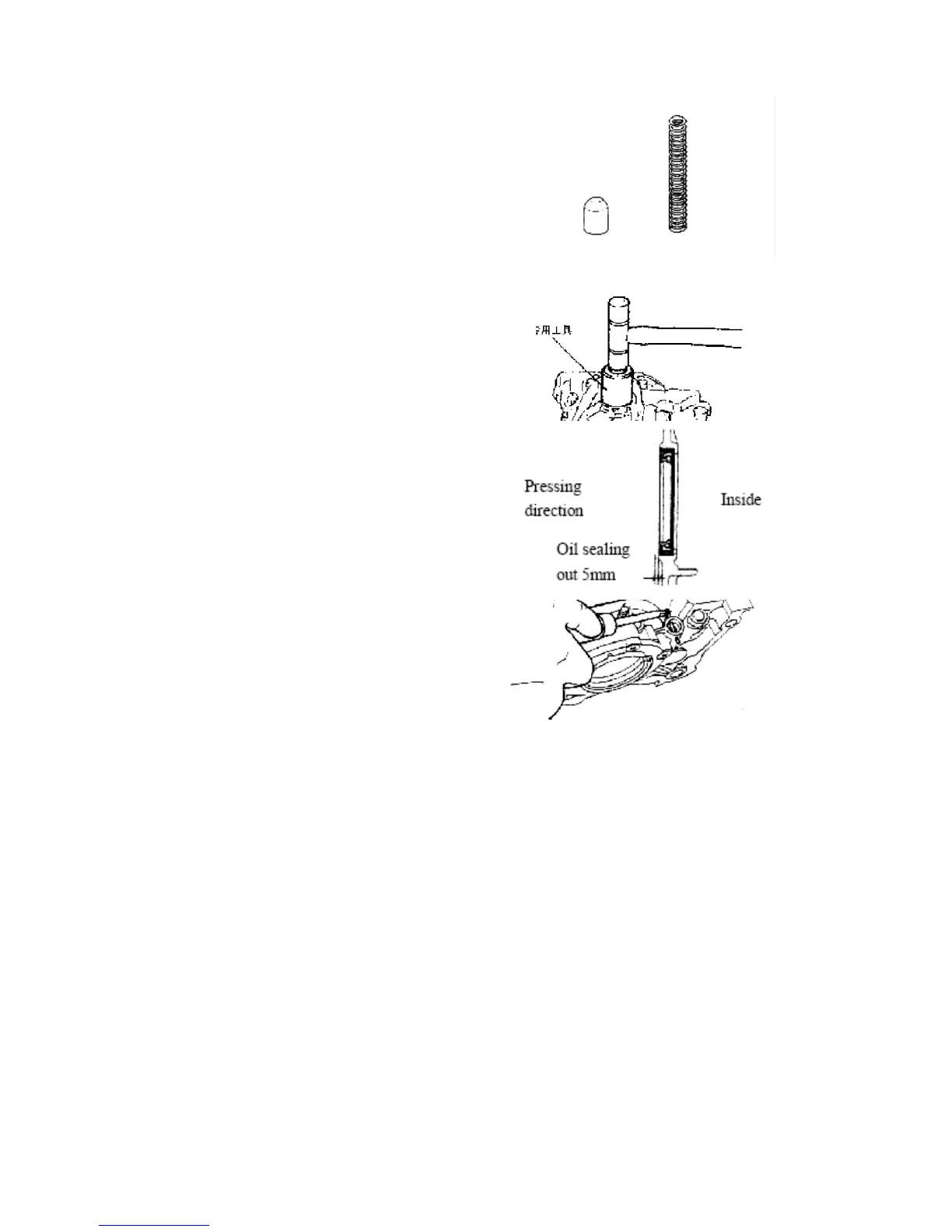

4.4.1. After smearing lubricating oil on the
lips of the new T-shaped oil seals,
use SST to make the assembly.
Attention
·Use new oil seal..
·The exposed part of the outer edge of the
oil seal after being pressed in should be
less than 0.5mm/0.0197inch.
4.4.2. Assembling of the oil pump
pressure relief valve and split pins
Attention The split pins are not reusable.
