4.2 Measurement of Range and Bearing
y
yyy
4
4.2.1 Measurement with Cursor Position (Cursor)
Procedures 1 Make sure of the target echoes on the radar display.
2 Move the cursor to the target.
The bearing and range of the target will be shown in the Cursor bearing / range (upper
right of the display on page 2-3). The range is a distance from the own ship's
position.

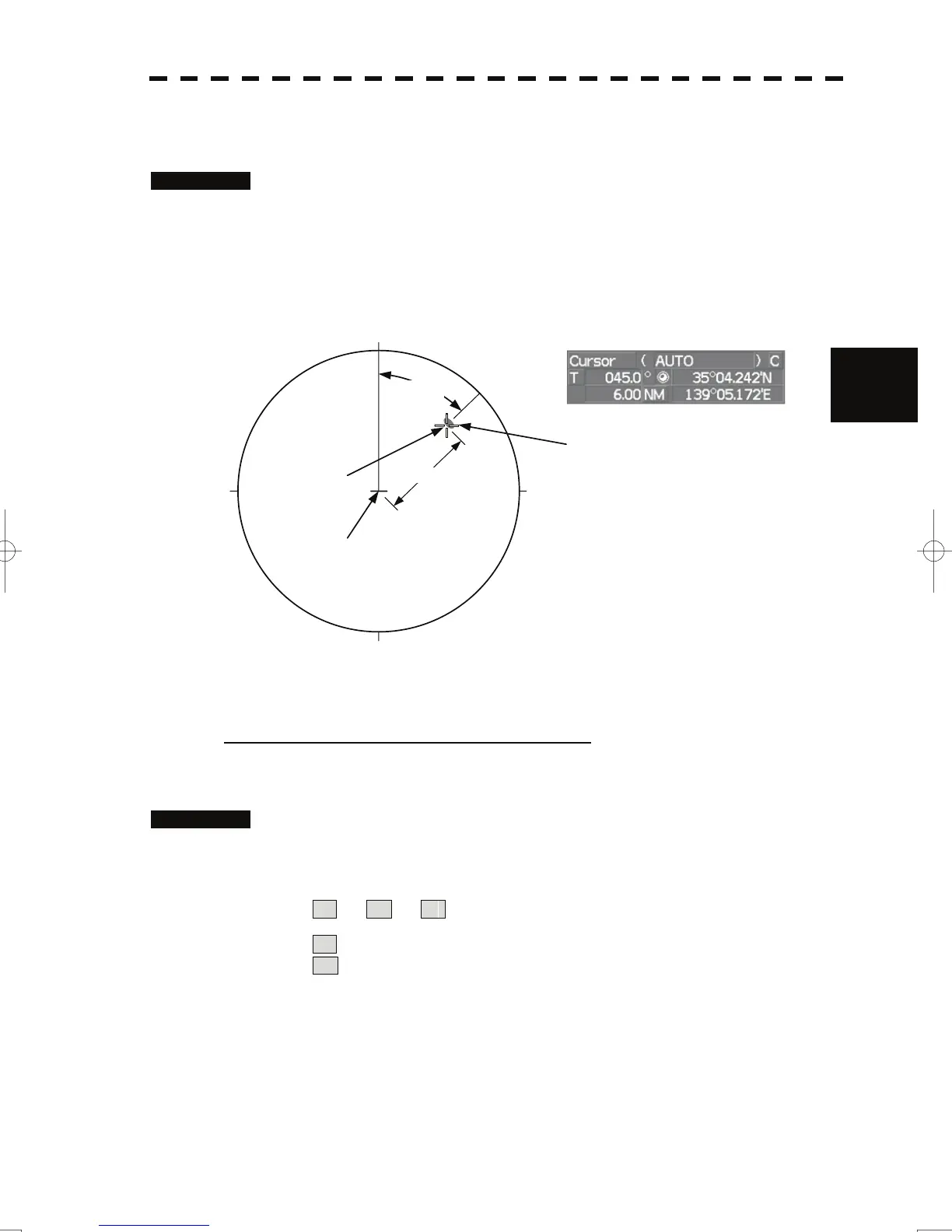

Target
Cursor
45.0°
180
0
90270
6.00NM
Bearing and range from the
own ship’s position to target in this figure:
True bearing 45.0 °
Range 6.00 NM
Own ship’s position
To set a cursor bearing numeric value mode
Determine whether to display a cursor bearing in true or relative bearing mode.
Procedures 1 Put the cursor on the Cursor bearing numeric value indication true /
relative switching (upper right of the display â‘£ on page 2-19), and
press the [ENT] key.
The selected mode is switched as shown below each time the [ENT] key is pressed.
T ⇒ R ⇒ T
T :Cursor bearing is displayed in true bearing mode.
R :Cursor bearing is displayed in relative bearing mode.
