7.3 Adjustment
yyy
yyyy
7
7.3.4 Adjustment of Performance Monitor (MON)
After replacement of either of the following units, adjust the performance monitor according to the
procedures in this section:
• Performance monitor
• Antenna unit
[I] Reception Monitor Adjustment (MON Adjustment)
Adjust the circuit for monitoring the reception performance of the radar equipment.
Procedures 1. If the performance monitor is equipped with an inter-switch function,
set it as the master display unit.
2. Open the Serviceman Menu.
3. Open the MON (Performance Monitor) Adjustment menu by
performing the following menu operation.
1. Adjust Menu
→ 4. TXRX Adjustment
→ 4. MON Adjustment

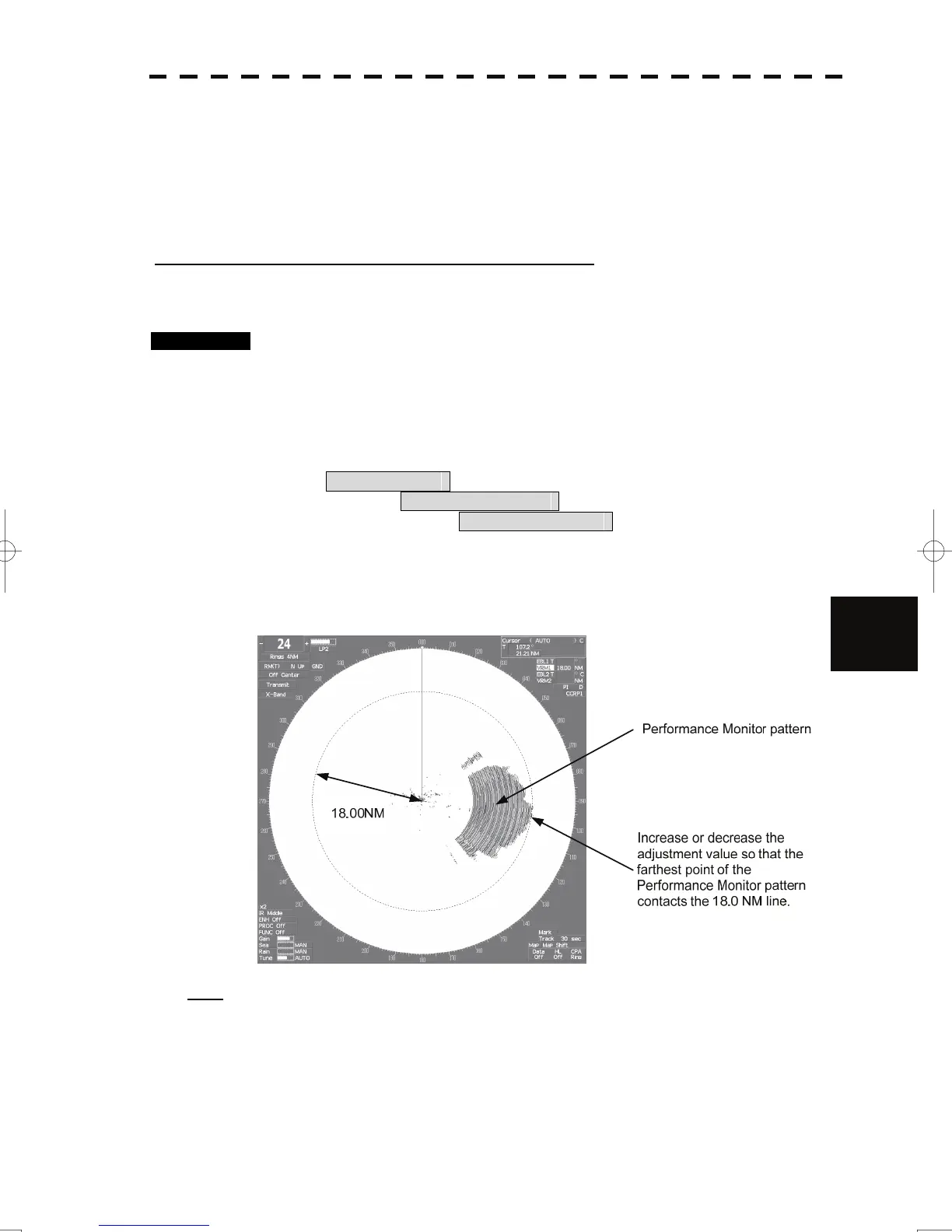

4. Increase or decrease the adjustment value so that the farthest point of
the performance monitor pattern touches the 18.0 NM line.
Note: During performance monitor adjustment, all acquisitions by the target tracking function are
released.
The released target acquisitions are not recovered.
To Next Page
