III Reference

Setting at Installation

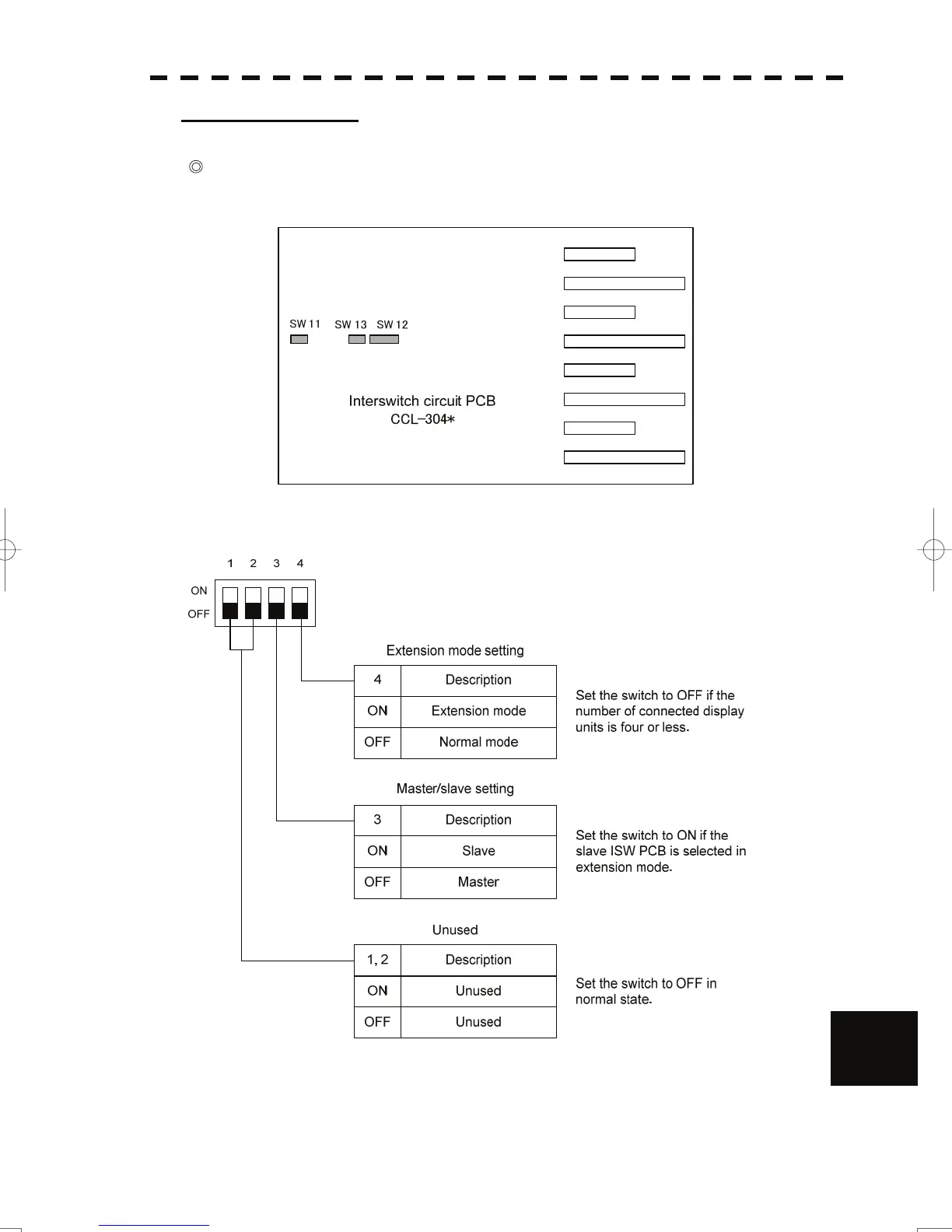

Setting of the interswitch circuit (CCL-304*)

The settings of the DIP switches SW11 to SW13 are shown below.

1) SW11 setting (extension mode and master/slave settings)

APPENDIX

A-10
