JUKI MO-6904S - Installing the cloth plate and the cloth guide unit

– 7 –

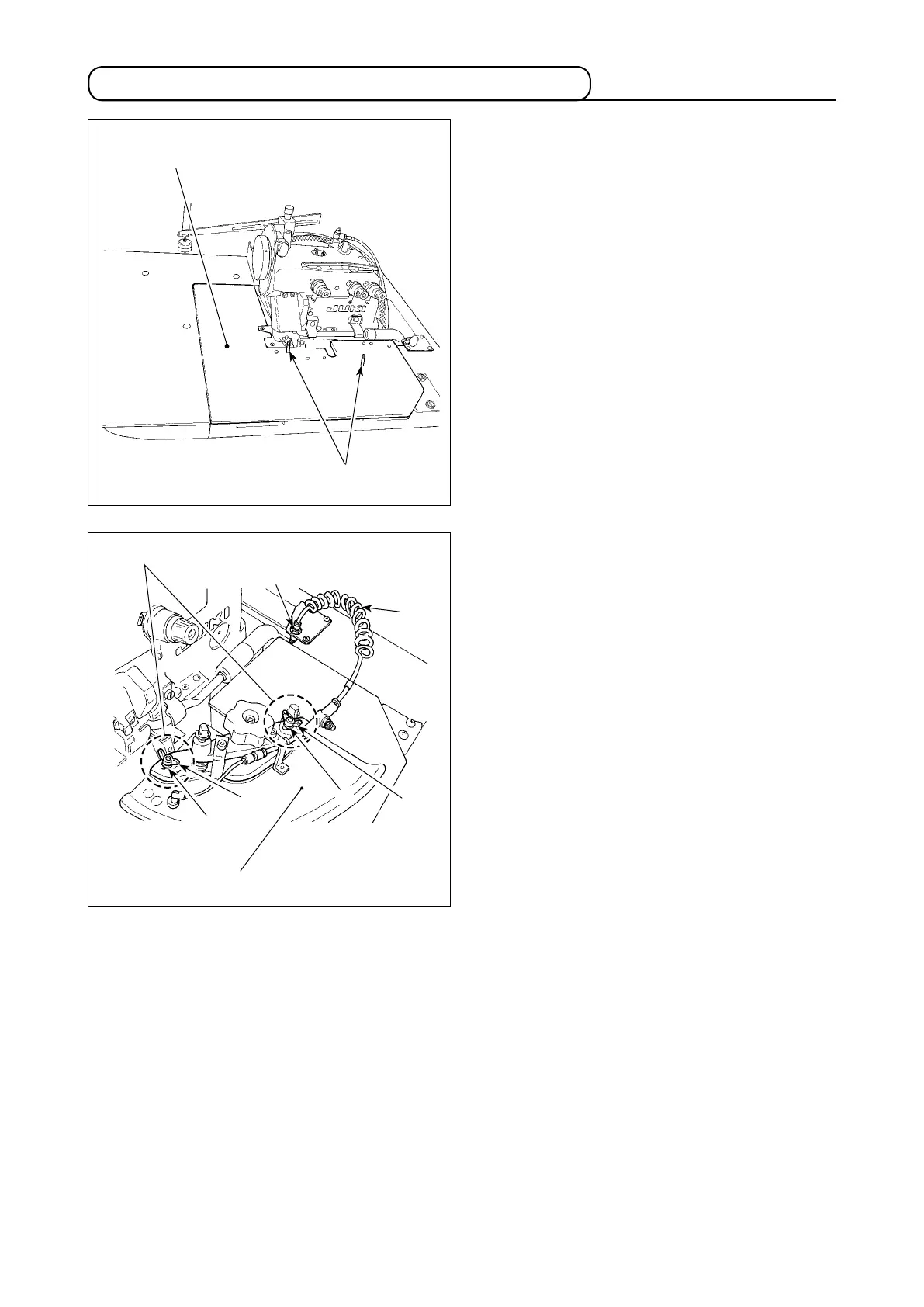

3-6.Installingtheclothplateandtheclothguideunit
1) Place the cloth plate on the sewing machine
table.
2) Put the slots (at two locations) in the cloth guide
unit as illustrated in the gure over two studs
❶
(at two locations) of the cloth plate over. Fix the
studs
❶
with washer
❸
and thumb screws
❷
.
3) Connect air tube
❹
to joint
❺
.
Installingposition
Cloth plate
Clothguideunit
❶
❺
❹
❷
❷
❸
❸
