3-13.Installingtheclothreceivingboard(KM-5)(optional)

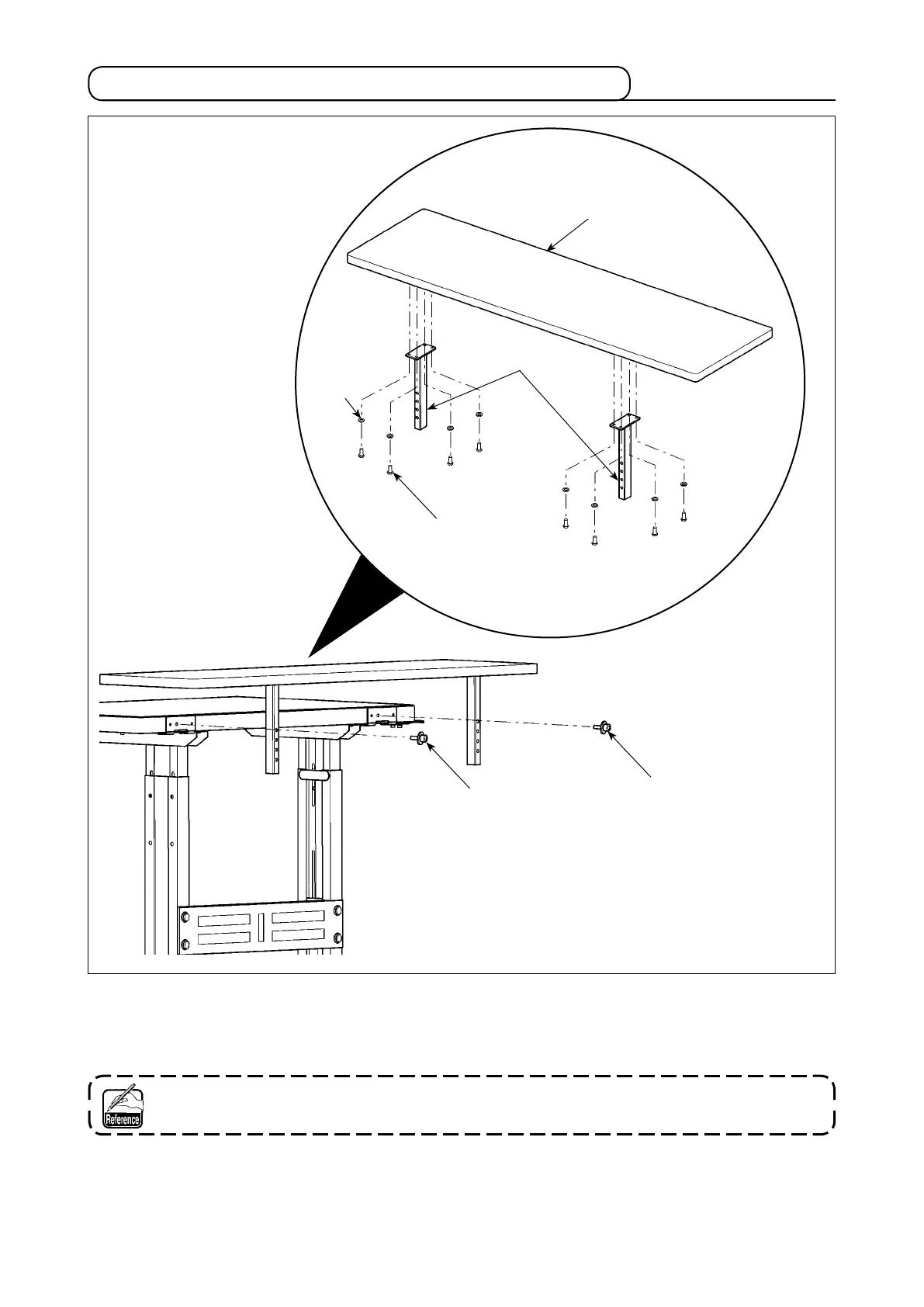

1) Fix support rods
❷
on cloth holding table
❶
with wood screws
❸
and washers
❹
(at four locations
each).
2) Fix the cloth holding table mounted with the support rods on the sub-table with screws
❺
.
Theclothholdingtablecanbeadjustedtofourdifferentheightsusingthexingholesinthesupport
rod.
❶
❸
❷
❹
❺
❺
