JUKI MO-6904S - Connecting the air coupler; Connecting the starting pedal for the machine

– 9 –
3-10.Connectingthestartingpedalforthemachine
Connector
❷
of starting pedal
❶
to junction connec-
tor
❹
coming from control box
❸
.

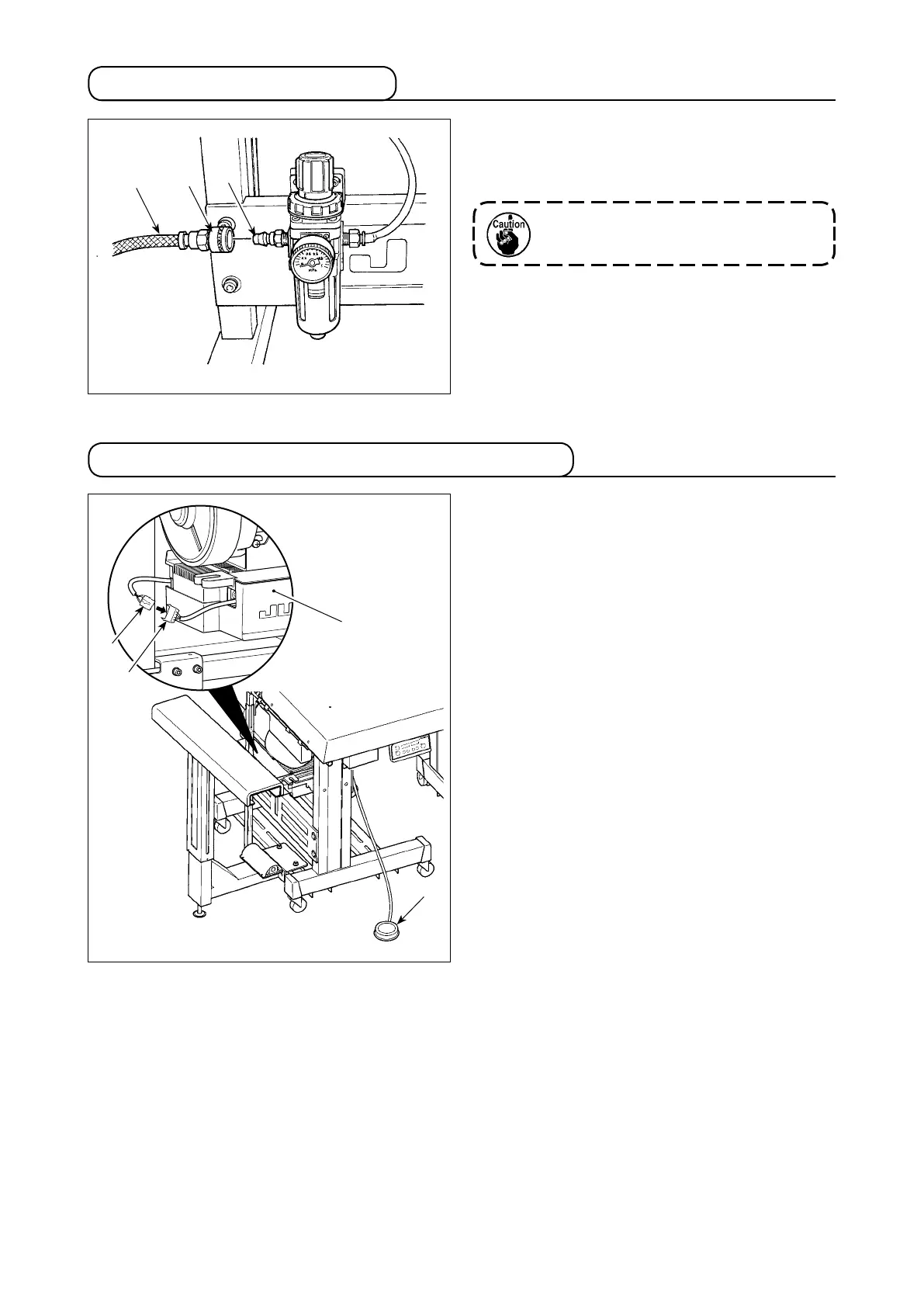

3-9.Connectingtheaircoupler
Connect the air coupler
❶
supplied with the unit as
an accessory rstly to air hose
❷
, secondly to cou-
pler
❸
on the main body side.
Makesurethatthepressuregaugeofthe
regulatorreads0.5MPa.
❷
❶
❸
❹
❶
❷
❸
