JUKI MO-6904S - Replacing the fuse

– 43 –

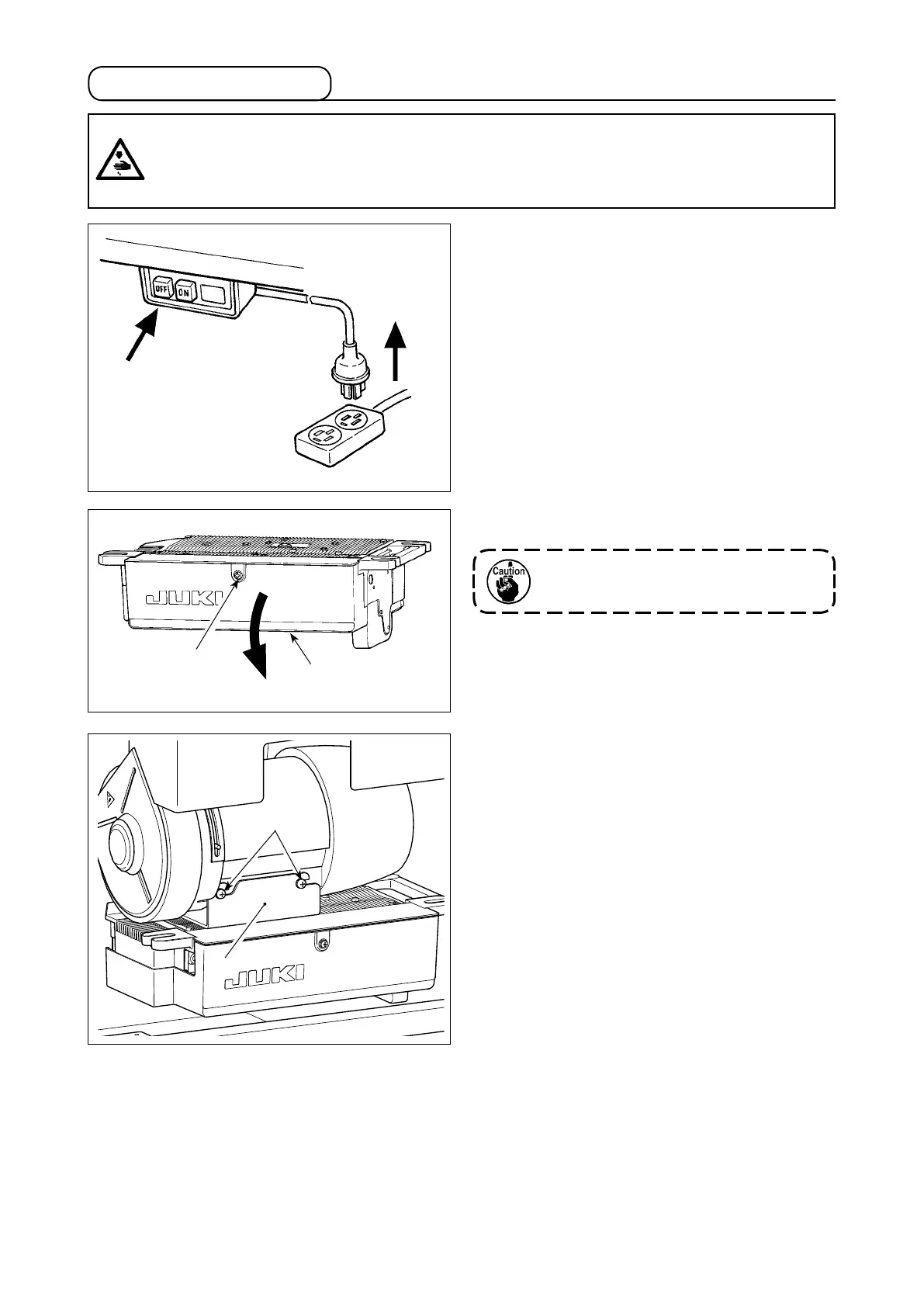

7-11.Replacingthefuse
CAUTION :
Topreventpersonalinjuriescausedbyelectricshockhazardsorabruptstartofthesewingmachine,
removethecover after turningOFFthe power switchanda lapse of5minutesor more.Toprevent
personal injuries, when a fuse has blown out, be sure to replace it with a new one with the same
capacityafterturningOFFthepowerswitchandremovingthecauseoftheblown-outofthefuse.
3) Loosen setscrew
❷
in cover
❶
. Open cover
❶
.
1) Press the OFF button of the power switch to turn
OFF the power after conrming that the sewing
machine has stopped.
2) Draw out the power cord coming from the power
plug socket after conrming that the power
switch is turned OFF. Perform the work of step 3)
after conrming that the power has been cut and
it has passed for 5 minutes or more.
Besuretoopen/closecover
❶
while put-
tingahandonit.
❶
❷
4) Remove all the cables which are connected to
the control box.
5) Loosen setscrews
❹
of control box mounting
plate
❸
. Detach the control box from the motor.
❹
❸
