JUKI MO-6904S - Preparation; Caution before operation; Lubrication

– 15 –

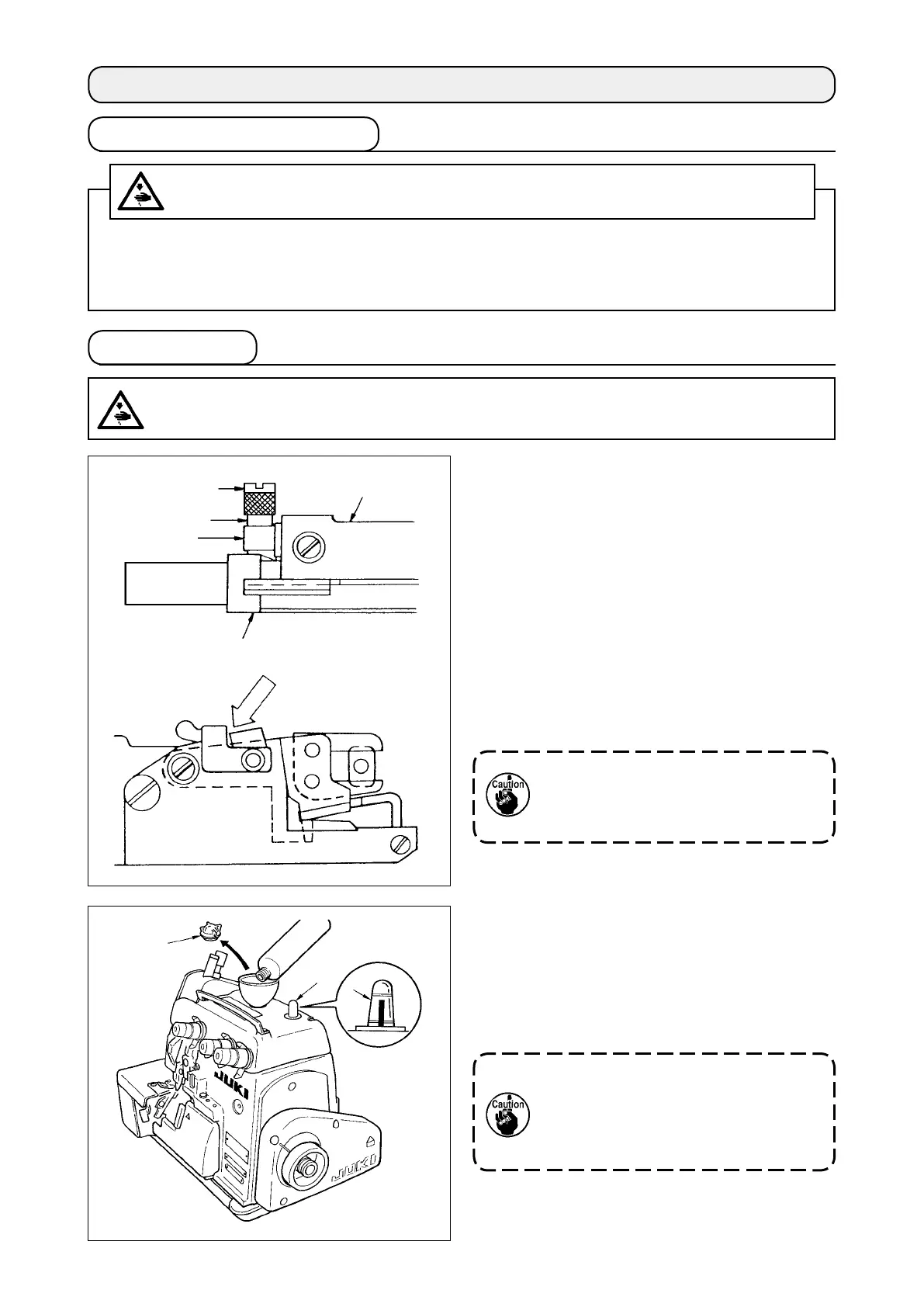

4. PREPARATION
4-1.Cautionbeforeoperation
1) Remove oil cap
❶
.
2) Pour JUKI MACHINE OIL 18 into the oil reser-
voir.
3) Supply oil until the pointer bar almost reaches
the upper red marker line when oil gauge
❷
is
observed from the side.
Iftheoilamountpointerbarexceedsthe
redmarkerline,theoilquantitybecomes
excessiveresultinginoilleakage.Besure
tostopaddingtheoilbeforetheredmark-
er line is reached.
❶
❷
❷
4-2.Lubrication
CAUTION :
Toprotectagainstpossiblepersonalinjuryduetoabruptstartofthemachine,besuretostartthe
followingworkafterturningthepoweroffandascertainingthatthemotorisatrest.
• Before you put the machine into operation for the rst time, be sure to thoroughly clean it.
• Check to be sure that the voltage has been correctly set.
• Make sure that the power plug is connected properly.
• Never use the machine under a voltage that is different from the specication.
• Lubrication to chain-off thread trimming device
Remove screw
❶
from the top end of the oil
hose at the rear section of the machine. The
upper limit of the oil quantity is at the top of the
pipe holder.
Oil consumption differs depending on the condi-
tion of use. The oil quantity should be checked
on a daily basis.
As a guide, lubricate the chain-off thread trim-
mer at the following intervals :
· Once a day for the continuous use
· Normally once every three to four days
Lubricant inlet
Pipe holder
Cloth plate side cover
Knifeplate(asm.)
Thechain-offthreadtrimmerhasnotbeen
factory-oiledatthetimeofdelivery.
JUKIMACHINEOIL18shouldbeusedfor
lubrication.
CAUTION :
Toavoidpossiblemalfunctionsanddamageofthemachine,checkthefollowingitems.
❶
