JUKI MO-6904S - Installing the thread stand; Installing the regulator

– 8 –
❶

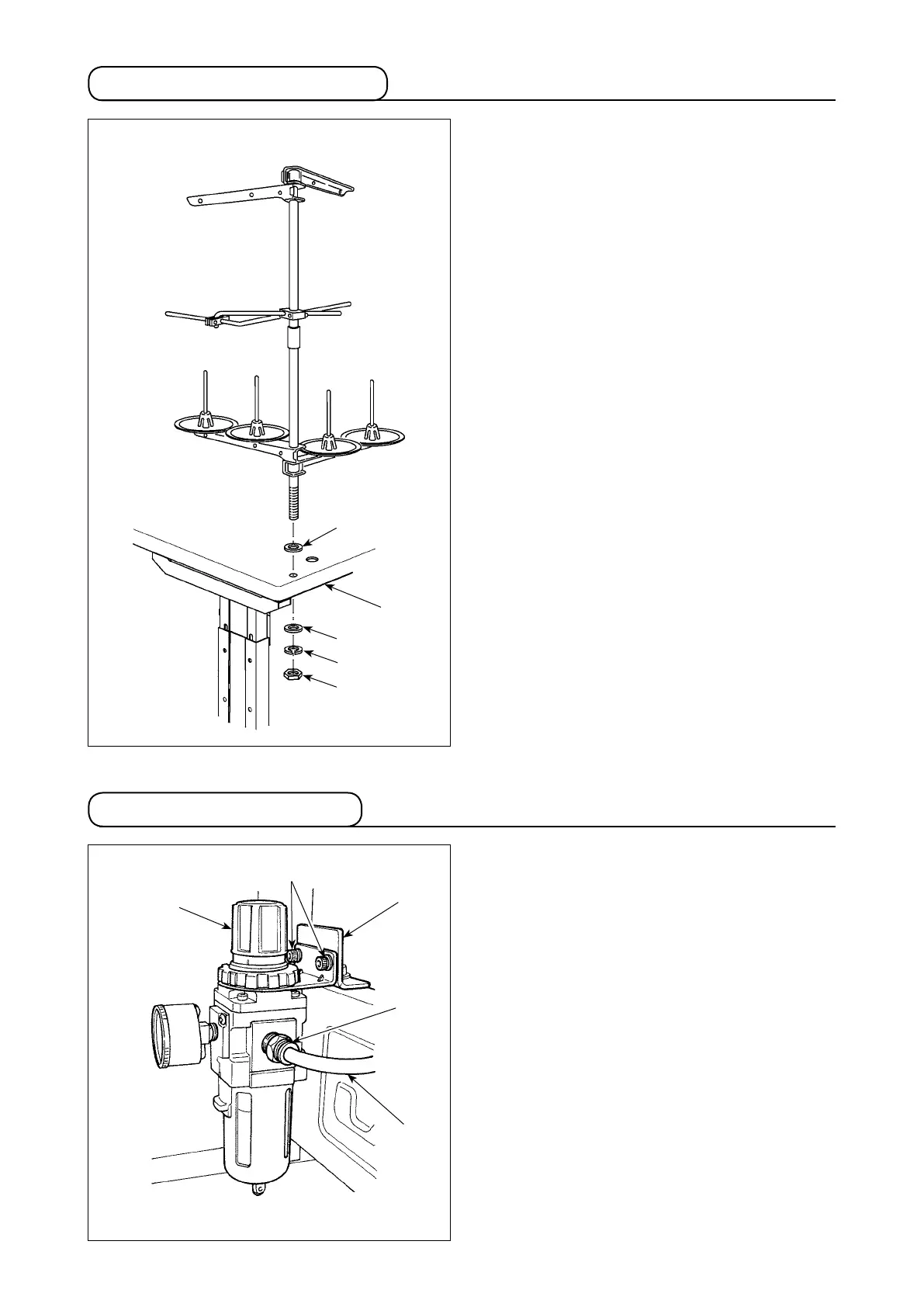

3-7.Installingthethreadstand
Insert the thread stand into the hole in table
❶
with
a washer placed between them and x with the nut
and washers from under the table as illustrated in
the gure at left.
Washer
Washer
Springwasher
Nut
3-8.Installingtheregulator
Fix regulator
❶
on mounting plate
❷
with screws
❸
(at two locations).
Connect ø8 air tube
❹
to joint
❺
.
❷
❶
❸
❹
❺
