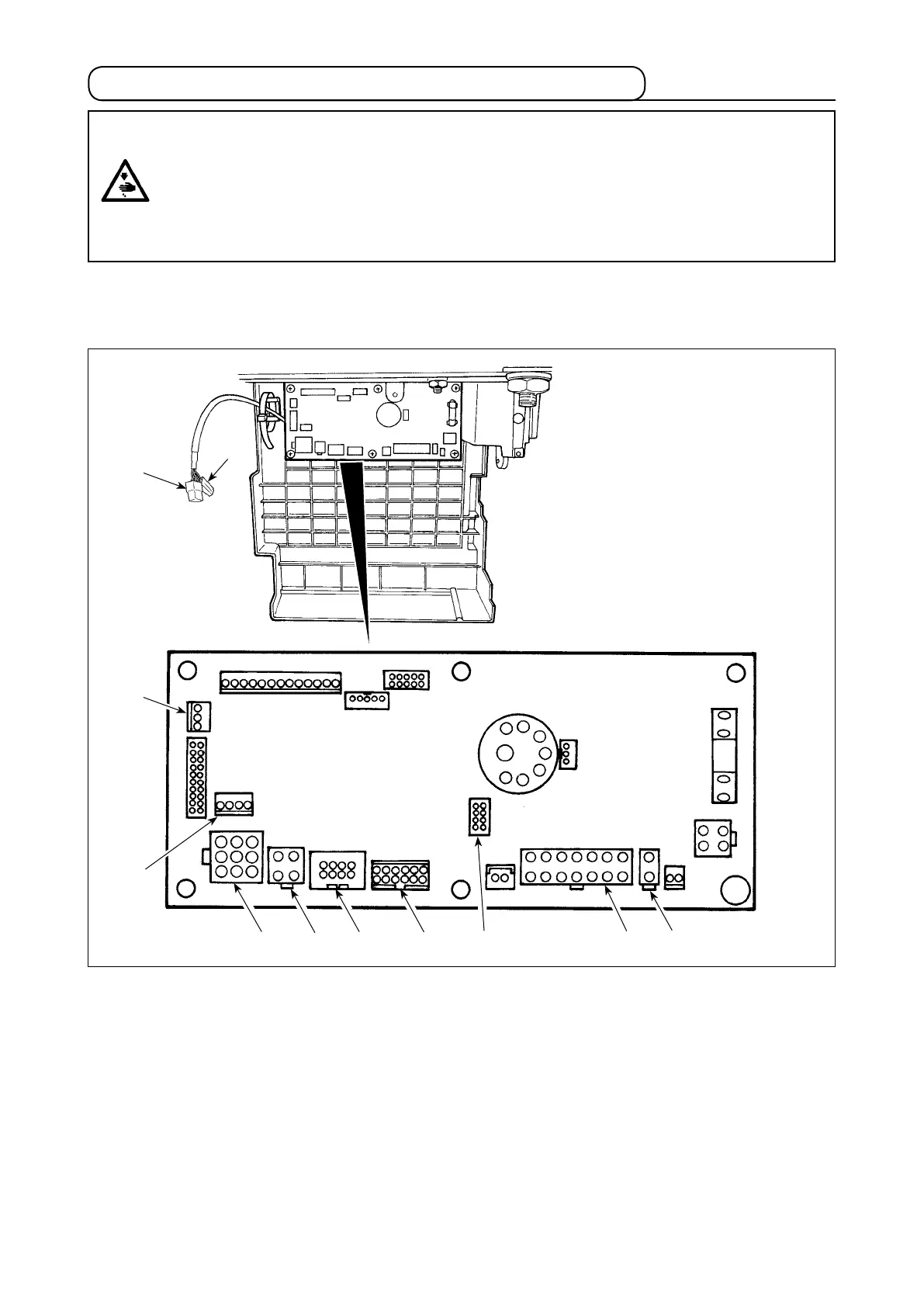

Solenoid valves and sensors used with ASN-690 are connected to the connectors inside the control box as
described below: Connection state of the connectors can be checked by loosening front-cover xation screws
and opening the front cover.
7-13.Destinationofconnectionforinput/outputconnectors
❶
CN42 Curve sensor
❷
CN54 Startup sensor
❸
CN30 Motor signal connector
❹
CN48 Connector for the cloth plate open/close switch and halt switch
❺
CN38 Operation panel CP-18
❻
CN39 Connector for pedal junction cable
❼
CN56 Connector for solenoid valve
❽
CN36 Connector for solenoid valve
❾
CN37 Connector for solenoid valve
󱢳
CN201 Connector for starting pedal
󱢴
CN206 Connector for 3-pedal unit (optional)
CAUTION :
• Topreventpersonalinjurycausedbyabruptstartofthesewingmachine,carryouttheworkafter
turningOFFthepowerswitchandalapseof5minutesormore.
• Topreventdamageofdevicecausedbymaloperationandwrongspecications,besureto
connectallthecorrespondingconnectorstothespeciedplaces.
• Topreventpersonalinjurycausedbymaloperation,besuretolocktheconnectorwithlock.
• Asforthedetailsofhandlingrespectivedevices,readcarefullytheInstructionManualssupplied
withthedevicesbeforehandlingthedevices.
󱢴
󱢳
❽
❾❻❺❹❸
❶
❷
❼
