JUKI MO-6904S - Installing the stacker

– 5 –

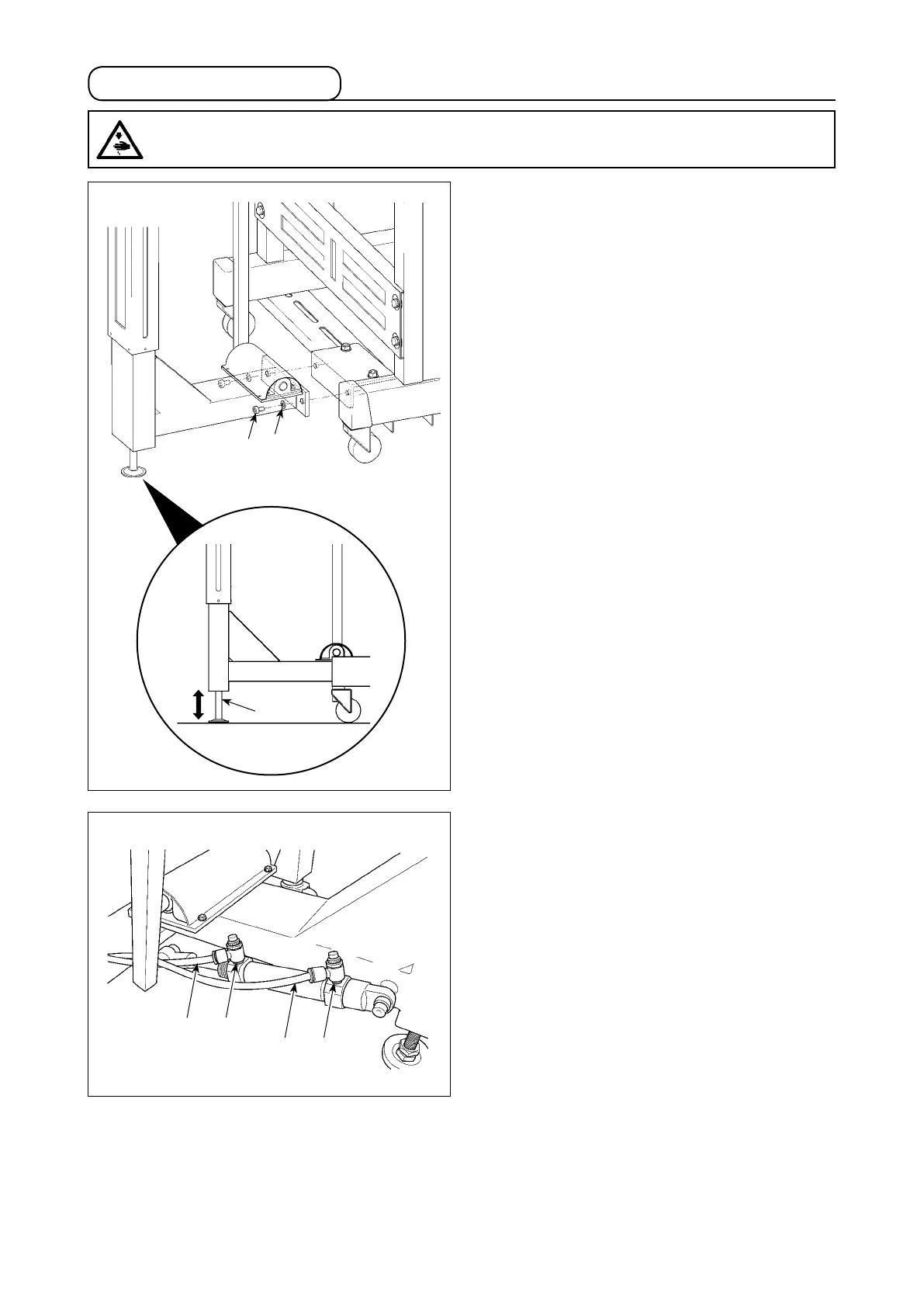

3-4.Installingthestacker
1) Install the stacker unit on the base with screws
❶
and washers
❷
(at two locations each).
2) Adjust adjusting bolt
❸
to make the support rod
of the stacker parallel to the installing plane.
3) Connect air tube
❹
to joint
❺
and air tube
❻
to
joint
❼
in numerical order.
CAUTION
:
Besuretocarryoutinstallationofthestackerbytwoormoreworkersinordertoprotectagainst
accidentscausedbythestackerunitwhenitaccidentallyfalls.
❶
❷
❸
❼
❺
❻
❹
