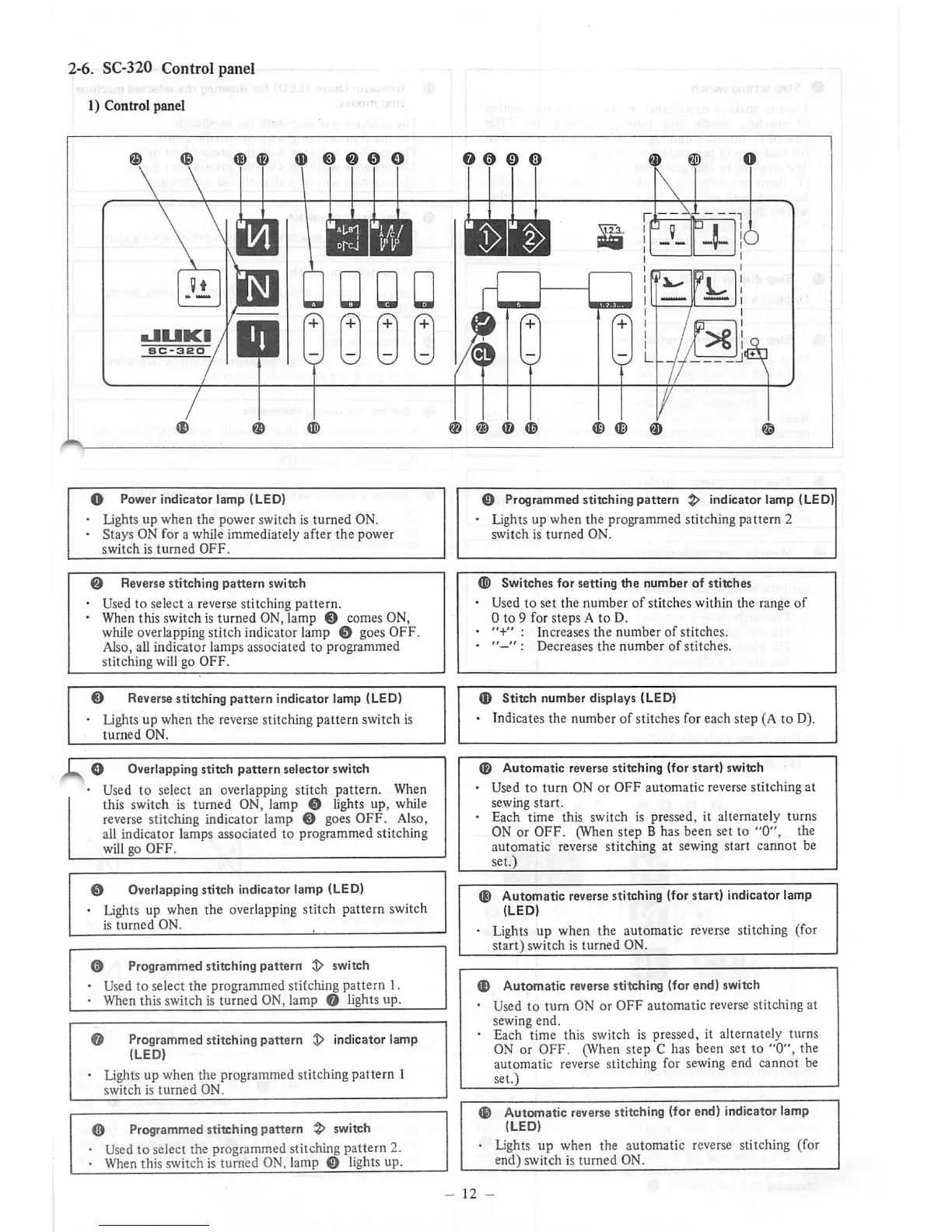

2-6. SC-320 Control panel
1) Control panel
+ -I- +
O Power indicator lamp (LED)
• Lights up when the power switch is turned ON.
• Stays ON for a while immediately after the power
switch
is
turned
OFF.
Reverse
stitching
pattern
switch
• Used to select a reverse stitching
pattern.
• When this switch is turned ON, lamp 0 comes ON,
while overlapping stitch indicator lamp 0 goes OFF.
Also, all indicator lamps associated to programmed
stitching will go
OFF.
0
Reverse
stitehing pattern indicator lamp
(LED)
• Lights up when the reverse stitching pattern switch is
turned
(DN.
O Overlapping stitch
pattern
selector switch
• Used
to
select an overlapping stitch pattern. When
this switch is turned ON, lamp 0 lights up, while
reverse
stitching indicator lamp 0 goes OFF. Also,
ail indicator lamps associated to programmed stitching
will go
OFF.
0 Overlapping stitch indicator lamp (LED)
•
Lights
up
when
the
overlapping
stitch pattern
switch
is
turned
ON.
0 Programmed stitching pattern ^ switch
• Used to select the
programmed
stitching
pattern
1.
• When this switch is turned ON, lamp 0 lights up.
O Programmed stitching pattern
$>
indicator lamp
(LED)
• Lights up when the programmed stitching pattern 1
switch
is
turned
ON.
0 Programmed stitching pattern ^ switch
• Usedto select the programmed stitching pattern 2.
• When this switch is
turned
ON, lamp 0 lights up.
o o
0 Programmed stitching
pattern
^ indicator lamp (LED)
' Lights up when the programmed stitching pattern 2
switch
is
turned
ON.
)
Switches
for
setting
the
number
of
stitches
Used to set the number
of
stitches within the range
of
0 to 9 for steps A to D.
"+"
:
Increases
the
number
of
stitches.
" :
Decreases
the
number
of
stitches.
0
Stitch
number
displays (LED)
• Indicates the number
of
stitches for each step (A to D).
0
Automatic
reverse stitching
(for
start)
switch
• Used to
turn
ON or
OFF
automatic
reverse
stitching
at
sewing
start.
• Each time this switch is pressed, it alternately turns
ON or OFF.
(When
step B has been set to "0", the
automatic reverse stitching at sewing start
cannot
be
set.)
0 AutcMnatic reverse stitching (for
start)
indicator lamp
(LED)
• Lights up when the automatic
reverse
stitching (for
start) switch is turned ON.
0
Automatic
reverse stitching (for end) switch
• Used to
turn
ON or
OFF
automatic
reverse stitching at
sewing end.
• Each time this switch is pressed, it alternately turns
ON or OFF.
(When
step C has been set to "0", the
automatic reverse stitching for sewing end cannot be
set.)
0 Automatic reverse stitehing (for end) indicator lamp
(LED)
• Lights up when the automatic reverse stitching (for
end)
switch is
turned
ON.
To Next Page
