JUKI SC-20 - Precautions in Inserting and Removing Connectors

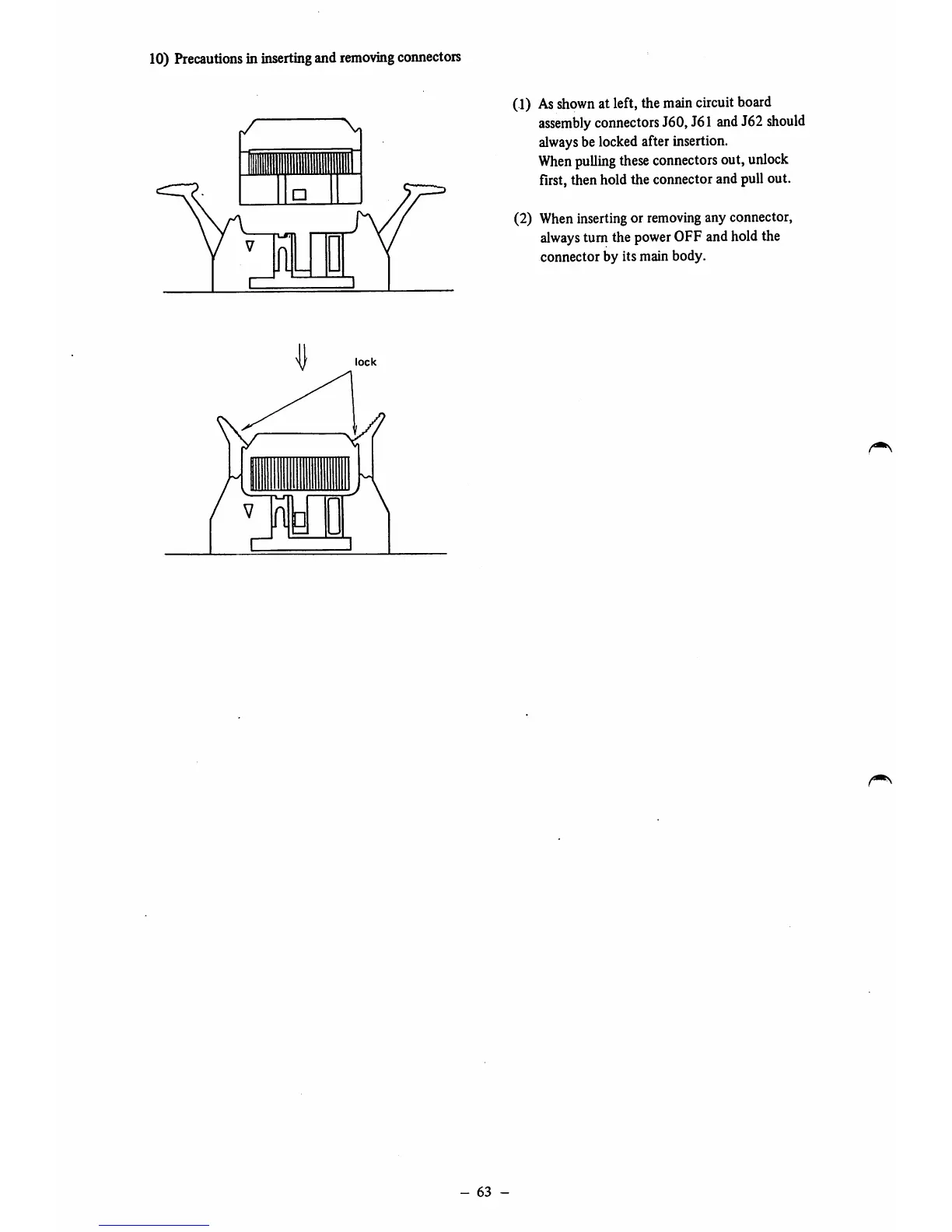

10) Precautionsin insertingand removing connectors
11
•
^ J i|d
ID
lock
(1) As shown at left, the main circuit board
assembly connectors J60,J61 and J62 should
alwaysbe locked after insertion.
When pulling these connectors out, unlock
first, then hold the connector and pull out.
(2) When inserting or removing any connector,
always turn the powerOFF and hold the
connector by its main body.
