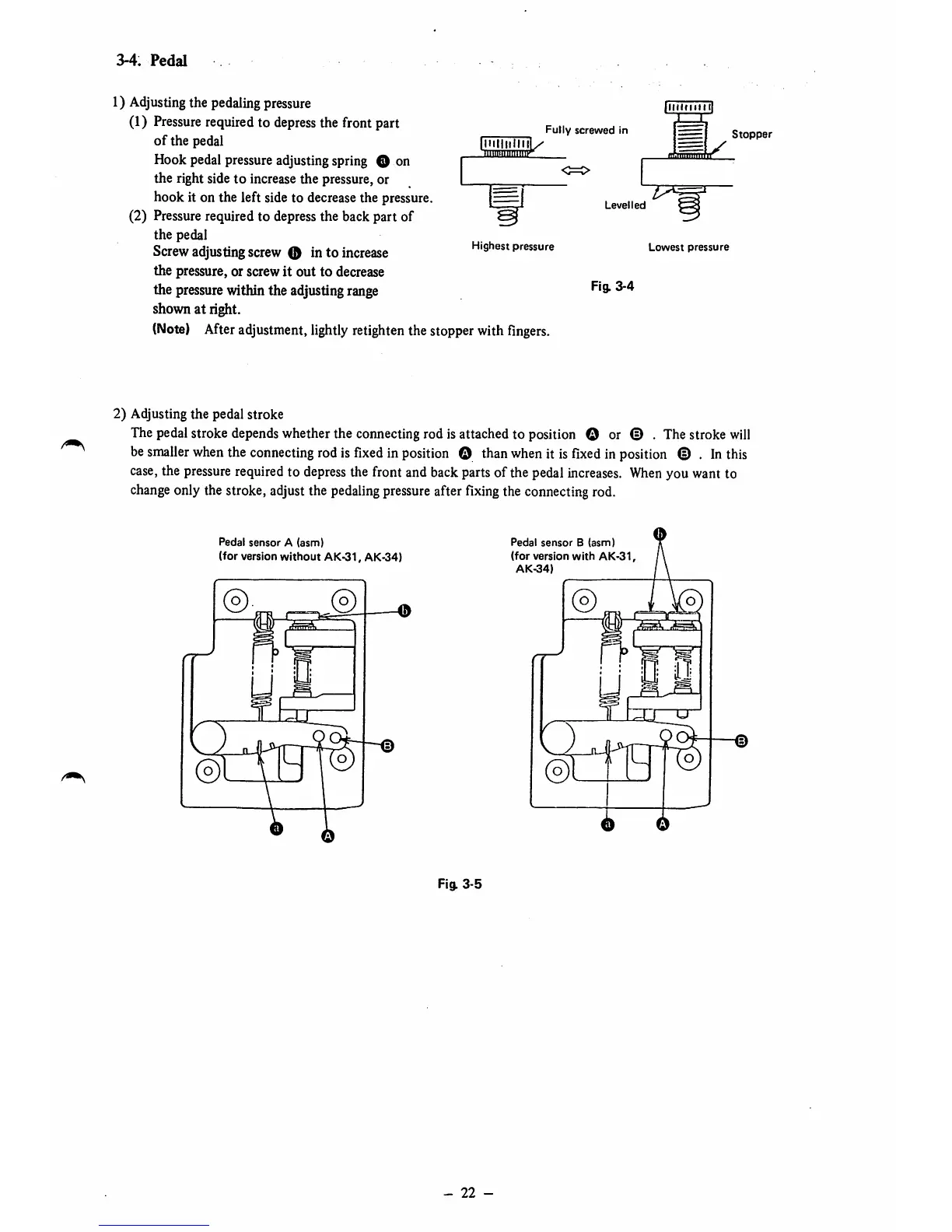

3-4.
Pedal
Fully
screwed
In
liniiitliiil/
'iiimiiiiiiiiiiit*^
<=>
illlKlilMl
1_1
nBiiiinniii
Stopper
1)
Adjusting
the pedaling
pressure
(1)
Pressure
required to
depress
the front part
of
the pedal
Hook pedal pressure adjustingspring O on
the right side to increase the pressure, or
hook it on the left side to decrease the pressure.
(2) Pressure required to depress the back part of
the pedal
Screwadjustingscrew O in to increase
the pressure, or screw it out to decrease
the
pressure
withinthe adjusting
range
shown at right.
(Note)
After
adjustment,
lightly
retighten
the
stopper
with
fingers
Levelled
Highest
pressure
Lowest
pressure
Fig.
3-4
2) Adjusting the pedal stroke
The pedal stroke depends whether the connecting rod is attached to position O or © . The stroke
will
be
smaller
when
the
connecting
rodis
fixed
in
position
O than
when
it is
fixed
in
position
© . Inthis
case,
the
pressure
required
to
depress
thefrontand
back
parts
ofthe
pedal
increases.
When
you
want
to
change
onlythe
stroke,
adjust
the
pedaling
pressure
after
fixing
the
connecting
rod.
Pedal
sensor
A
(asm)
(for version
without
AK-31, AK-34)
-©
Fig.
3-5
-
22
-
Pedal
sensor
B
(asm)
(for
version
with
AK-31,
AK-34)
