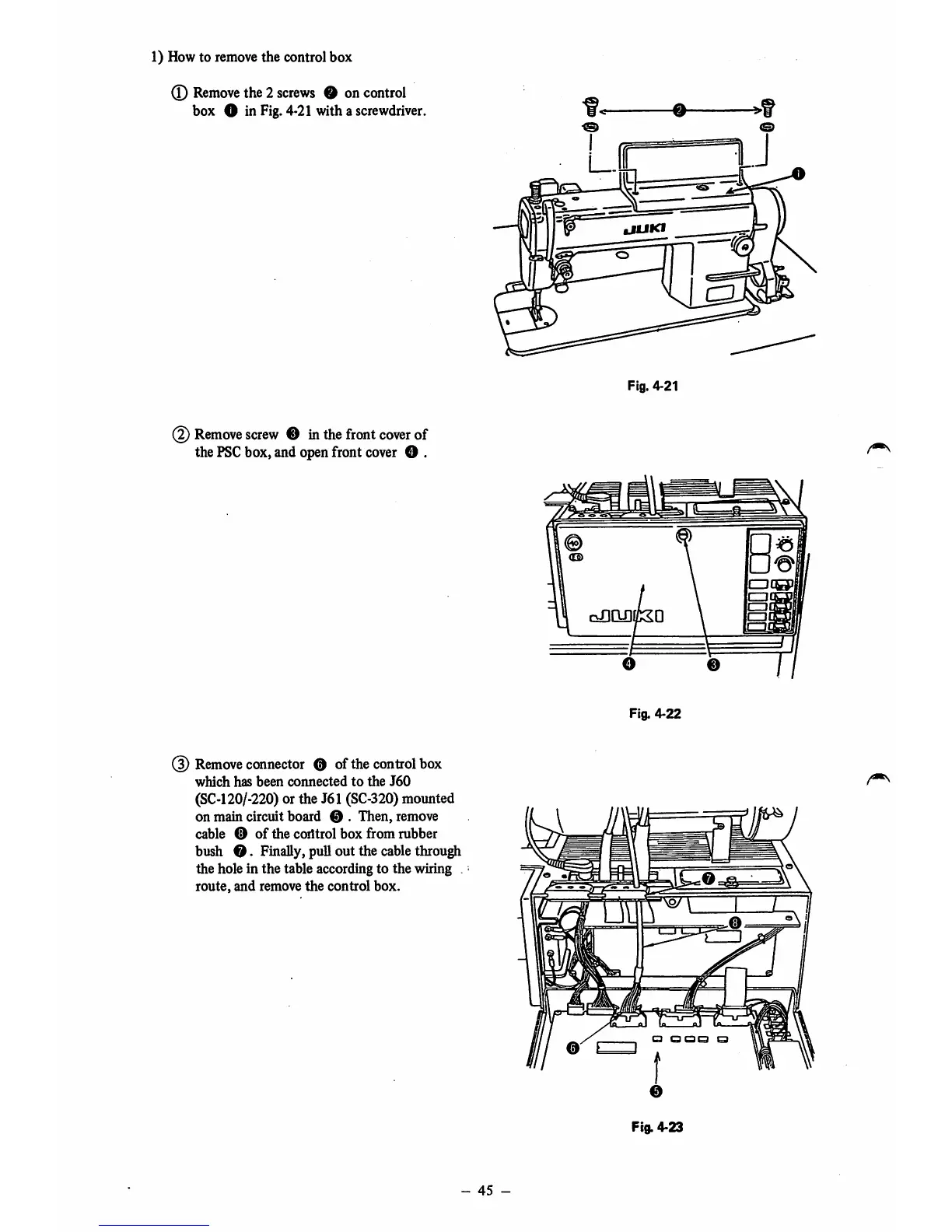

1) How to remove the control box
(l)
Remove
the 2
screws
O on control
box O in Fig.
4-21
with a screwdriver.
@
Remove
screw
® in
the
front
cover
of
the
PSC
box, and openfront cover O .
Remove
connector
0
of
the
control
box
which
has
been
connected
to
the
J60
(SC-120/-220)
or the J61
(SC-320)
mounted
on main circuit board 0 Then, remove
cable ©
of
the
control
box
from
rubber
bush
O.
Finally,pull out the cable through
the hole in
the
table according to
the
wiring
route,
and
remove
the
control
box.
45
-
•JUKI
Fig. 4-21
a
Fig.
4-22
Fig.
4-23
