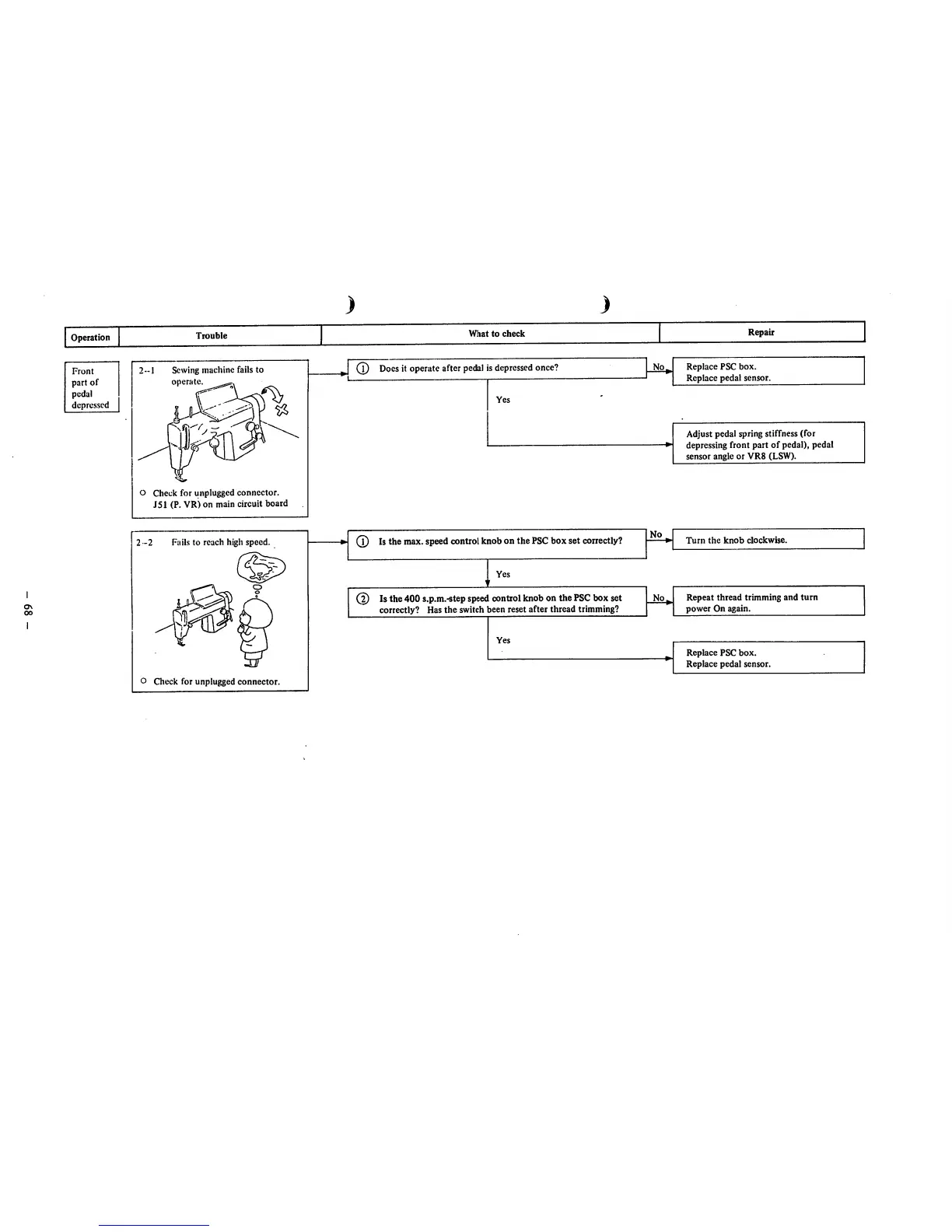

Operation
Front
part of
pedal
depressed
Trouble
2--i Sewing machine fails to
operate.
O Cheek for unplugged connector.
J51 (P. VR) on main circuit board
2-2 Fails to reach high speed.
O Check for unplugged connector.
What to check
^ (D Does it operate after pedal is depressed once?
Yes
(J) Is the max. speed control knob on the PSC box set correctly?
Yes
(2) Isthe400 s.p.m.-step speed control knob onthe PSC boxset
correctly? Has the switch been reset after thread trimming?
Yes
No.
No
No.
Repair
Replace PSC box.
Replace pedal sensor.
Adjust pedal spring stiffness (for
depressing front part of pedal), pedal
sensor angle or VR8 (LSW).
Turn the knob clockwise.
Repeat thread trimming and turn
power On again.
Replace PSC box.
Replace pedal sensor.
