Table 4-15
FLON
(SWS-l)
FLPW
(SW5-2)
Control
ON
OFF
When connector O switch is turned ON the
presser foot is automatically raised; if there is
no input for 60 seconds after
that it is
automatically lowered.
ON
ON
After the presser foot is automatically raised,
it will be kept raised for 10 minutes as long as
there is no input.
Note) In standing sewingmachine operation, if connector O is used set
FLON (SW-5)to ON.

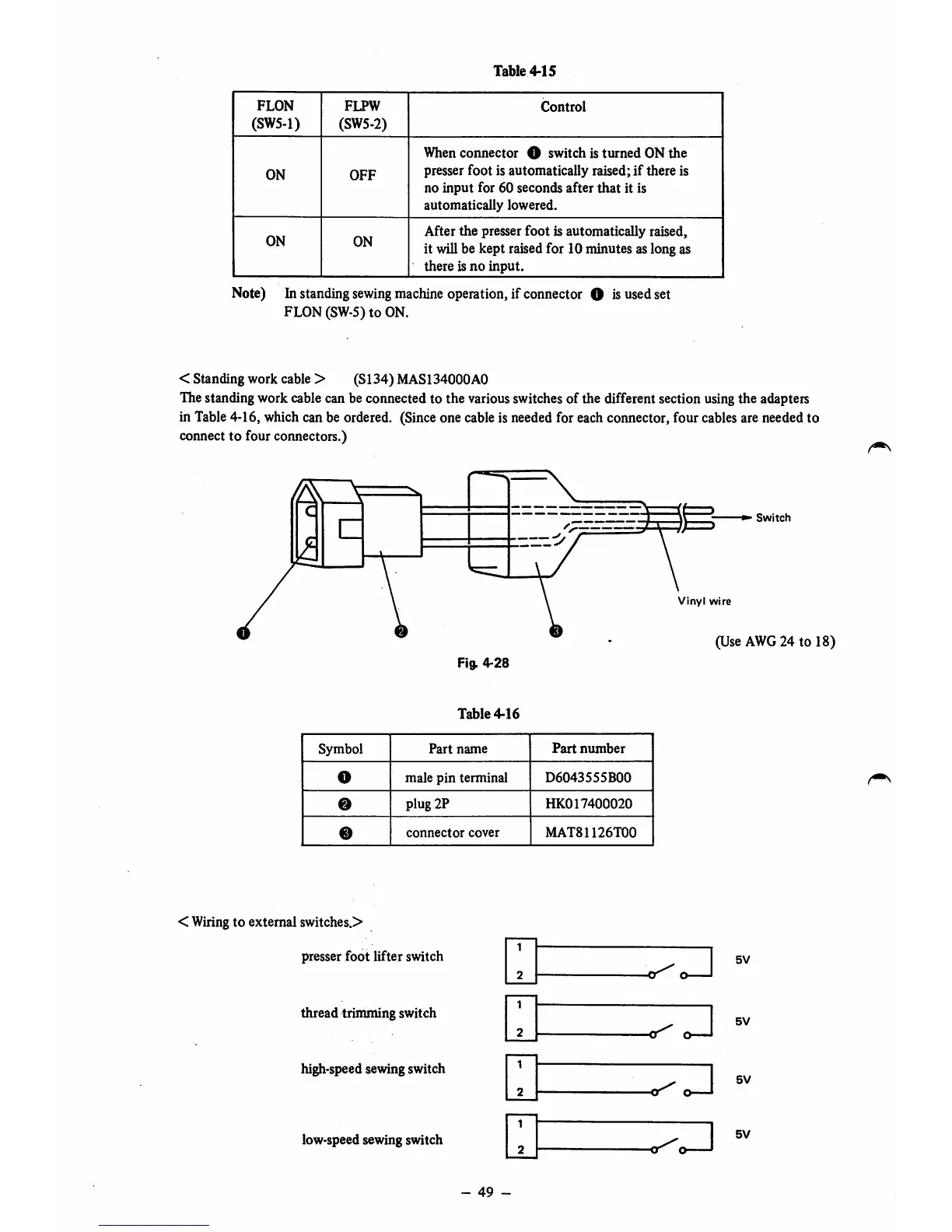

< Standing work cable > (S134) MAS134000AO
The standing work cable can be connected to the various switches of the different section using the adapters
in Table 4-16, which can be ordered. (Since one cable is needed for each connector, four cables are needed to
connect to four connectors.)
Fig. 4-28
Table 4-16
Symbol Part name
Part number
O
male pin terminal
D6043555B00
o
plug 2?
HKO17400020
e
connector cover
MAT81126T00
< Wiringto external switches.>
presser foot lifter switch
thread trimming switch
high-speed sewing switch
low-speed sewing switch
49 -
Switch
Vinyl wire
(Use AWG 24 to 18)
5V
5V
5V
