– 43 –
™™
™™
™

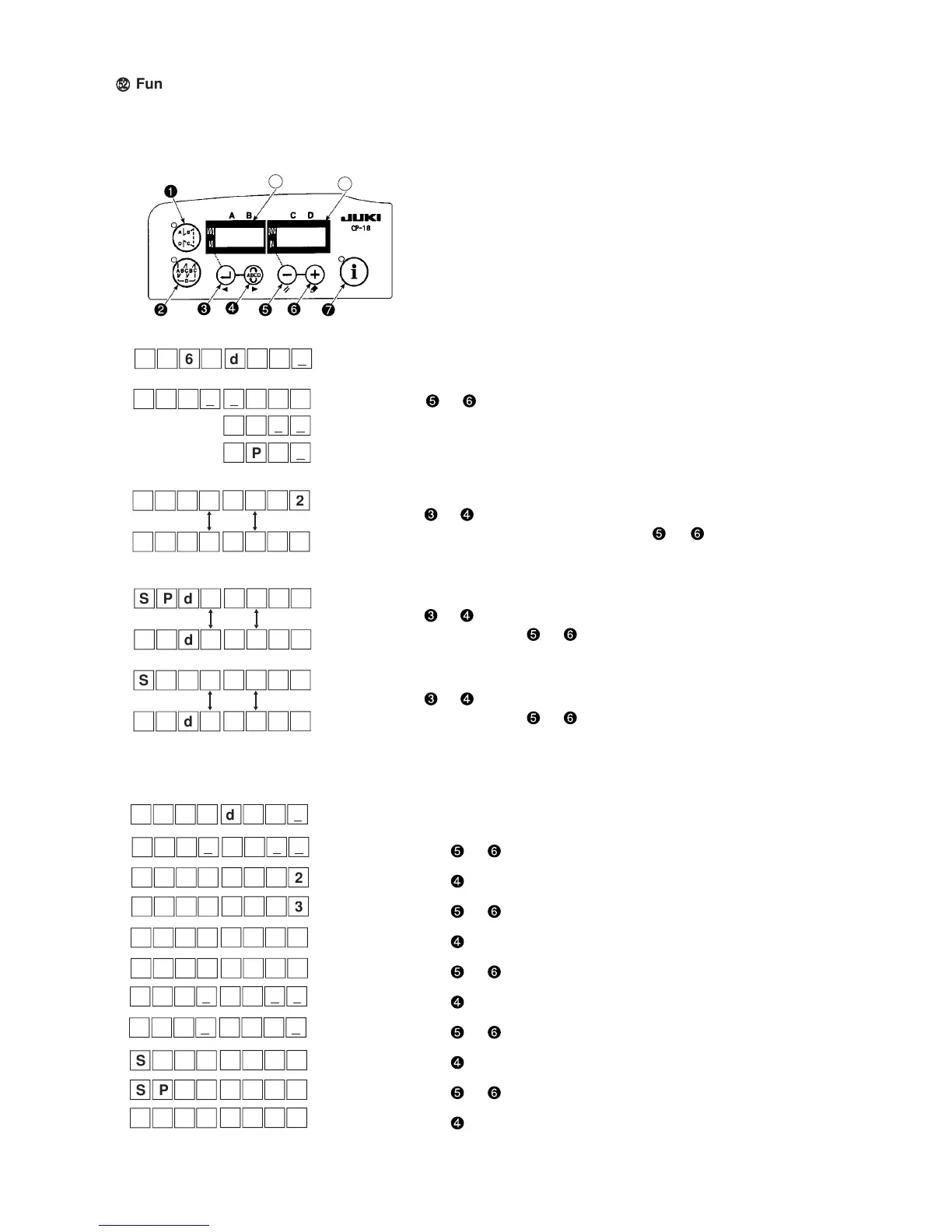

Function of limiting alternate vertical speed (Function setting Nos. 162 and 163)
Maximum speed is limited in accordance with the alternate vertical moving amount.
Speed is limited by a lower speed limit resulting from comparing with a speed limit that is specific to a machine
head.
Refer to the instruction manual of the machine head to be used for the machine-head-specific speed limit.
Select function No. 162 for operation methods of function settings 1 to 3.
Use the key or to select “_End”, “dL_ _”, or “SPd_”.
[When “dL” is selected] (only for LU-2200VR type machine head)
Use the key or to select the alternate vertical moving amount, 1 or 2, after
“dL1” appears on the indicator A. Use the key or to enter the alternate
vertical moving amount.
[When “SPd” is selected] (for LU-2200VR type machine head)
Use the key or to select the setting speed, 1 or 2, after “Spd1” appears on
the indicator A. Use the key or to specify the speed to be set.
[When “SPd” is selected] (for the heads other than the above )
Use the key or to select the setting speed, 1 to 4, after “Spd1” appears on
the indicator A. Use the key or to specify the speed to be set.
Setting examples (for LU-2200VR type machine head)
The speed is set to 3500 sti/min for alternate vertical moving amount 3, and the speed is set to 1500 sti/min
for alternate vertical moving amount 5.
1. Select function No. 162 for operation methods of function settings 1 to 3.
2. Use the key or to select the “dL” item.
3. Use the key to select “dL1”.
4. Use the key or to set the value of dL1 to “3”.
5. Use the key to determine the set value and select “dL2”.
6. Use the key or to set the value of dL2 to “5”.
7. Use the key to determine the set value.
8. Use the key or to select the “SPd” item.
9. Use the key to select “SPd1”.
10. Use the key or to set the value of SPd1 to “3500”.
11. Use the key to determine the set value and select “SPd2”.
A
B
To Next Page
