JUMO 703041 - 3 Mounting; Mounting Site and Climatic Conditions; Dimensions; Type 703044

11
3 Mounting
3.1 Mounting site and climatic conditions
The conditions on the mounting site must meet the requirements specified in the
technical data. The ambient temperature on the mounting site can be from 0 to 55 °C,
with a relative humidity of not more than 90 %.

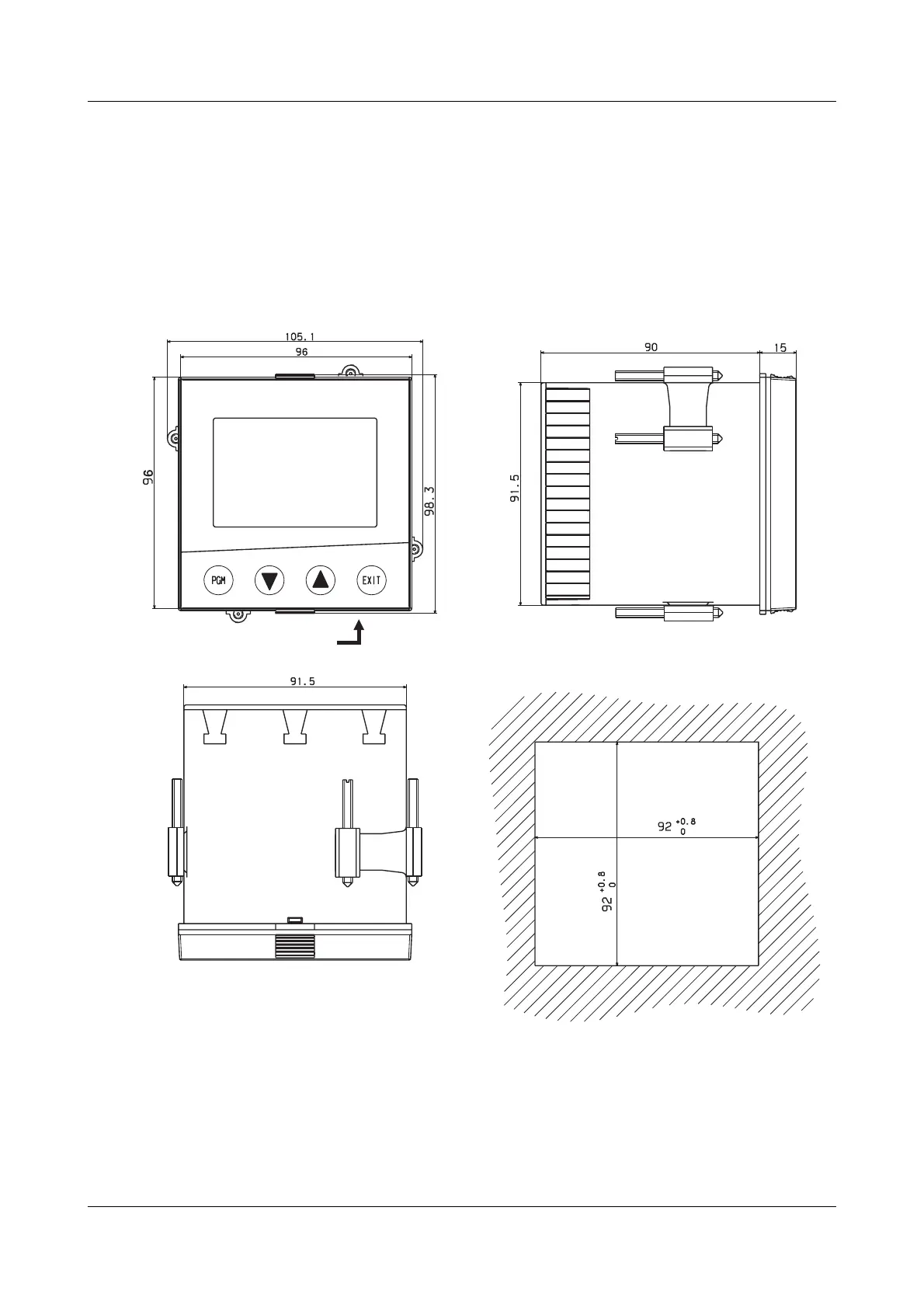

3.2 Dimensions
3.2.1 Type 703044
Setup plug
Panel cut-out
