25
5 Operation

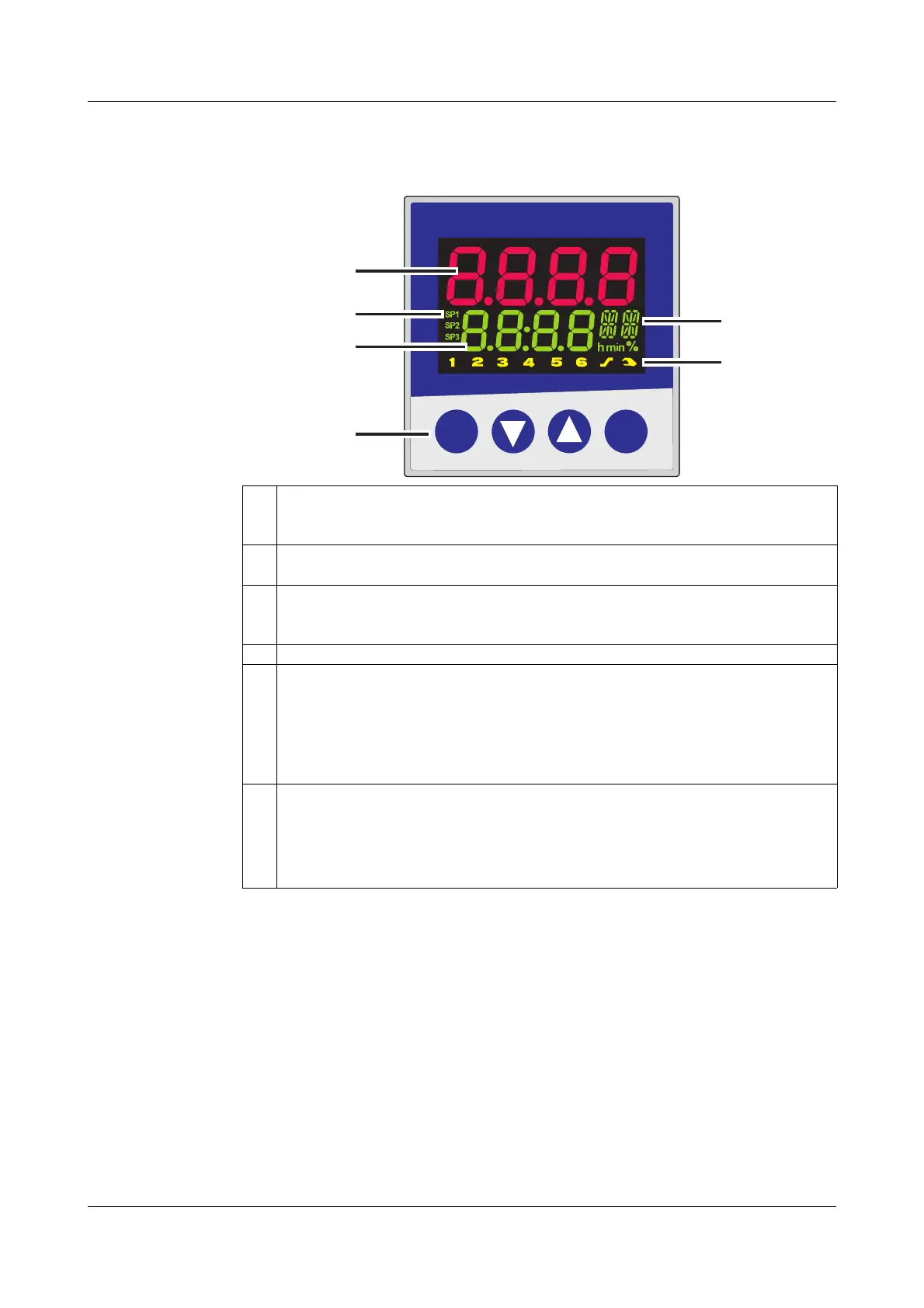

5.1 Displays and controls
The displays are configurable.
v Chapter 8.7 “Display “diSP””
(1) 7-segment display (factory setting: process value)
four-digit, red, decimal place is configurable
(automatic adjustment on display overflow)
(2) Active setpoint (factory setting: SP1)
SP1, SP2, SP3, SP4 (SP=setpoint); green;
(3) 7-segment display (factory setting: setpoint)
four-digit, green; decimal place is configurable;
also used for operator prompting (display of parameter and level symbols)
(4) Keys
(5) Indication
yellow, for
- switch status of binary outputs 1—6 (display lights up = on)
- ramp/program function is active
- manual operation is active
(6) 16-segment display for the unit °C/°F and text
two-digit, green; configurable; symbols for h, min, %
In addition, the current segment number (program), the parameter set or any
two-place letter/number combination can be displayed through the setup
program.
PGM
EXIT
(1)
(3)
(2)
(6)
(4)
(5)
