5 Operation
26

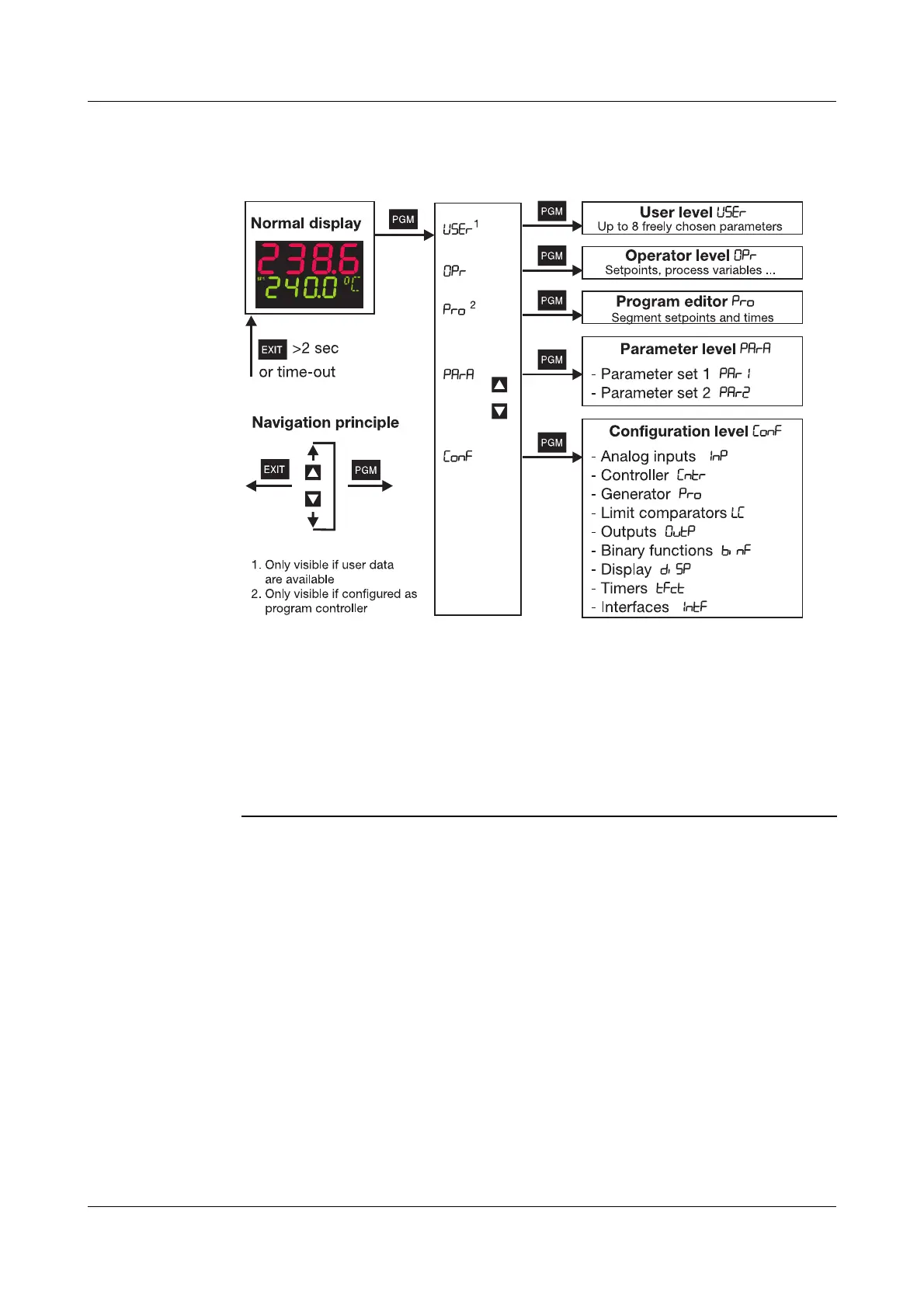

5.2 Level concept
The parameters for making the settings on the instrument are arranged at different
levels.
v Chapter 6 “Operator level”
v Chapter 7 “Parameter level”
v Chapter 8 “Configuration”
v Setup/Display - Operation/Time-out
User data “USEr” The setup program can be used to display and edit up to 8 freely chosen parameters
at this level.
v Setup / Configuration level / Display - Operation / User data
The user can assign a symbol for the representation of each parameter. Otherwise the
default symbol will be used. Permissible symbols are the letters and numbers that can
be presented by a 7-segment display.
H
Time-out
If no key is pressed for 180sec, the instrument returns to normal display.
