45
8 Configuration
8.2 Controller “Cntr”
Cntr: Controller
The following are set here: controller type, input variables of the controller, the setpoint
limits, conditions for manual mode and the presettings for autotuning (self-
optimization).
Configuration
Analog inputs
Controller
Generator
Limit comparators
Outputs
Binary functions
Display
Timer
Interfaces
Symbol Value/selection Description
Configuration
Controller type
CtyP
0
1
2
3
4
no function
2-state controller
3-state controller
Modulating controller
Continuous controller

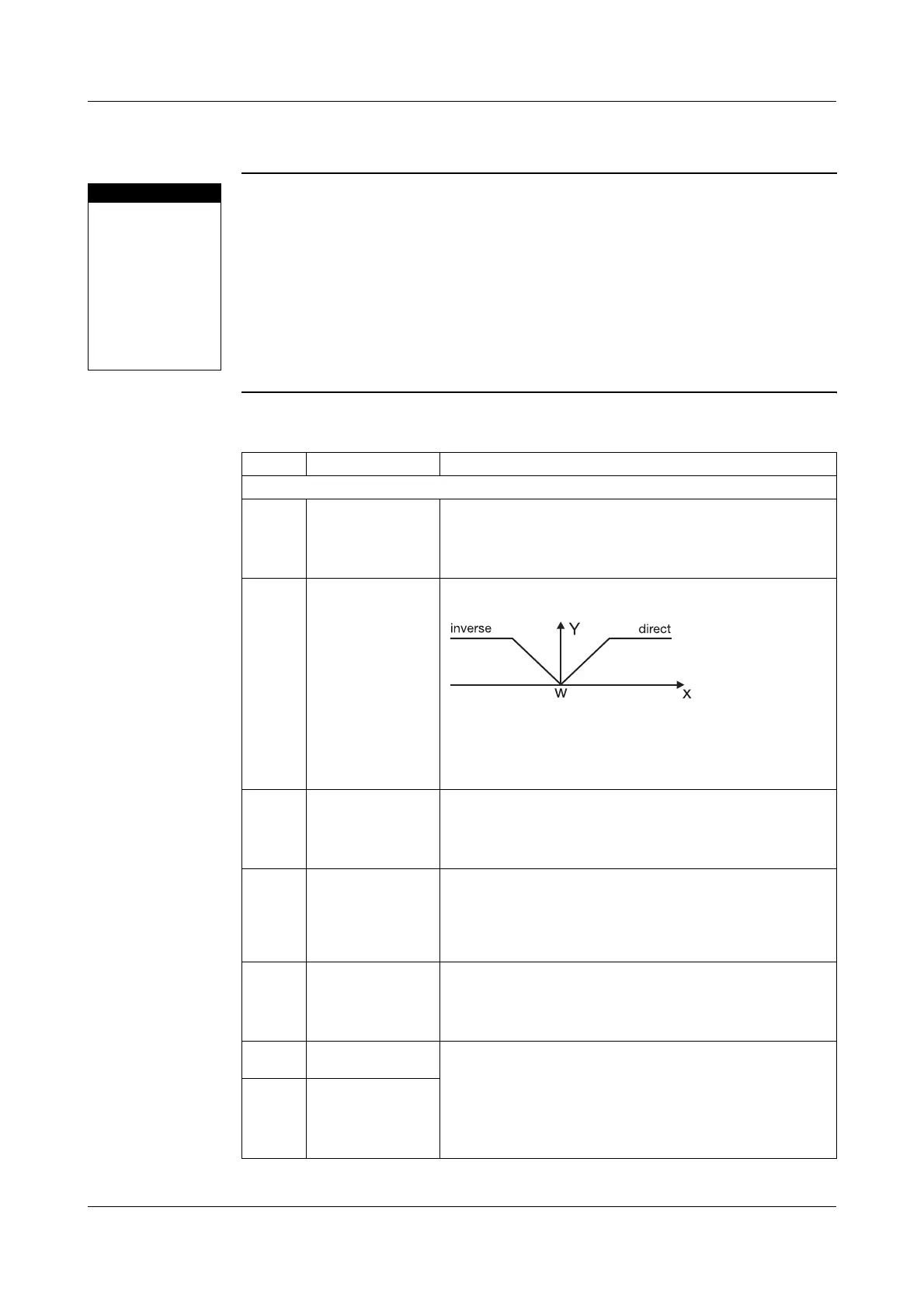

Control action
CAct
0
1
Direct
Inverse
inverse:
The controller output Y is > 0 when the process value is
smaller than the setpoint (e. g. heating).
direct:
The controller output Y is > 0 when the process value is larger
than the setpoint (e. g. cooling).
Inhibit manual mode
InHA
0
1
enabled
inhibited
If the manual mode is inhibited, changing over to “manual” is
not possible from the keys or via the binary input.
Manual output
HAnd
-100…101 Defines the controller output level after changing over to
manual mode.
101 = last output
For modulating controller:
101 = actuator is stationary;
0 = actuator closes; 100 = actuator opens
Range output
rOut
-100…0…101 Output on over/underrange.
101 = last output
For modulating controller:
101 = actuator is stationary;
0 = actuator closes; 100 = actuator opens
Setpoint low
SPL
-1999…+9999 Setpoint limiting prevents the input of values outside the
defined range.
Setpoint high
SPH
-1999…+9999
Factory settings are shown bold.
H
The setpoint limits are not effective with setpoint input
via the interface.
The correction value is limited for external setpoint with
correction.
