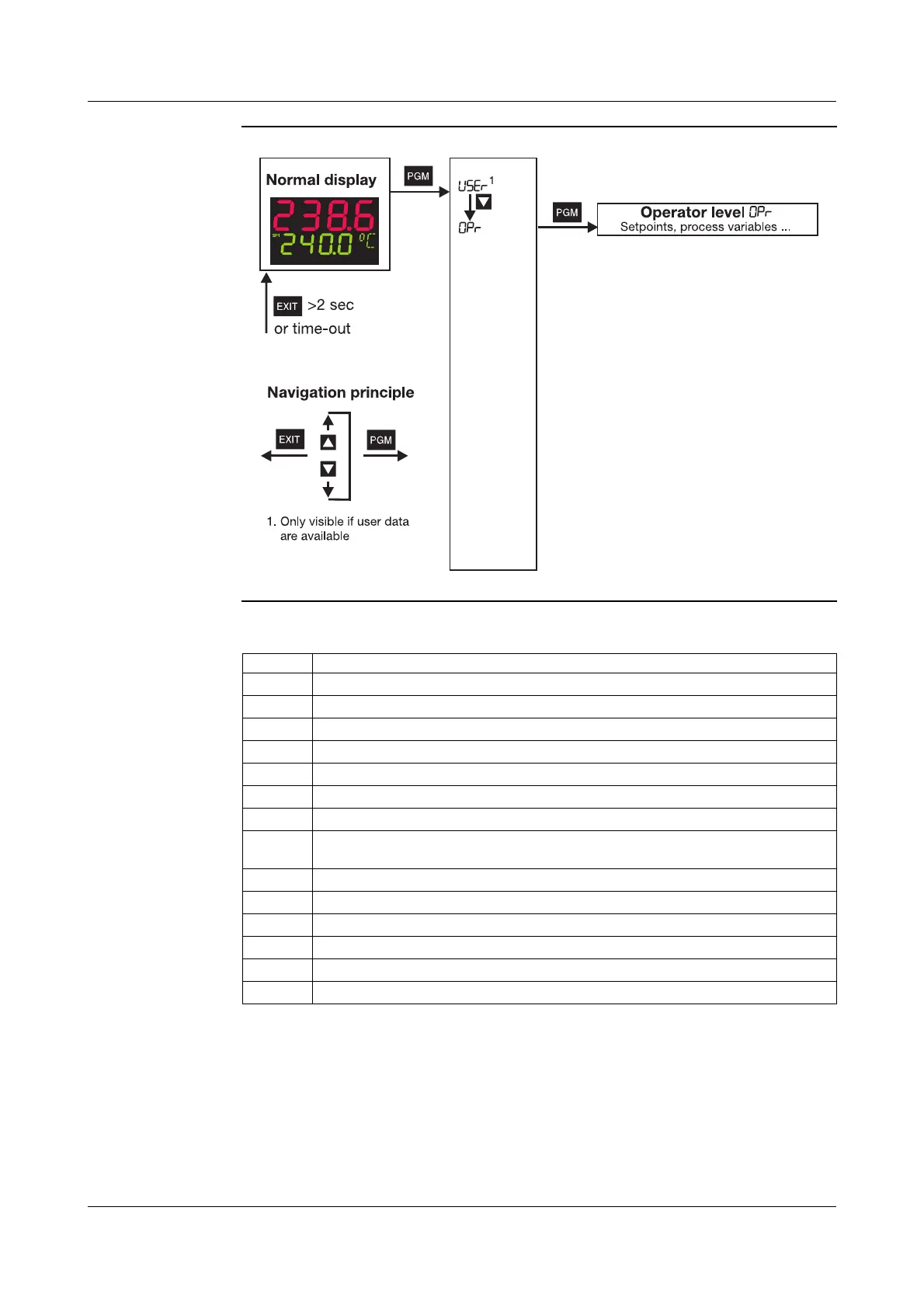

6 Operator level
Access
The four setpoints are displayed and edited here, and additional process variables are
shown in accordance with the configuration.
Symbol Meaning
SP 1
Setpoint 1 (editable)
SP 2
Setpoint 2 (editable)
SP 3
Setpoint 3 (editable)
SP 4
Setpoint 4 (editable)
SPr
Ramp setpoint (only if configured)
InP1
Measurement of analog input 1
InP2
Measurement of analog input 2 (only if available)
F1
Calculated result of math formula 1
(and for difference, ratio and humidity controller)
F2
Calculated result of math formula 2 (only if available)
y
Controller output
trun
Program run time (only with program controller/generator)
trES
Residual program time (only with program controller/generator)
t1
Timer run time 1 (only if configured)
t2
Timer run time 2 (only if configured)
