8 Configuration
56
8.6 Binary functions “binF”
binF: Binary functions
Functions are assigned here to the binary signals of the binary inputs and limit
comparators.
In addition, the functions for control contacts, tolerance limit signal and program end
signal are defined for program controllers/generators.
In the case of a fixed-setpoint controller, functions can be assigned to the ramp end
signals.

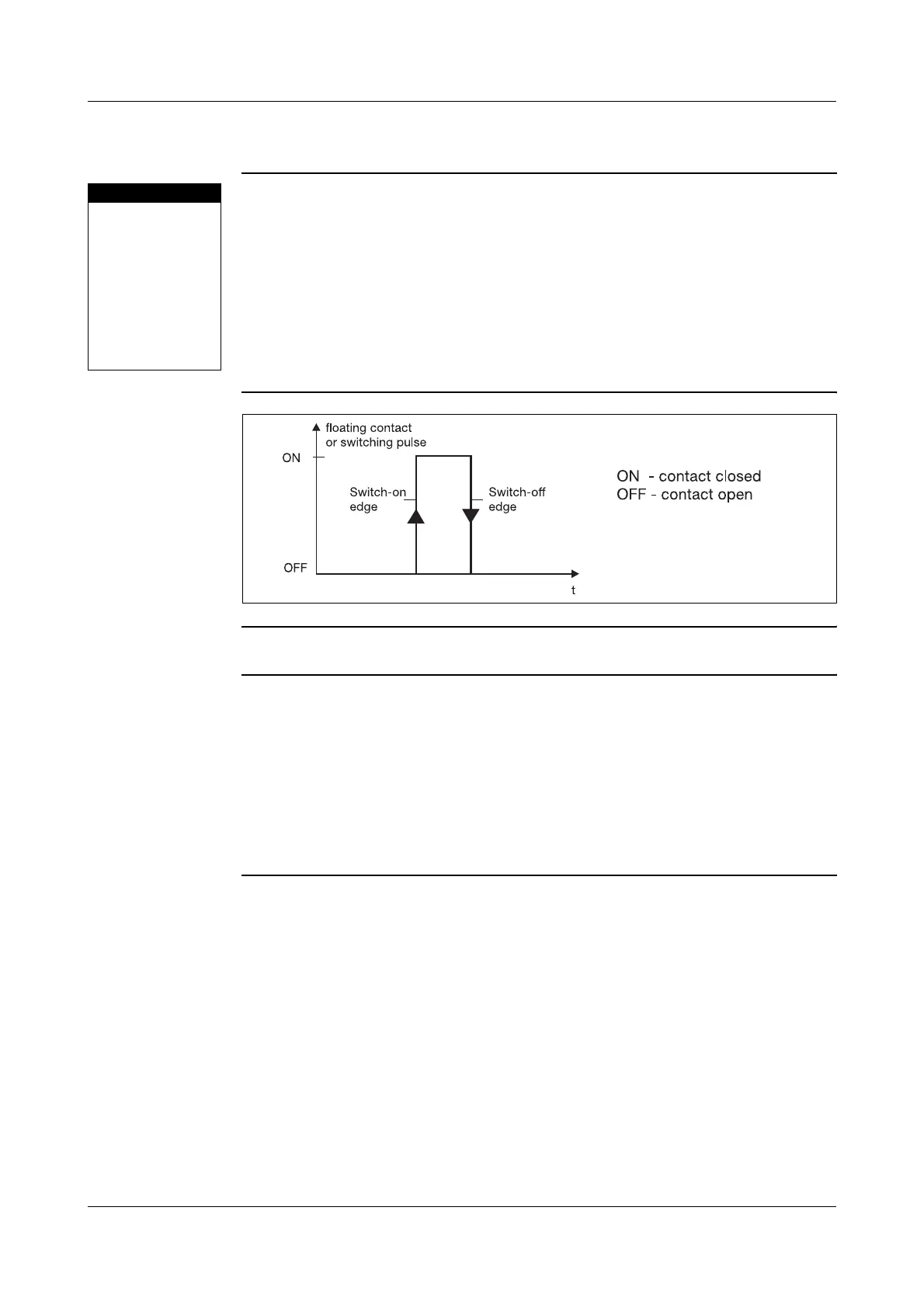

Switching action
The functions are arranged in two groups:
Edge-triggered
functions
The binary function reacts to switch-on edges.
The following functions are edge-triggered:
- Start/stop of autotuning
- Acknowledge limit comparators
- Program start/cancel
-Start timer
- Segment change
State-triggered
functions
The binary function reacts to switch-on or switch-off states.
- All remaining functions
Configuration
Analog inputs
Controller
Generator
Limit comparators
Outputs
Binary functions
Display
Timer
Interfaces
