5 Operation

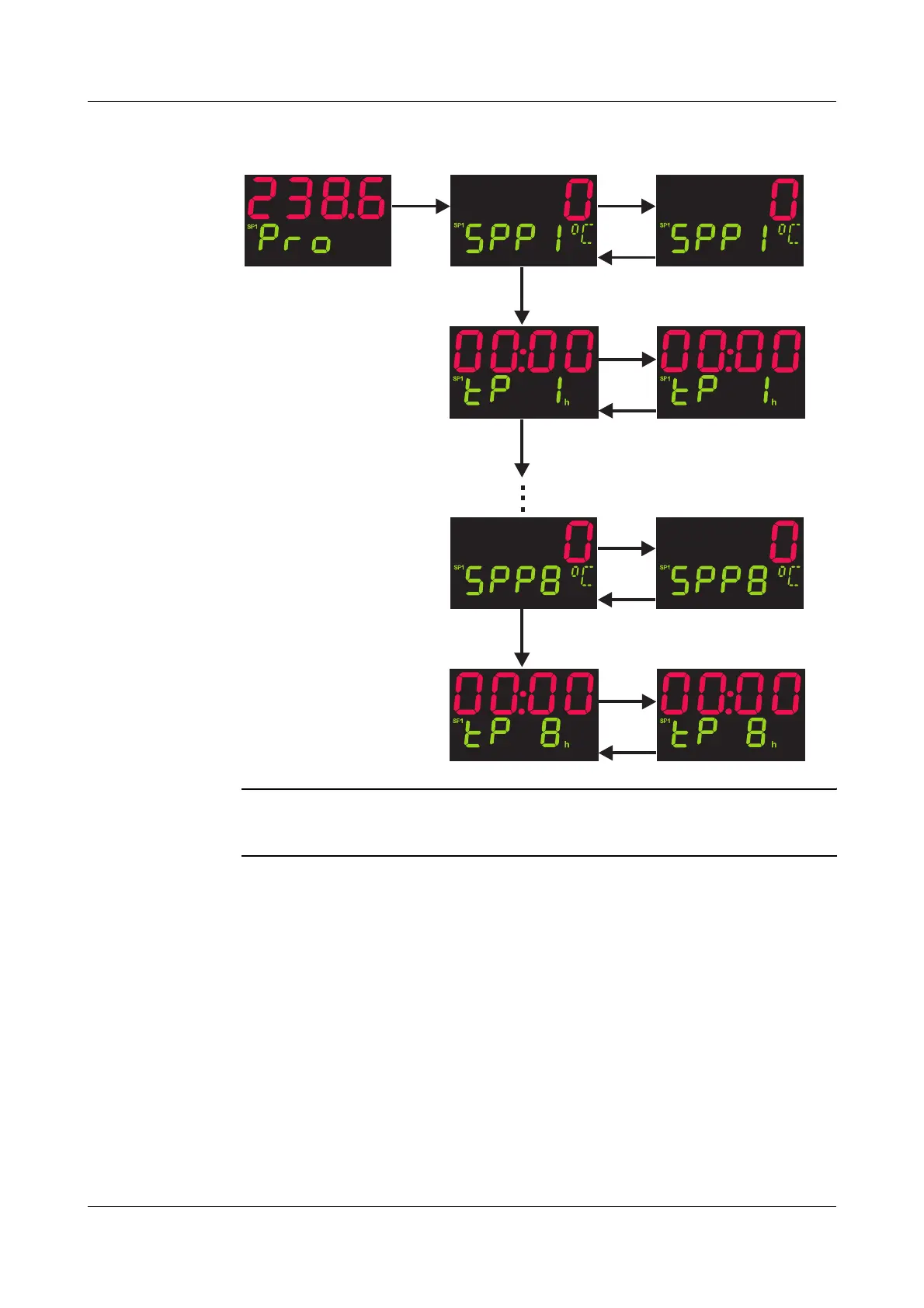

The program segments (up to eight) are defined by the segment setpoint and the seg-
ment time.
Entry through
setup program
The setup program (accessory) features a user-friendly program editor, with a
graphical presentation of the program profile.
Additional
functions via the
setup program
- Start at the process value
- Response to over/underrange
- Repeat program
- Setpoint input (ramp/step)
- Process is controlled to the most recent setpoint
- Delay time
- Program editor/management with graphical preview
- Up to four control contacts can be programmed segment by segment
- Parameter sets can be assigned segment by segment
