8 Configuration
40
Analog selector With some parameters, you can choose from a series of analog values. To provide you
with an overview, this selection is listed below.
0 no function 21 program run time in sec
1 analog input 1 22 residual program time in sec
2 analog input 2 23 segment run time in sec
3 process value 24 residual segment time in sec
4 present setpoint 25 timer run time for timer 1 in sec
5 ramp end value 26 timer run time for timer 2 in sec
6 program setpoint 27 residual run time for timer 1 in sec
7 math 1 28 residual run time for timer 2 in sec
8 math 2 29 present segment end value
9 setpoint 1 30 analog marker (Profibus)
10 setpoint 2 31 reserved
13 controller output level 32 reserved
14 controller output 1 33 reserved
15 controller output 2

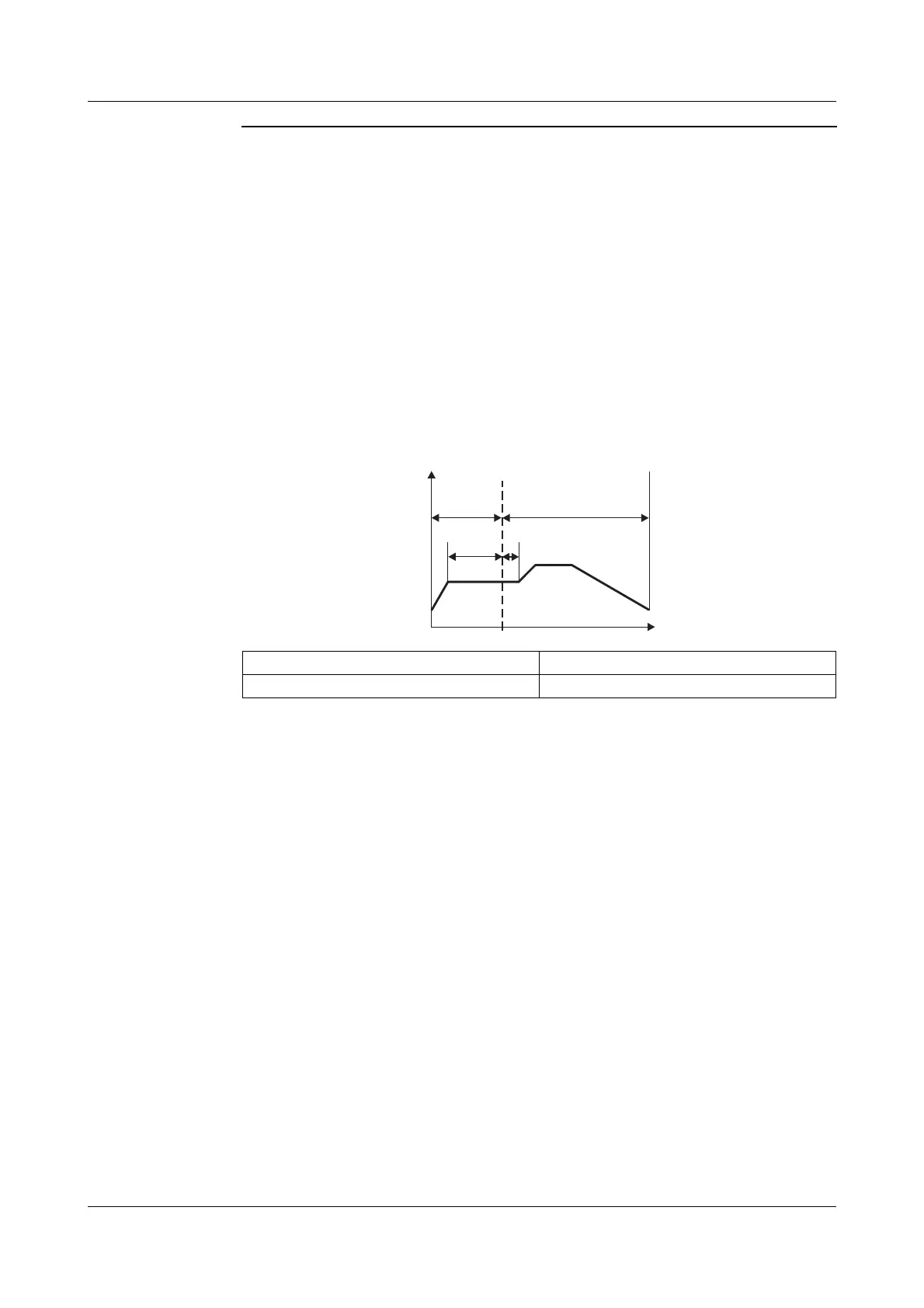

Definition of the program times
(1) Program run time (3) Segment run time
(2) Residual program time (4) Residual segment time
t
x
w
t
(3)
(4)
(2)(1)
