11 Retrofitting of modules
70

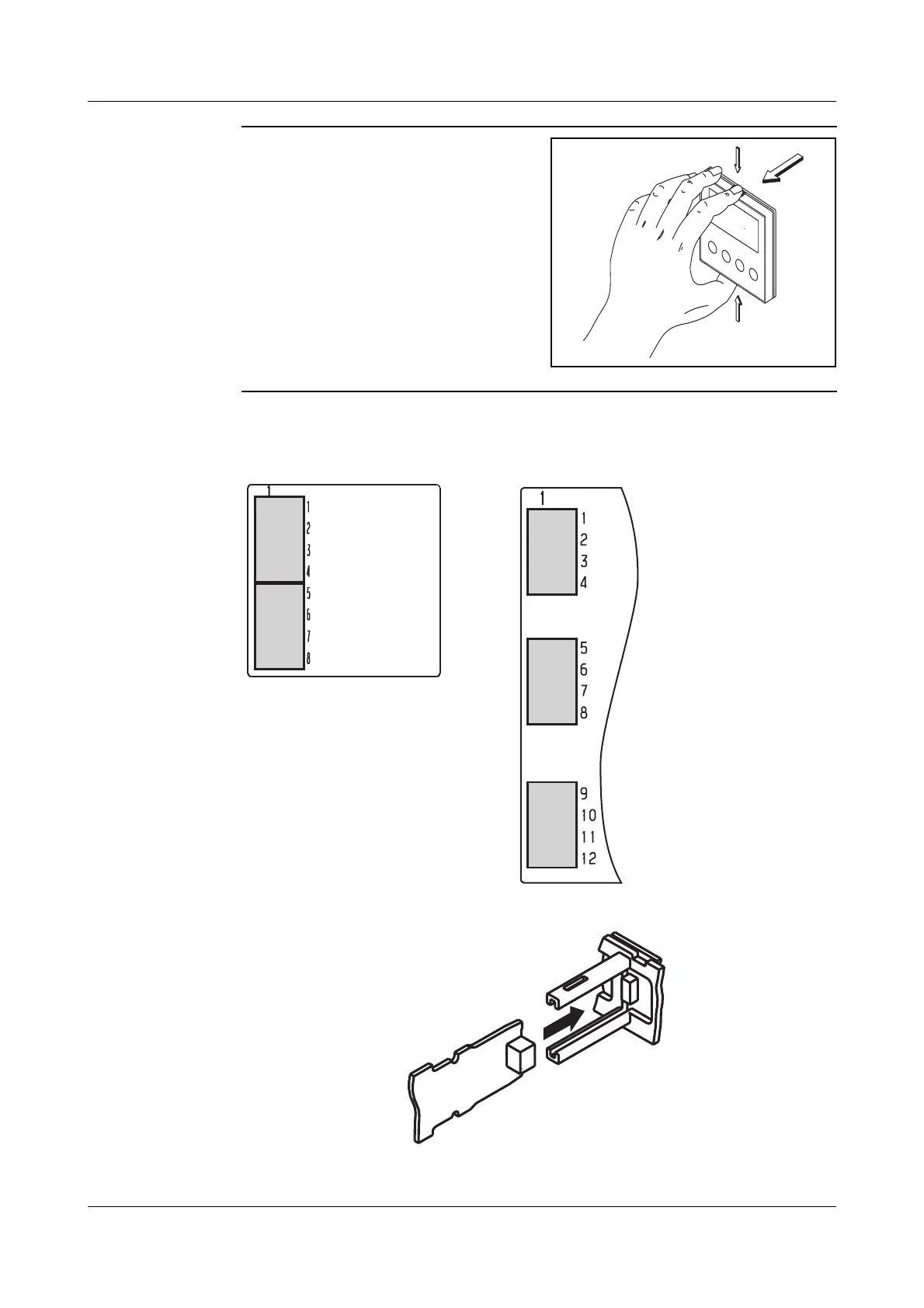

Removing the
controller
module
h Press together the knurled surfaces on
the front panel (top and bottom, or left
and right for landscape format) and pull
out the controller module.
Retrofitting of
modules
h Select the slot for the option
(Observe the restrictions for Type 703041! (see connection diagram))
h Push the module into the slot until the plug connector snaps into place
h Push the module into the housing until the lugs snap into their slots
Option 1
Option 2
Option 1
Option 2
Option 3
Type 703041
Type 703042/43/44
H
On Type 703041, relays
can only be retrofitted in
option slot 1!
