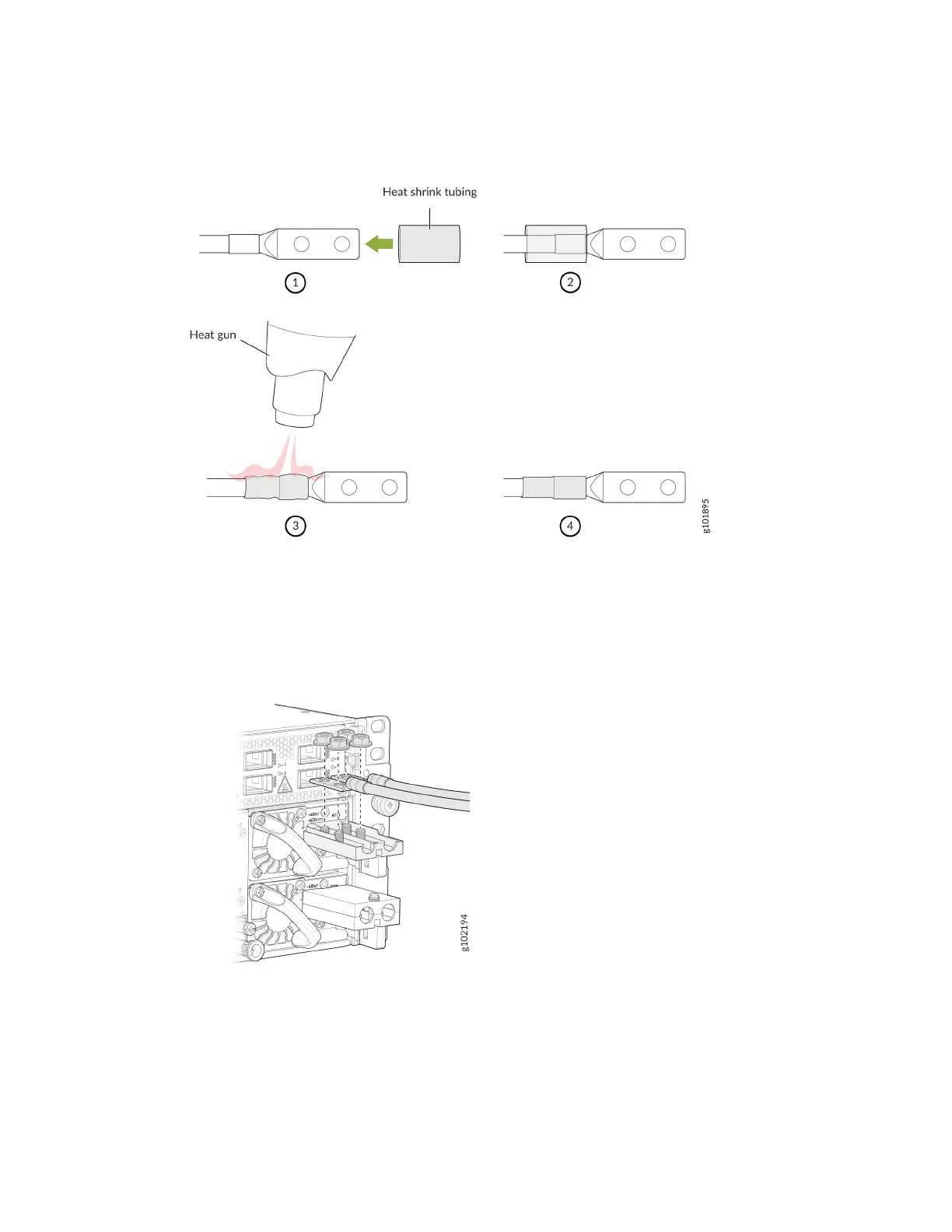

Figure 40: How to Install Heat-Shrink Tubing
6. Remove the nuts from the four terminals. See Figure 41 on page 85.
Figure 41: Removing the Nuts from the Terminals
7. Secure each power cable lug to the terminal with the nuts. Tighten the nuts on the power supply
terminals unl snug by using the screwdriver. Do not apply vercal force while ghtening the
screws. Do not overghten the nuts. (Use a socket nutdriver.)
85
