JVC CL-S500 Series

- 34 -

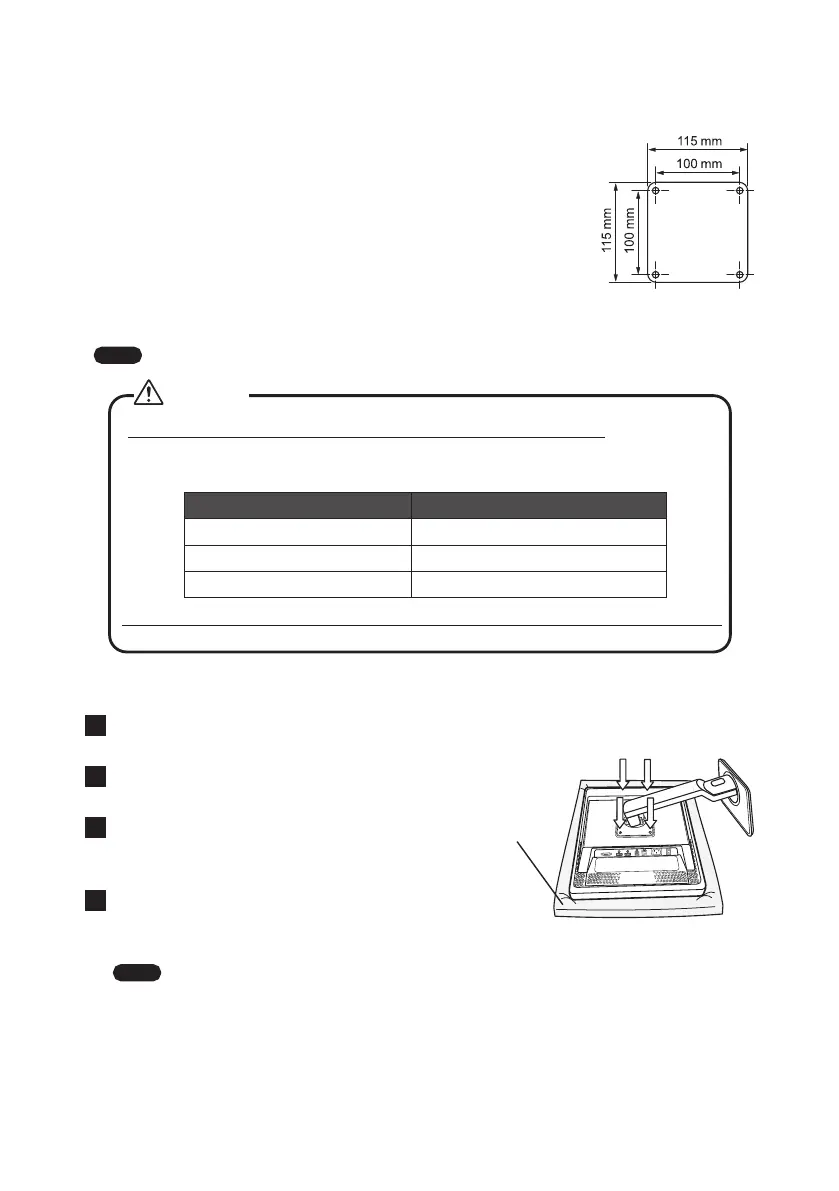

Attaching an arm stand
The tilt stand is interchangeable with commercially available
arms.
After checking the specications of the arm to be used, pay
attention to the following points when selecting.
• Come with a mount plate with 4 slotted screw holes at
100 mm × 100 mm, and
• Bear the total weight of the LCD panel (without the stand) and
the cables connected to it. For more information, ask the arm
maker.
Note
Use the original screws to use the LCD panel back on its original tilt stand.
Select the screw size carefully according to the plate thickness. If the screws
are too long, they could damage the internal parts. If they are too short, the
connection becomes loose and the monitor could fall o.
Mounting plate thickness Screw size
3.5
–
4.5 mm ISO M4 × 12
1.5
–
3.5 mm ISO M4 × 10 (Originally used)
Below 1.5 mm ISO M4 × 8
Note: We are not liable for any damage or injury resulting from replacing stands.
Caution
How to attach an arm stand
1
Place a soft cloth or cushioning material over a stable even surface to prevent
scratches on the screen.
2
Place the monitor on the soft cloth with
the screen face down.
3
Remove the stand. (Use a Phillips head
screwdriver to remove the four screws
indicated by the arrows in the gure.)
4
Attach the monitor unit to the arm.
(Perform in the reverse order of
removing the arm.)
Note
When attaching the monitor to an arm that has already been xed, be sure
to carry out the work with two or more people to ensure safety. If the
monitor falls or topples, it can result in injury or monitor malfunction.
Cushioning
material
