- 5 -

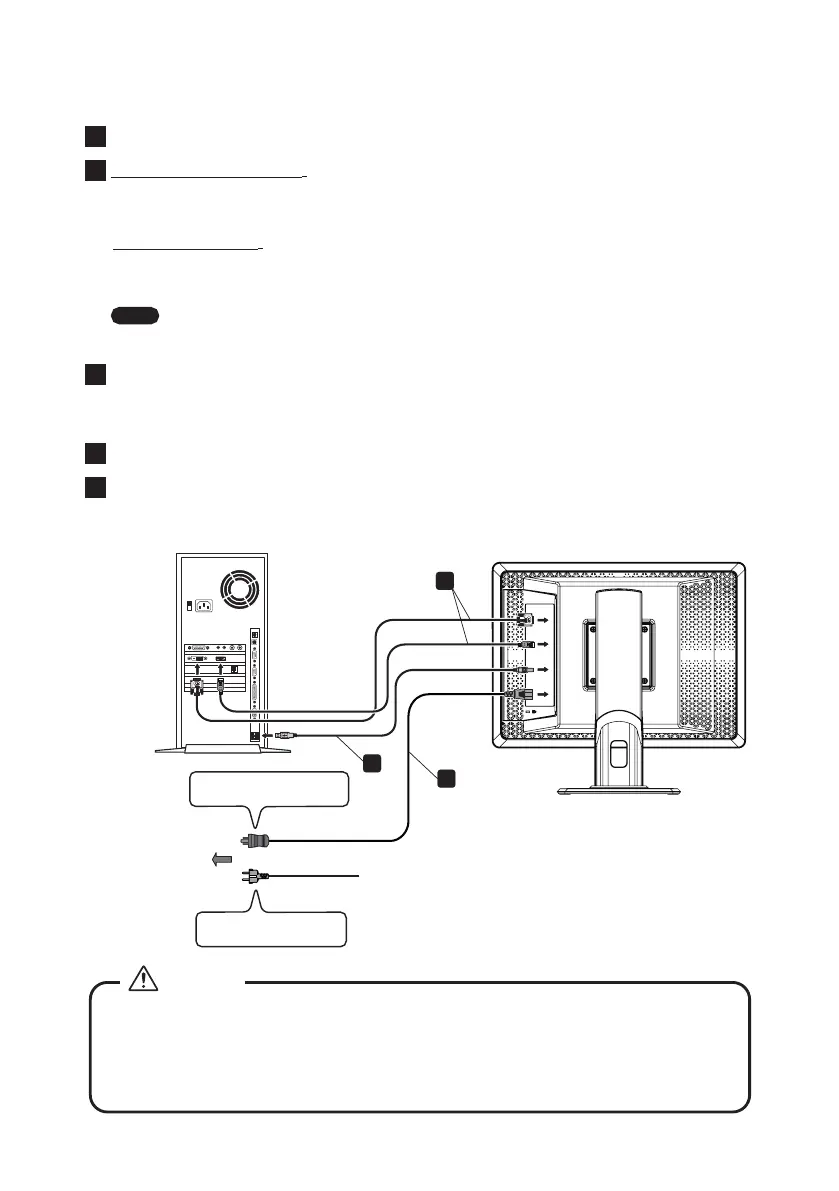

Connecting the cables
1
Turn o the workstation.
2
DisplayPort connection
:
Connect the supplied DisplayPort cable between the monitor’s DisplayPort IN and
the workstation’s DisplayPort connector.
DVI-D connection
:
Connect a Dual Link DVI cable between the monitor’s DVI-D and the workstation’s
DVI output connector.
Note
Supplied cable use is recommended. If you do not use it, the monitor may
become unstable and the screen may icker.
3
Connect the provided USB cable to the “UP” stream port on this product and the
“DOWN” stream port on the workstation (or other USB hub) when the product is
controlled (conguration change or quality control) by the workstation.
4
Connect the supplied power cable between the AC inlet and the wall outlet.
5
Turn on the monitor and the workstation.
AC IN
2
4
3
DisplayPort cable
or DVI cable
For use in the U. S.
For use in Europe
- This product is intended to be connected to an IEC 60601-1 certified device
and medical electrical system. To use this monitor without connecting to such a
device, it needs to be evaluated according to the requirements of IEC 60601-1.
- Use the supplied power cord only.
Caution
Workstation
Back of the monitor
To the wall outlet
To Next Page
