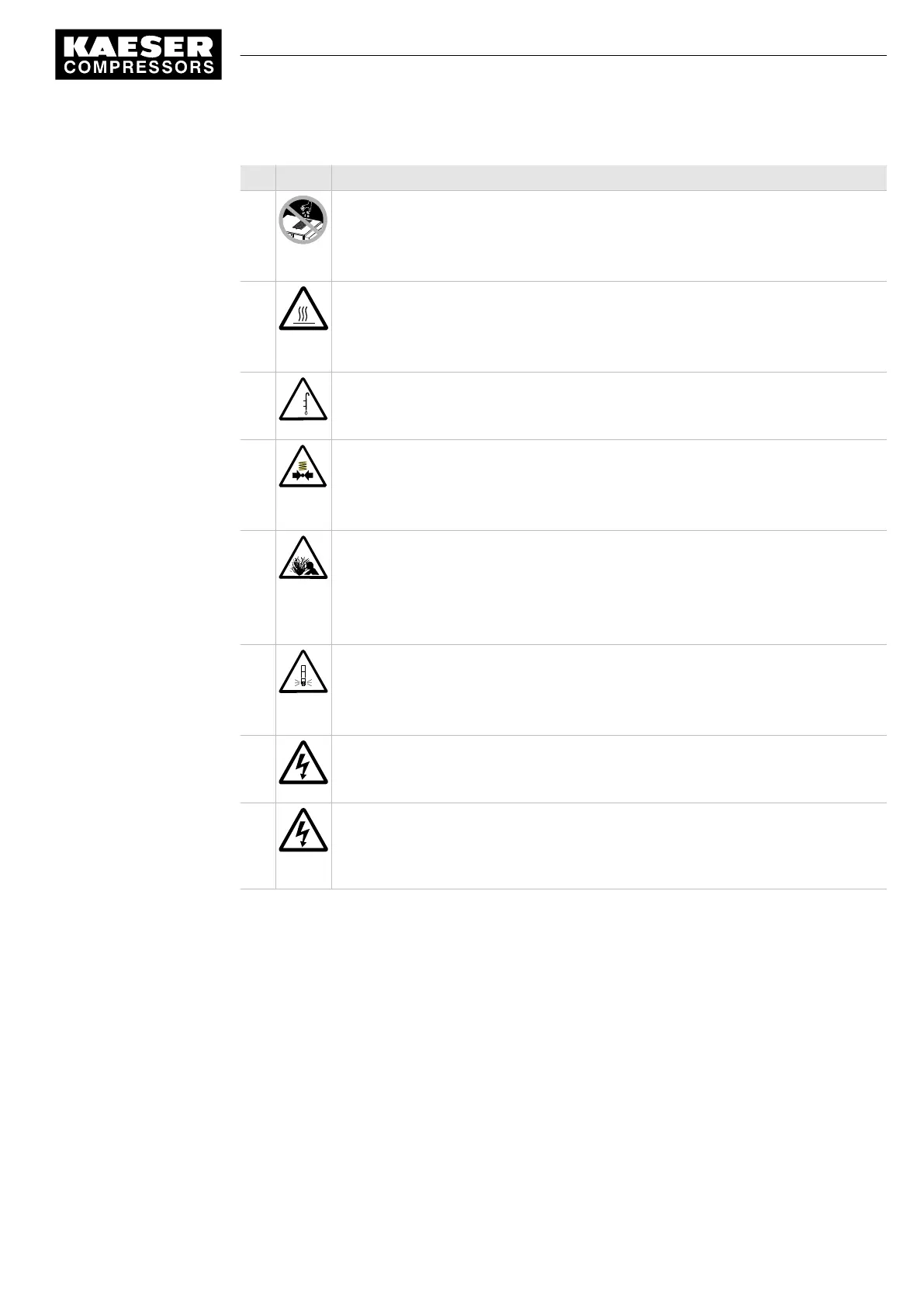

Item Symbol Meaning
12 Rejected parts!
Severe injury, especially of the eyes, could result while the fan is rotating.
➤ Prevent all materials from falling into the fan guard.
➤ Never work over the running machine.
13 Hot surface can cause burns!
➤ Let the machine cool down.
➤ Wear long-sleeved garments (not synthetics such as polyester) and protective
gloves.
16
max.
min.
Wrong cooling oil level can cause machine defects or rising oil consumption (oil con‐
tent for pure air)!
➤ Check the oil level regularly and top up as necessary.
23 Serious injury or death can result from loosening or opening component that is under
pressure and heavily spring loaded!
➤ Do not open or dismantle the valve.
➤ Call for authorized KAESER Service representative if a fault occurs.
24 Serious injury or death can result from loosening or opening component under pres‐
sure!
➤ De-pressurize all pressurized components and enclosures.
➤ Secure that machine keeps de-pressurized.
➤ Check that machine is de-pressurized.
25 Ear damage and burns can result from loud noise and/or oil mist when the safety relief
valve opens!
➤ Wear ear protection and protective clothing.
➤ Close all access doors and cover panels.
27 Risk of electric shock!
If the interrupter has tripped current-carrying components of the controller should be
examined and replaced if damaged to reduce the risk of fire or electric shock.
28 Risk of electric shock!
To maintain overcurrent short-circuit, and ground-fault protection, the manufacturer's
instructions for setting the interrupter must be followed to reduce the risk of fire or
electric shock.
Tab. 31 Safety Signs
3.8 In Emergency
3.8.1 Fire fighting
Suitable extinguishing media
■ Foam
■ Carbon dioxide
■ Sand or dirt
Unsuitable or unsafe extinguishing media
■ Strong water jet
3 Safety and Responsibility
3.8 In Emergency
9_5721 06 USE
Service Manual Screw Compressor
ASD T Tri-Voltage
